Quick Info :
Type: Quad Bridge Class AB Audio Amplifier
Number of Channels: 4
Operating Voltage Range: 6V – 18V (Typical: 14.4V)
Maximum Power Output: 4 x 41W (at 4Ω, 14.4V, 10% THD)
Nominal Output Power: 4 x 25W (at 4Ω, 14.4V, 1% THD)
Load Impedance: 4Ω to 8Ω
Rs 650.00
Quick Info :
Transistor Type: NPN Darlington
Voltage Ratings:
Collector-Emitter Voltage (Vce) : 80V
Collector-Base Voltage (Vcb) : 80V
Emitter-Base Voltage (Veb) : 5V
Rs 60.00
Quick Info :
Transistor Type: PNP Darlington
Voltage Ratings:
Collector-Emitter Voltage (Vce): -100V
Collector-Base Voltage (Vcb): -100V
Emitter-Base Voltage (Veb): -5V
Rs 80.00
Quick Info :
Transistor Type: NPN
Collector-Emitter Voltage (Vce): 60V
Collector-Base Voltage (Vcb): 80V
Emitter-Base Voltage (Veb): 5V
Collector Current (Ic): 15A (maximum)
Power Dissipation (Pd): 115W
Rs 340.00
Quick Info :
Transistor Type: NPN Bipolar Junction Transistor (BJT)
Voltage Ratings:
Collector-Emitter Voltage (Vce): 60V
Collector-Base Voltage (Vcb): 60V
Emitter-Base Voltage (Veb): 5V
Rs 45.00
Quick Info :
Transistor Type: PNP Bipolar Junction Transistor (BJT)
Voltage Ratings:
Collector-Emitter Voltage (Vce): -100V
Collector-Base Voltage (Vcb): -100V
Emitter-Base Voltage (Veb): -5V
Rs 45.00
Quick Info :
Supply Voltage : ±3V to ±18V
Input Bias Current : 5pA
Input Offset Voltage : 3mV
Slew Rate : 13V/µs
Gain Bandwidth Product : 3MHz
Common-Mode Rejection Ratio (CMRR) : 100dB
Rs 40.00
Quick Info :
C Type : Programmable Shunt Regulator
Reference Voltage : 2.495V
Adjustable Output Voltage : 2.5V to 36V
Maximum Cathode Current : 100mA
Reference Voltage Tolerance : ±0.5%
Rs 20.00
Quick Info :
Output Voltage : 40V
Output Current : 200mA
Supply Voltage Min : 7V
Supply Voltage Max : 40V
Controller IC Case Style : DIP
Rs 60.00
Quick Info :
Supply Voltage : ±22V (Maximum)
Input Offset Voltage : 6mV (Maximum)
Input Bias Current : 500nA (Maximum)
Input Impedance : 2MΩ
Voltage Gain : 200,000
Rs 30.00
Quick Info :
Operating Voltage Range: 8V to 30V
Oscillator Frequency: 100 kHz
Output Voltage: 5V reference (±2%)
Output Drive Current: 200mA
Max. Duty Cycle: 100%
Rs 45.00
Quick Info :
Operating Voltage Range : 7V to 30V
Reference Voltage (Vref) : 5V ± 2% (Stable, Low Drift)
Oscillator Frequency : Adjustable up to 500kHz (Typical 52kHz)
Maximum Duty Cycle : 50%
Startup Current : < 0.5mA (Low Power Startup)
Operating Supply Current : 11mA (Typical)
Rs 85.00
Quick Info:
Transistor Type : 8 NPN Darlington
Current – Collector (Ic) (Max) : 500mA
Voltage – Collector Emitter Breakdown (Max) : 50V
Rs 80.00Rs 95.00
Quick Info :
Collector-Emitter Voltage : 1200 V
Collector Current : 25 A
Collector Current : 50 A
Gate-Emitter Voltage : ±20 V
Collector-Emitter Saturation Voltage : 2.1 V
Rs 390.00
Quick Info :
Transistor Type : NPN Power Transistor
Collector-Emitter Voltage : 60 V
Collector-Base Voltage : 100 V
Emitter-Base Voltage : 5 V
Continuous Collector Current : 15 A
Peak Collector Current : 30 A
Power Dissipation : 115 W
Rs 255.00
Quick Info :
Transistor Type : PNP
Collector-Emitter Voltage : -40V
Collector-Base Voltage : -40V
Emitter-Base Voltage : -5V
Collector Current : -200mA
Power Dissipation : 625mW
Rs 40.00
Quick Info :
Transistor Type: PNP
Power Dissipation (Pd): 150W
Collector Current (Ic): 15A
Rs 690.00
Quick Info :
Transistor Type: NPN
Collector-Emitter Breakdown Voltage (Vceo): 230V
Power Dissipation (Pd): 180W
DC Current Gain (hFE@Ic,Vce): 70@5A,4V
Collector Current (Ic): 17A
Rs 690.00
Quick Info :
Logic Type : AND Gate
Number of Circuits : 4
Number of Inputs : 2
Voltage – Supply : 4.75V ~ 5.25V
Rs 50.00
Quick Info :
IC Type Dual D-Type : Flip-Flop
Logic Family : 74 TTL
Supply Voltage : 4.75V to 5.25V
Input Voltage : 0V to 5V
Output Voltage : 0V to 5V
Clock Frequency : 30 MHz
Rs 60.00
Quick Info :
Output Voltage: 3.3V
Space Saving SOT-223 Package
Current Limiting and Thermal Protection
Output Current 800mA
Rs 40.00Rs 50.00
Quick Info :
Output Voltage: 5V
Space Saving SOT-223 Package
Current Limiting and Thermal Protection
Output Current 800mA
Rs 40.00
Quick Info :
High Performance, Low Power Design
8-Bit Microcontroller Atmel AVR advanced RISC architecture
Operating voltage:1.8 – 5.5V
Operating temperature range:40°C to 85°C
Rs 1,290.00
Quick Info :
CPU Speed : 20MHzProgram Memory Size : 8KBRAM Memory Size : 512ByteNo. of Pins : 8 Pins
Rs 690.00
Quick Info :
Transistor Type: PNP Bipolar Junction Transistor (BJT)
Voltage Ratings:
Collector-Emitter Voltage (Vce): -45V
Collector-Base Voltage (Vcb): -50V
Emitter-Base Voltage (Veb): -5V
Rs 10.00
Quick Info :
Transistor Type: NPN
Voltage Ratings:
Collector-Emitter Voltage (Vce): 80V
Collector-Base Voltage (Vcb): 80V
Emitter-Base Voltage (Veb): 5V
Rs 45.00
Quick Info:
Type : N-Channel Enhancement MOSFET
Drain-Source Voltage : 60V
Continuous Drain Current : 500mA
On-State Resistance : 5Ω @ Vgs 10V
Package : TO-92
Rs 40.00Rs 80.00
Quick Info :
Model : BTA24
Current Rating : 25A RMS
Voltage Rating : 600V or 800V
Gate Trigger Current : 50mA
Holding Current : 50mA
Surge Current : 250A
Repetitive Peak Off-State Voltage : 600V/800V
Rs 140.00

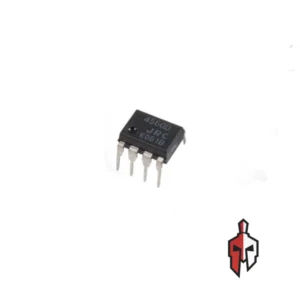

Quick Info :
Model : C4560
Package Type : DIP-8 / SOP-8
Number of Channels : 2
Supply Voltage : ±2V to ±18V
Input Offset Voltage : ≤ 2 mV
Input Bias Current : ≤ 50 nA
Rs 90.00
Quick Info :
Model : CD4013B
Technology : CMOS
Package Type : DIP-14 / SOIC-14
Number of Flip-Flops : 2
Supply Voltage : 3V to 15V
Input High Voltage : ≥ 0.7 × Vdd
Input Low Voltage : ≤ 0.3 × Vdd
Rs 60.00
Quick Info :
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 1
Voltage – Supply : 3V ~ 18V
Rs 80.00
Quick Info :
Type : N-Channel MOSFET
Drain-Source Voltage : 1200V
Continuous Drain Current : 20A (at 25°C)
Pulsed Drain Current : 40A
Gate-Source Voltage : ±30V
Drain-Source On-Resistance : 0.190Ω
Rs 390.00
Quick Info :
Multivibrator Type : Monostable / Astable
Output Current : 2.4mA
Supply Voltage Min : 4.5V
Supply Voltage Max : 15.5V
Rs 90.00
Quick Info:
Type of IGBT Channel: N-Channel
Maximum Power Dissipation (Pc), W: 310
Maximum Collector-Emitter Voltage |Vce|, V: 1200
Collector-Emitter saturation Voltage |Vcesat|, V: 1.48
Maximum Collector Current |Ic|, A: 40
Rs 390.00
Quick Info :
Supply Voltage : 10V – 15.6V
High-Side Floating Supply Voltage : 10V – 15.6V
Maximum Voltage Rating : 600V
Operating Frequency : Adjustable
Dead-Time Control : Adjustable via external components
Rs 200.00
