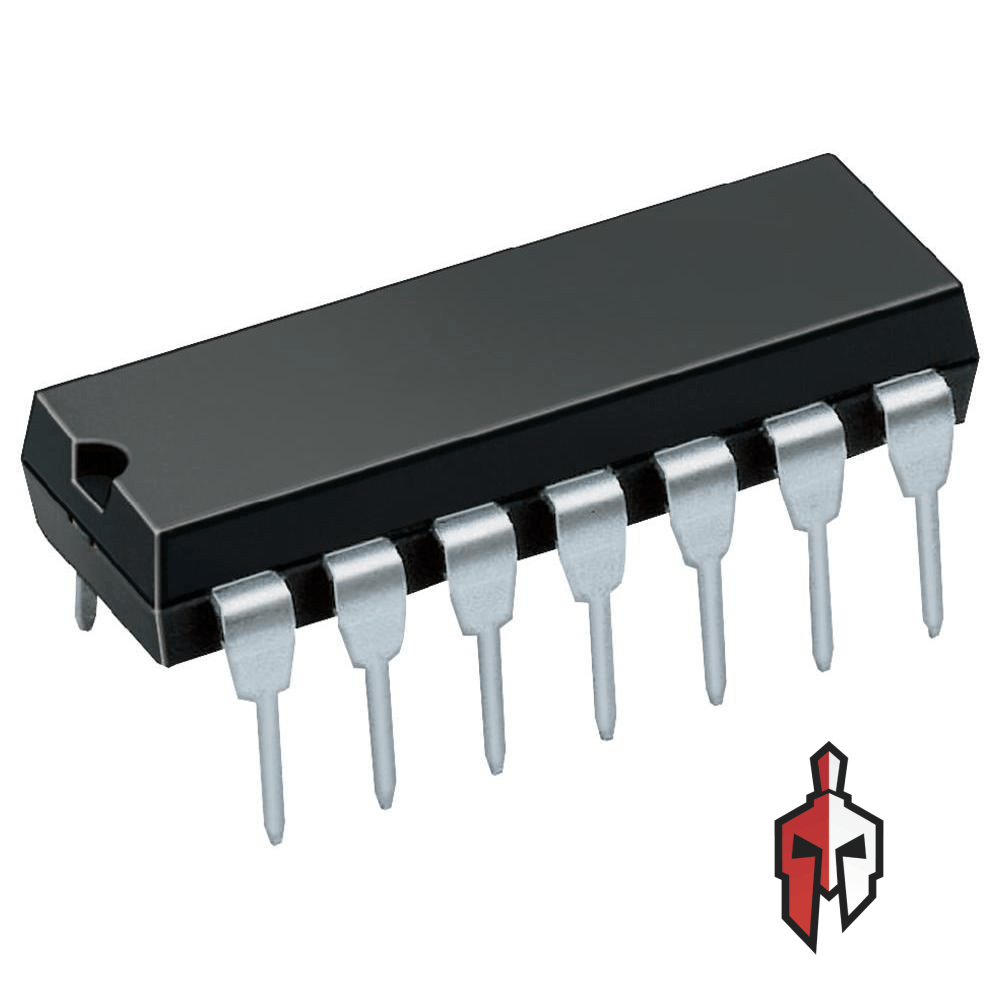

7420 Dual 4-Input NAND Gate

Rs 140.00

Out of stock

Quick Info :

  • Logic Type : NAND Gate
  • Number of Circuits : 2
  • Number of Inputs : 4
  • Voltage – Supply : 4.75V ~ 5.25V

SKU: 7420 Categories: ,

7420 Dual 4-Input NAND Gate contains two independent gates each of which performs the logic NAND function. NAND gate is a combination of AND GATE and NOT GATE. This means the output is low only when all the input is high and output is high in all other case.

Specifications :

  • Logic Type : NAND Gate
  • Number of Circuits : 2
  • Number of Inputs : 4
  • Voltage – Supply : 4.75V ~ 5.25V
  • Current – Quiescent (Max) : 11 mA
  • Current – Output High, Low : 400µA, 16mA
  • Logic Level – Low : 0.8V
  • Logic Level – High : 2V
  • Max Propagation Delay @ V, Max CL : 15ns @ 5V, 15pF
  • Operating Temperature : 0°C ~ 70°C
  • Mounting Type : Through Hole
  • Package / Case : 14-DIP (0.300″, 7.62mm)
