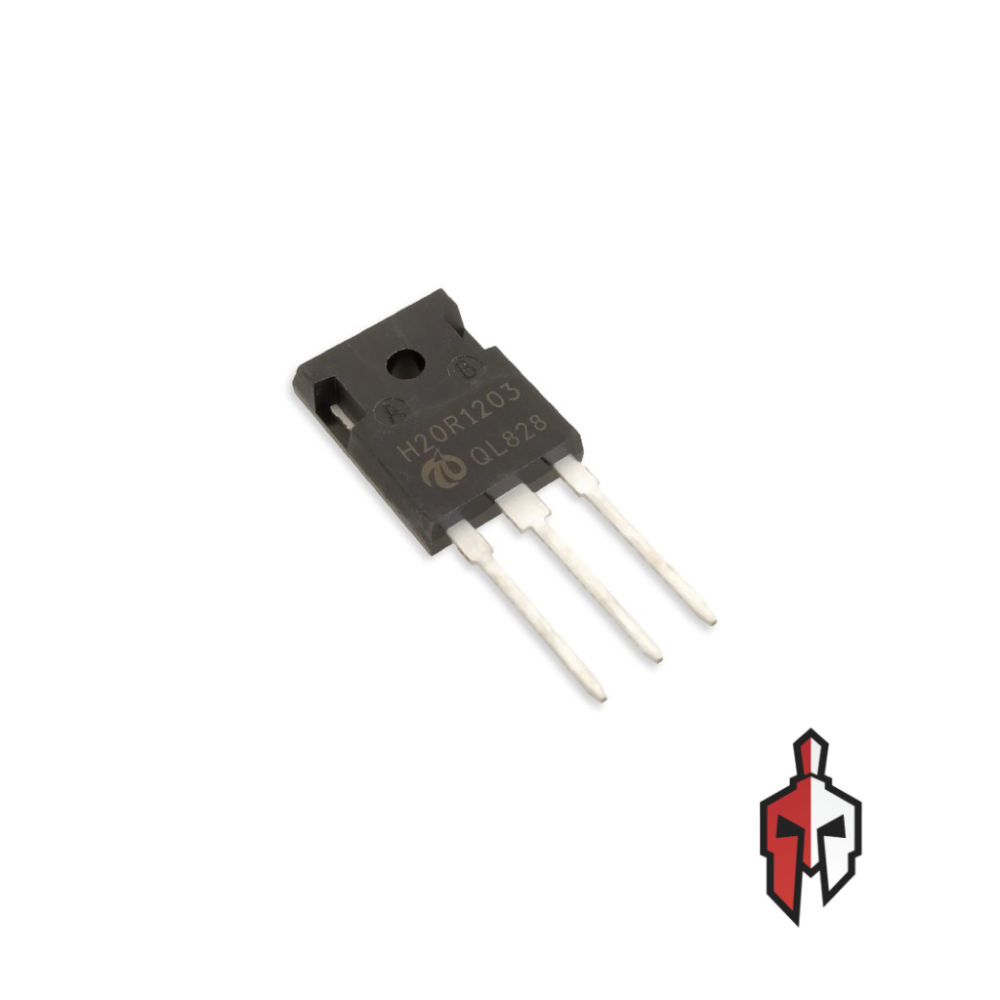

H20R1203 N Channel MOSFET
Rs 390.00
Quick Info :
- Type : N-Channel MOSFET
- Drain-Source Voltage : 1200V
- Continuous Drain Current : 20A (at 25°C)
- Pulsed Drain Current : 40A
- Gate-Source Voltage : ±30V
- Drain-Source On-Resistance : 0.190Ω
The H20R1203 is a high-performance N-channel MOSFET designed for high-speed switching applications. It is optimized for low conduction and switching losses, making it ideal for power supplies, motor control, and other power management applications.
Specification :
- Type : N-Channel MOSFET
- Drain-Source Voltage : 1200V
- Continuous Drain Current : 20A (at 25°C)
- Pulsed Drain Current : 40A
- Gate-Source Voltage : ±30V
- Drain-Source On-Resistance : 0.190Ω
- Total Gate Charge : 170nC
- Threshold Voltage : 2.5V – 4.5V
- Input Capacitance : 5000 pF
