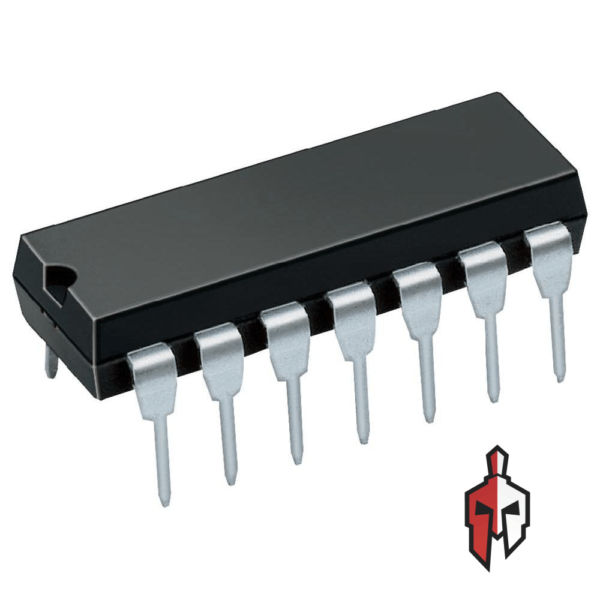

7410 Triple 3-Input NAND Gate

Rs 65.00

Out of stock

Quick Info :

  • Logic Type : NAND Gate
  • Number of Circuits : 3
  • Number of Inputs : 3
  • Voltage – Supply : 4.75V ~ 5.25V

SKU: 7410 Categories: ,

7410 Triple 3-Input NAND Gate contains three independent gates each of which performs the logic NAND function. The 3-input NAND gate has three inputs. The NAND gate can be cascaded together to form any number of individual inputs. There are 23=8 possible combinations of input

Specifications :

  • Logic Type : NAND Gate
  • Number of Circuits : 3
  • Number of Inputs : 3
  • Voltage – Supply : 4.75V ~ 5.25V
  • Current – Output High, Low : 400µA, 16mA
  • Logic Level – Low : 0.8V
  • Logic Level – High :2V
  • Max Propagation Delay @ V, Max CL : 22ns @ 5V, 15pF
  • Operating Temperature : 0°C ~ 70°C
  • Mounting Type : Through Hole
  • Package / Case : 14-DIP (0.300″, 7.62mm)
