Antenna
Antennas and RF cables: 433MHz and 915MHz LoRa spring and duck antennas, 2.4GHz and dual-band WiFi, GPS active antennas, GSM antennas and SMA to IPEX cables.
-
915MHz Spring Antenna for RF95 LORA Module
Quick Info :
- Frequency Range : 915MHz ± 5MHz
- Gain : 2.15dBi
- Input Impedance : 50 Ω
- Connector Type : Soldering
Rs 450.00 -
Dual Band WiFi Antenna with Cable YS0911
Quick Info :
- Compatible With: ESP32 & WiFi Modules
- Bands: 2.4GHz & 5GHz
- Gain: 6dBi
- Cable Length: 15cm
Rs 550.00Rs 750.00Dual Band WiFi Antenna with Cable YS0911
Rs 550.00Rs 750.00 -
GPS Active Antenna 1575.42MHz with Cable
Quick Info :
- Antenna Type : Active (LNA + SAW filter integrated)
- Center Frequency : 1575.42MHz (GPS L1)
- Frequency Bandwidth : 1575.42 ± 5MHz
- Polarisation : RHCP (Right-Hand Circular Polarisation)
- Impedance : 50Ω
- Cable Length : 1.5 metres
- Connector : SMA Male (straight)
Rs 850.00Rs 1,100.00GPS Active Antenna 1575.42MHz with Cable
Rs 850.00Rs 1,100.00 -
SMA Female to IPEX UFL With Cable
Quick Info :
- Length: 20cm
- Connectors: SMA Female to IPEX1/MHF1
- Compatible With: SIM800L, SIM900A, ESP32U
- Impedance: 50 Ohm
Rs 250.00Rs 300.00SMA Female to IPEX UFL With Cable
Rs 250.00Rs 300.00 -
2.4GHz 3dBi WiFi Antenna SMA to IPX Cable ESP32
Quick Info:
- Frequency : 2.4GHz (2400–2500MHz ISM)
- Gain : 3dBi
- Impedance : 50Ω
- VSWR : ≤ 1.5
- Antenna Connector : SMA male
- Cable Connector : U.FL / IPEX / IPX
- Cable Length : ~100mm
- Max Input Power : 50W
- Compatible With : ESP32 / ESP32-CAM / ESP8266 / U.FL modules
Rs 300.00Rs 350.002.4GHz 3dBi WiFi Antenna SMA to IPX Cable ESP32
Rs 300.00Rs 350.00 -
433MHz LoRa Duck Antenna 2dBi
Quick info:
- Frequency : 433MHz
- Antenna Type : Duck (Rubber Whip)
- Gain : 2 dBi
- Connector : SMA Male
- Impedance : 50 Ohms
- Compatible With : SX1278, RA-02, Arduino, ESP32
Rs 450.00Rs 460.00433MHz LoRa Duck Antenna 2dBi
Rs 450.00Rs 460.00 -

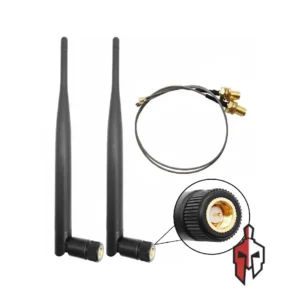

915MHz LoRa Antenna Indoor Omnidirectional SMA Male with IPX Cable
Quick Info :
- Frequency: 915MHz (902-928MHz)
- Gain: 3dBi
- Type: Omnidirectional
- Connector: SMA Male
- Cable: IPX to SMA (20cm)
- Application: Indoor LoRa/LoRaWAN
- Impedance: 50 Ohm
Rs 1,950.00Rs 2,150.00915MHz LoRa Antenna Indoor Omnidirectional SMA Male with IPX Cable
Rs 1,950.00Rs 2,150.00 -
Active GPS Patch Antenna (25*25)
Quick Info :
- Frequency – 1559Mhz-1609Mhz
- Active antenna noise figure < 1.5dB
- Cable – RF1.13
- Connector – I-PEX
Rs 650.00Active GPS Patch Antenna (25*25)
Rs 650.00 -
GSM GPRS Adhesive Antenna
Quick Info :
- Low Freq. range – 820-960mHz
- High Freq. range – 1710-1990mHz
- Cable length – Max 3m
- Connector Type – SMA
Rs 650.00Rs 890.00GSM GPRS Adhesive Antenna
Rs 650.00Rs 890.00 -
GSM PCB Trace Antenna
Quick Info :
- Low Freq. range – 820-960mHz
- High Freq. range – 1710-1990mHz
- Cable – RF1.13
- Connector – I-PEX
Rs 180.00GSM PCB Trace Antenna
Rs 180.00 -
Spring LoRa Antenna 433Mhz with IPEX Cable
Quick Info:
- Centre Frequency : 433MHz (ISM band)
- Antenna Type : Spring coil (helical)
- Gain : 3dBi
- VSWR : ≤ 1.5
- Input Impedance : 50Ω
- Cable Length : ~150mm
- Compatible Modules : SX1278, Ra-02, RYLR998, ESP32 LoRa
Rs 320.00Rs 380.00Spring LoRa Antenna 433Mhz with IPEX Cable
Rs 320.00Rs 380.00
Antennas for wireless modules: 433MHz spring and 2dBi duck antennas and 915MHz spring antennas for LoRa, 2.4GHz 3dBi and dual-band WiFi antennas with IPEX cable for ESP32, active GPS antennas and patch antennas, GSM PCB antennas and SMA female to IPEX (U.FL) pigtails. Always use an antenna tuned to your module’s frequency, and connect it before powering a transmitter.
