360 Degree Rotary Encoder Module
Quick Info :
- Incremental Encoder
- Supply Voltage: 3-5V
- Left/Right rotary output pulse, each circle with 20 pulse
- Built in 10k resistor
- Cycles per revolution (CPR): 20
Rs 350.00360 Degree Rotary Encoder Module
Rs 350.00801S Vibration Shock Sensor Sensitivity Adjustable
Quick Info :
- The main chip: LM393, 801S
- Working voltage: DC 5V
- With analog and TTL level signal output signal output
Rs 750.00AC Current Sensor 5A Module
Quick Info :
- Type : Sensor Brick
- Interface : 3PIN
- Power Supply : 5V
- Board Size : 30 × 24 × 1.6mm
Rs 950.00AC Current Sensor 5A Module
Rs 950.00ACS712 20A Current Sensor Module
Quick Info :
- The current sensor chip : ACS712
- Current measuring : up to 20A
- 5V power supply, on-board power indicator
Rs 550.00ACS712 20A Current Sensor Module
Rs 550.00ADXL345 3-Axis Accelerometer Module
Quick Info :
- 3V-6V DC Supply Voltage
- On-board LDO Voltage regulator
- Built-in Voltage level convertor (MOSFET based)
- It can be interface with 3.3V or 5V Microcontroller.
Rs 750.00ADXL345 3-Axis Accelerometer Module
Rs 750.00AHT10 High Precision Digital Temperature and Humidity Sensor
Quick Info :
- Interface Type: I2C.
- Working voltage: 3.3~5.0V DC.
- Temperature: -40ºC ~ 85ºC.
- Humidity: 0 ~ 100%.
Rs 490.00BMP280 Barometric Pressure Sensor Module
Quick Info :
- Operating Voltage : 1.8v – 3.6v DC
- Temperature Sensor Range : -40-80°C
- Accuracy : 1.0 °C
- Resolution : 0.01°C
- Barometric Pressure Sensor Range : 30,000 – 110,000 Pa
Rs 400.00BMP280 Barometric Pressure Sensor Module
Rs 400.00Capacitive Touch 4 Pad sensor TTP224
Quick Info :
- On-board TTP224 capacitive touch 4 key IC
- On-board 4 road level indicator.
- Working voltage: 2 V to 5.5 V DC
- PCB board size: 35(mm) x29 (mm).
Rs 320.00Capacitive Touch 4 Pad sensor TTP224
Rs 320.00Capacitive Touch 8 Pad sensor TTP226
Quick Info :
- On-board TTP226 IC
- On-board 4 road level indicator.
- Working voltage: 2 V to 5.5 V DC
- PCB board size: 47.4 (mm) x 46 (mm)
Rs 495.00Capacitive Touch 8 Pad sensor TTP226
Rs 495.00DHT11 Humidity and Temperature Sensor
Quick Info :
- Working Voltage : 3 to 5V DC
- Humidity Range : 20-80% humidity; ±5% accuracy
- Temperature Range : -20°C to 50°C temperature; ±2°C accuracy
Rs 450.00DHT11 Humidity and Temperature Sensor
Rs 450.00DS18B20 Stainless Steel Temperature Sensor Probe
Quick Info :
- Usable temperature range: -55 to 125°C (-67°F to +257°F)
- Usable with 3.0V to 5.5V power/data
- Stainless steel tube 6mm diameter by 30mm long
- Cable is 36″ long / 91cm, 4mm diameter (1 Meter Long)

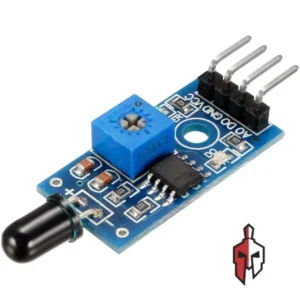

Rs 390.00Flame Sensor Module
Quick Info :
- Operating Voltage : 3.3V ~ 5.5V
- Infrared Wavelength Detection : 760nm ~ 1100nm
- Sensor Detection Angle : 60°
Rs 280.00Flame Sensor Module
Rs 280.00GY-53 VL53L1X TOF UART Sensor Module
Quick Info:
- GY-53 infrared ranging module (VL53L0X + STM32)
- Module type: GY-53
- Use chip: VL53L0X + STM32
- Power supply: 3-5v (low dropout voltage regulator)
- Range: 2 meters (dark, long distance mode)
Rs 2,950.00GY-53 VL53L1X TOF UART Sensor Module
Rs 2,950.00GY-BMI160 Module 6DOF 6 Axis Gyroscope
Quick Info :
- Power supply: 3-5v (Recommended 3.3v)
- Communication mode: Standard IIC/SPI communication protocol
- Chip built in AD 16bit converter, 16 bit data output
- Gyro range: ±125 ±250 ±500 ±1000 ±2000 degrees /s
Rs 750.00GY-BMI160 Module 6DOF 6 Axis Gyroscope
Rs 750.00HC-SR04 Ultrasonic Sensor Module
Specifications :
- Input Voltage: 5V
- Current Draw: 20mA (Max)
- Range: 2cm – 400 cm
Rs 390.00Rs 430.00HC-SR04 Ultrasonic Sensor Module
Rs 390.00Rs 430.00HC-SR501 Pyroelectric Infrared Motion Sensor (PIR)
Quick Info :
- Voltage: 5V
- Power Consumption : 65mA
- Sensing range : < 120 °, within 7 meters
Rs 390.00HC-SR505 Mini PIR Sensor
Quick Info :
- Operating voltage range : DC 4.5-20V
- Sensing distance : 3 meters
- Delay Time : The default 8S + -30%
Rs 400.00HC-SR505 Mini PIR Sensor
Rs 400.00HMC5883L Electronic Compass Module
Quick Info :
- Power Requirements: 2.7 to 6.5 VDC
- Communication Interface: I²C (up to 400 kHz)
- Operating temperature: -22 to +185 °F to +85 °C)
- Dimensions: 0.73 x .65 in ( 1.8 x 1.7 cm)
Rs 850.00HMC5883L Electronic Compass Module
Rs 850.00INA219 Bi Directional Current Sensor Module
Quick Info :
- Power Input : 3.0V-5.5V
- Up to +26V target voltage
- 0.1 ohm 1% 2W current sense resistor
Rs 1,150.00INA219 Bi Directional Current Sensor Module
Rs 1,150.00INA226 Bi-Directional Current Module I2C
Quick Info :
- Senses Bus Voltages : 0 V to 36 V
- High-Side or Low-Side Sensing
- Reports Current, Voltage, and Power
- Operates from 2.7-V to 5.5-V Power Supply
Rs 1,650.00INA226 Bi-Directional Current Module I2C
Rs 1,650.00Infrared Encoder/Decoder Module
Quick Info :
- Power Supply Voltage : 5V
- Size : 27 * 17mm
- Communication Type : serial port communication (TTL level)
Rs 650.00Infrared Encoder/Decoder Module
Rs 650.00Infrared Obstacle Avoidance Sensor Module
Quick Info :
- Working Voltage : 3.3v to 5v
- Detectable Distance : 2 ~ 30cm,
- Detection angle : 35 °
- Comparator chip: LM393
Rs 280.00Infrared Speed Sensor Module
Quick Info :
- Working voltage: 3.3V~5V
- The output form: Digital switching outputs. (0 and 1)
- Pin Configuration : VCC, GND, Dout and Aout
Rs 250.00Infrared Speed Sensor Module
Rs 250.00KY-005 IR Transmitter Module
Quick Info :
- Operating Voltage: 5V
- Current Consumption: 30-60mA
- Frequency: 38kHz
- Wavelength: 940nm
Rs 220.00KY-005 IR Transmitter Module
Rs 220.00KY-008 5mW Laser sensor Module
Quick Info :
- Operating Voltage 5V
- Output Power 5mW
- Wavelength 650nm
- Operating Current less than 40mA
Rs 290.00KY-008 5mW Laser sensor Module
Rs 290.00KY-022 IR Receiver Module
Quick Info :
- Chip type: VS1838B
- Operating Voltage: 3.3V to 5V
- Current Consumption: 1.5mA peak
- Receiving angle: 90 °
- Reception distance: 17m
Rs 220.00KY-022 IR Receiver Module
Rs 220.00LDR Light Sensitive Module
Quick Info :
- Adjustable sensitivity (via blue digital potentiometer adjustment)
- Operating voltage 3.3V-5V
- Output Type : Digital switching outputs (0 and 1) -D0
- Using LM393 comparator chip, stable
Rs 300.00LDR Light Sensitive Module
Rs 300.00MAX471 Current and Voltage Sensor
Quick Info :
- Test Voltage range: DC3 – 25V (on 5V) or DC3 – 16.5V (on 3.3V)
- Monitors Both Charge and Discharge
- Complete High-Side Current Sensing
- Current Sensing up to 3A
Rs 1,950.00MAX471 Current and Voltage Sensor
Rs 1,950.00MLX90614 Contactless Temperature Sensor Module GY-906
Quick Info:
- Operating Voltage: 3.6V to 5V
- Supply Current: 1.5mA
- Object Temperature Range: -70° C to 382.2°C
- Ambient Temperature Range: -40° C to 125°C
Rs 5,250.00- Operating Voltage: 3.6V to 5V
MQ-135 Gas Sensor Module for Air Quality
Quick Info :
- Operating Voltage: 2.5V to 5.0V
- Power consumption: 150mA
- Detect/Measure: NH3, Nox, CO2, Alcohol, Benzene, Smoke
- Typical operating Voltage: 5V
Rs 590.00MQ-135 Gas Sensor Module for Air Quality
Rs 590.00MQ-2 Gas Sensor Module for Combustible Gas
Quick Info :
- Operating Voltage is +5V
- Can be used to Measure or detect LPG, Alcohol, Propane, Hydrogen, CO and even methane
- Analog output voltage: 0V to 5V
- Digital Output Voltage: 0V or 5V (TTL Logic)
Rs 590.00MQ-3 Gas Sensor Module for Alcohol
Quick Info :
- Power requirements: 5 VDC
- Current Consumption: 150mA
- DO output: TTL digital 0 and 1 ( 0.1 and 5V)
- AO output: 0.1- 0.3 V (relative to pollution), the maximum concentration of a voltage of about 4V
- Detecting Concentration: 0.05-10mg/L Alcohol
Rs 590.00MQ-3 Gas Sensor Module for Alcohol
Rs 590.00MQ-4 Gas Sensor Module for Methane Gas
Quick Info :
- Power requirements : VCC – 5V±0.1
- DO output : TTL digital 0 and 1 (0.1 and 5V)
- AO output : 0.1-0 .3 V (relative to pollution), the maximum concentration of a voltage of about 4V
- Detection Gas : Natural gas/Methane
- Detection Concentration : 200-10000ppm (Natural gas / Methane)
Rs 500.00MQ-4 Gas Sensor Module for Methane Gas
Rs 500.00MQ-7 Gas Sensor Module for Carbon Monoxide
Quick Info :
- Power requirements : VCC – 5V±0.1
- DO output : TTL digital 0 and 1 (0.1 and 5V)
- AO output : 0.1-0 .3 V (relative to pollution), the maximum concentration of a voltage of about 4V
- Detection Gas: Carbon Monoxide
Rs 550.00
