HC-SR04 Ultrasonic Sensor Acrylic Bracket
Quick Info :
- Compatible Sensor : HC-SR04 Ultrasonic Module
- Material : Acrylic
- Mounting Hole Diameter : 3.8mm
- Mounting Hardware : Not included (M3 screws recommended)
Rs 120.00Rs 130.00HC-SR04 Ultrasonic Sensor Acrylic Bracket
Rs 120.00Rs 130.00 -
-
ESP32 CAM Module with OV2640 Camera Module
Quick Info :
- Chip: ESP32 dual-core (240MHz)
- Memory: 4MB Flash, 520KB SRAM
- Camera: OV2640 2MP (up to 1600×1200)
- Storage: MicroSD card slot
- Connectivity: WiFi 802.11n + Bluetooth 4.2
- Frame Rate: Up to 60fps at VGA
- Programming: Arduino IDE, ESP-IDF (requires USB-TTL adapter)
- Power: 5V DC
- Note: External programmer required
Rs 2,250.00Rs 2,690.00ESP32 CAM Module with OV2640 Camera Module
Rs 2,250.00Rs 2,690.00 -
0-100V DC Voltmeter
Quick Info :
- Range: 0-100V DC
- Display: 0.28″ Red LED
- Accuracy: ±1%
- Wiring: Three-wire (separate power & signal)
- Application: Battery/Solar/Automotive monitoring
Rs 280.00Rs 320.000-100V DC Voltmeter
Rs 280.00Rs 320.00 -
ULN2803A Darlington Transistor Array IC
Quick Info:
- Transistor Type : 8 NPN Darlington
- Current – Collector (Ic) (Max) : 500mA
- Voltage – Collector Emitter Breakdown (Max) : 50V
Rs 80.00Rs 95.00ULN2803A Darlington Transistor Array IC
Rs 80.00Rs 95.00 -
Rs 580.00
Rs 690.00Stepper Motor 28BYJ-48 5V and ULN2003A Driver Module
Rs 580.00Rs 690.00 -
Shaft Coupler Rigid Copper Coupling
Quick Info :
- Type: Rigid Shaft Coupler
- Material: Copper/Brass
- Sizes: 2-4mm, 4-6mm, 5-6mm, 6-6mm bore combinations
- Features: Zero backlash, dual set screws, electrical conductivity
- Locking: Hex socket set screws
- Use: Motors, encoders, CNC, 3D printers, robotics
Rs 200.00Rs 250.00Shaft Coupler Rigid Copper Coupling
Rs 200.00Rs 250.00 -
TCRT5000 Reflective Infrared Optical Sensor
Quick Info :
- Type: Reflective IR Sensor
- Package: 4-Pin Through-hole
- Components: IR LED + Phototransistor
- Optimal Range: 2.5mm
- Wavelength: 950nm
- Use: Line tracking, encoders, proximity
Rs 45.00Rs 50.00TCRT5000 Reflective Infrared Optical Sensor
Rs 45.00Rs 50.00 -
18650 Li-ion Rechargeable Battery INR18650
Quick Info :
- Brand: Samsung INR18650-25P
- Capacity: 2500mAh (2.5Ah)
- Voltage: 3.6V nominal
- Max Discharge: 10A continuous
- Type: Flat top, no protection
- Use: Battery packs, power tools, e-bikes
Rs 950.00Rs 1,100.0018650 Li-ion Rechargeable Battery INR18650
Rs 950.00Rs 1,100.00 -
SPDT Slide Switch Right Angle 3 Pin On/Off Through-hole
Quick Info :
- Type : SPDT (3 Pin)
- Configuration : On/Off
- Mounting : Right Angle, Through-hole
- Voltage : 12 V DC
Rs 30.00Rs 70.00SPDT Slide Switch Right Angle 3 Pin On/Off Through-hole
Rs 30.00Rs 70.00 -

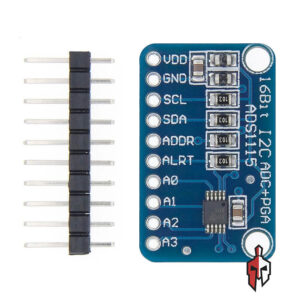

ADS1115 16 Bit ADC Module
Quick Info :
- WIDE SUPPLY RANGE: 2.0V to 5.5V
- PROGRAMMABLE DATA RATE: 8SPS to 860SPS
Rs 650.00Rs 950.00ADS1115 16 Bit ADC Module
Rs 650.00Rs 950.00 -
TIP120 NPN Epitaxial Darlington Transistor
Quick Info :
- : NPN
- : 60V
- : 5A
- : 65W
Rs 60.00 - : NPN
-
TCRT5000 Line Following/ Optical Sensor Module
Quick Info :
- Working voltage of 3.3V to 5V
- Output form: digital switch output (0 and 1)
- Using infrared reflection sensors TCRT5000
- Test reflection distance: 1mm to 25mm
Rs 180.00Rs 270.00TCRT5000 Line Following/ Optical Sensor Module
Rs 180.00Rs 270.00 -
Bar Type Load Cell 1kg / 5kg / 10kg / 20kg / 50kg
Quick Info:
- Type : Straight Bar (Single Point)
- Available Capacities : 1kg / 5kg / 10kg / 20kg / 50kg
- Material : Aluminium Alloy
- Rated Output : ~1.0 mV/V (typical)
- Excitation Voltage : 5V – 10V DC
- Non-Linearity : ±0.5% F.S (typical)
- Creep : ≤ 0.2% F.S (typical)
- Safe Overload : 120% of rated capacity
- Wire Code : Red=E+, Black=E−, Green=A+, White=A−
- Recommended ADC : HX711 (24-bit)
Price range: Rs 450.00 through Rs 3,850.00Bar Type Load Cell 1kg / 5kg / 10kg / 20kg / 50kg
Price range: Rs 450.00 through Rs 3,850.00 -
LDR Light Sensitive Module
Quick Info :
- Adjustable sensitivity (via blue digital potentiometer adjustment)
- Operating voltage 3.3V-5V
- Output Type : Digital switching outputs (0 and 1) -D0
- Using LM393 comparator chip, stable
Rs 130.00LDR Light Sensitive Module
Rs 130.00 -
AC-DC 5V 2A SMPS Power Adapter
Quick Info :
- Input Voltage : AC 100 ~ 240V 50/60 HZ
- Output Voltage: DC 5V
- Output Current: 2A
- Plug Type : UK Plug
Rs 590.00Rs 650.00AC-DC 5V 2A SMPS Power Adapter
Rs 590.00Rs 650.00 -
W5500 Ethernet Module
Quick Info :
- WIZnet W5500 Ethernet controller
- Compatible withWIZ850io
- Magjack RJ-45 CAT network connector
- Acts as client or server
- TCP/IP protocols include TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE
- 10BaseT/100BaseTX Ethernet PHY embedded
Rs 2,290.00W5500 Ethernet Module
Rs 2,290.00 -
AC-DC 5V 10A SMPS Power Supply Metal Casing
Quick Info:
- Input Voltage: 100-120V 60Hz, 220-230V 50Hz
- Output Voltage: 5VDC
- Output Current: 10A (max)
- Dimensions (L X W X H) : 13 cm x 9.8 cm x 4 cm
Rs 2,490.00AC-DC 5V 10A SMPS Power Supply Metal Casing
Rs 2,490.00
