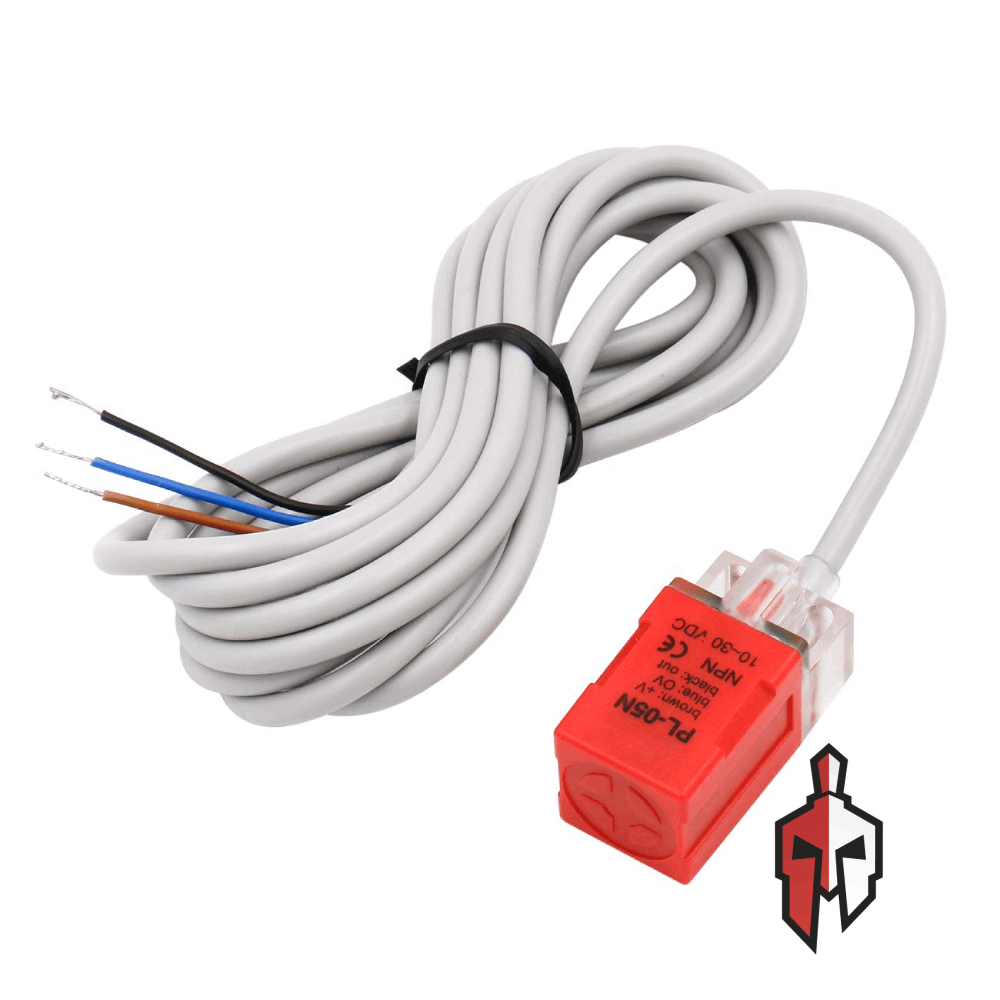

Inductive Proximity Sensor NPN PL-05N

Inductive Proximity Sensor PL-05N NPN Limit Switch is used for controlling machinery as part of a control system, as a safety interlock, or to count objects passing a point. A limit switch is an electromechanical device that consists of an actuator mechanically linked to a set of contacts. When an object comes into contact with the actuator, the device operates the contacts to make or break an electrical connection. Being an inductive switch, no physical contact is required between the switch and the metallic surface being sensed.

Specifications:

• PL-05N
• Square Type
• Sensing distance: 5mm
• Operating voltage: DC10-30V
• Response frequency: 800Hz
• Output method : NPN, 150mA load
• Hysteresis: <10% of sensing distance
• Protection degree: IP67
• Working temperature/Hum : -20 ~+80C, 35%~90%RH
• Body dimension : 30.5 x 17.9 x 10.2mm, LxWxH
• Mounting Method: Flush
• Sensing Direction: Horizontal
• Material Housing: High-impact plastic
• Screw hole : 3.2mm, Pitch : 10.5mm
• Wire length : 100cm (39-inch)
