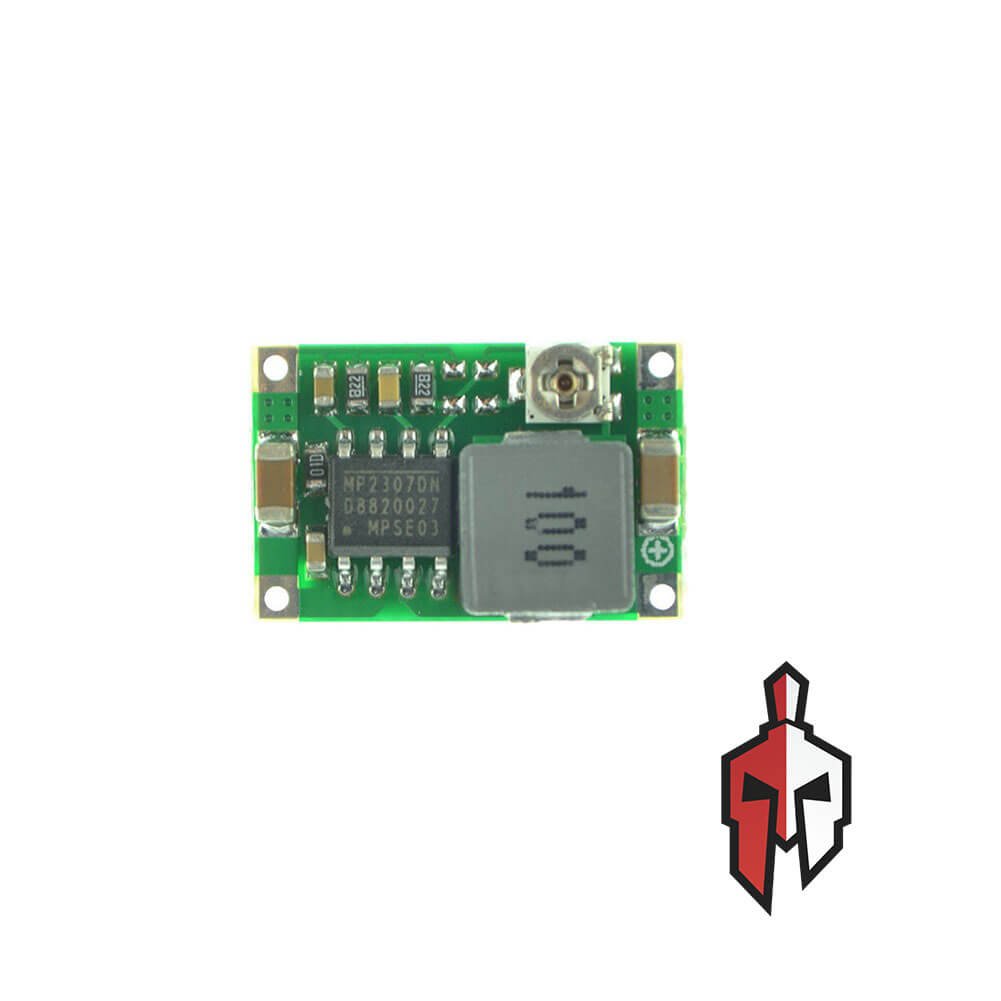

MP2307DN Mini 3A DC to DC Step down (Buck) Adjustable Module V2
Rs 180.00Rs 280.00 (-36%)
Quick Info :
- Input voltage : 4.75 – 23VDC
- Adjustable Output voltage : 1.0 – 17VDC
- Output Amps : 3A surge current, 1.8A continuous rated current
Frequently Bought Together
- This item: MP2307DN Mini 3A DC to DC Step down (Buck) Adjustable Module V2(Rs 180.00
Rs 280.00(-36%)) - N20 Ball Caster Wheel 3PI 15mm(Rs 180.00
Rs 250.00) - Jumper Wire Female-Female 10cm(Rs 5.00)
- Jumper Wire Male-Female 10cm(Rs 5.00)
Super compact and capable, this DC-DC buck converter can knock down a voltage from 23V to as low as 1V with up to 95% efficiency.
Specifications :
- MPS MP2307DN buck regulator IC
- Input voltage : 4.75 – 23VDC
- Adjustable Output voltage : 1.0 – 17VDC
- Output Amps : 3A surge current, 1.8A continuous rated current
- Maximum conversion efficiency of 95% (5Vin, 3.3Vout ~200mA output)
- 340kHz switching frequency
- 30mV no-load output ripple
- 0.5% load regulation
- 2.5% voltage regulation
- -40 to +85°C operational temperature range
- Built-in 160°C thermal shutdown
- Dimensions : 17x11x3.8mm (0.67×0.43×0.15″)
