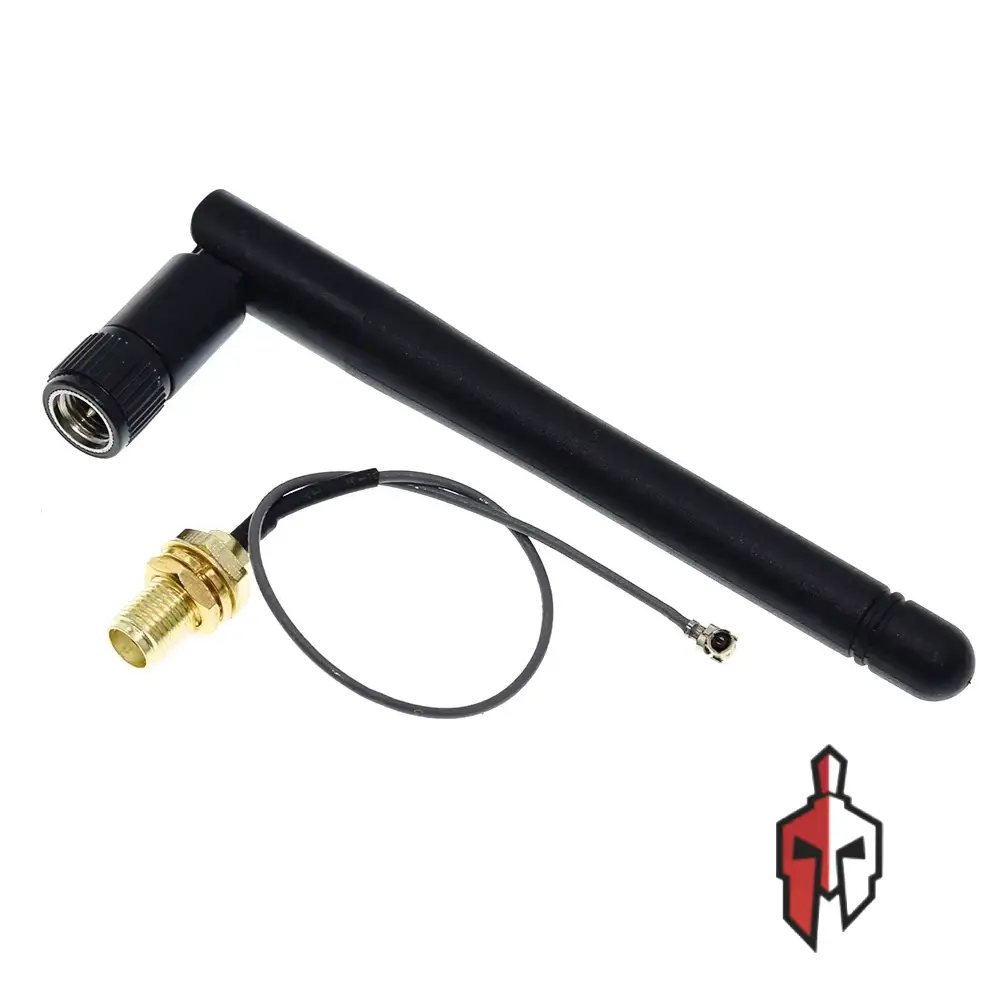

2.4GHz 3dBi WiFi Antenna SMA to IPX Cable ESP32

This 2.4GHz 3dBi external WiFi antenna with SMA-to-IPX (U.FL) pigtail cable is the most straightforward and effective way to boost the wireless range and signal strength of your ESP32, ESP32-CAM, ESP8266, NodeMCU, and other 2.4GHz WiFi and Bluetooth modules that feature an onboard U.FL / IPEX connector. The onboard PCB trace antenna found on most development boards is adequate for short-range use, but this external 3dBi dipole antenna extends your effective wireless range significantly — making it essential for projects behind walls, inside enclosures, or at the edge of network coverage.

The antenna operates across the 2400–2500MHz ISM band with a 3dBi gain and 50Ω impedance, delivering a meaningful improvement in both signal reception and transmission strength over the typical built-in chip antenna or PCB trace. The SMA connector on the antenna end and U.FL (IPX) connector on the cable end make it directly compatible with any module featuring a U.FL socket, with a cable length of approximately 100mm.

Note that some ESP32 modules (such as the ESP32-WROOM-32U) require moving a zero-ohm resistor jumper to switch from the PCB trace antenna to the external IPX port before use. Ideal for IoT sensor nodes, smart home devices, ESP32-CAM surveillance systems, wireless data loggers, and any 2.4GHz project requiring extended range.

Specification:

• Antenna Type : Dipole (omnidirectional)
• Operating Frequency : 2.4GHz (2400MHz – 2500MHz ISM band)
• Gain : 3dBi
• Impedance : 50Ω
• Polarisation : Vertical (linear)
• Antenna Connector : SMA male
• Cable Length : ~100mm (approx.)
• Antenna Length : ~108mm
• Antenna Material : Plastic housing with copper wire element
• Compatible Standards : IEEE 802.11 b/g/n WiFi, Bluetooth 4.x / 5.x, Zigbee, 2.4GHz ISM
• Compatible Modules : ESP32, ESP32-CAM, ESP32-WROOM-32U, ESP8266, ESP-07, NodeMCU, WiFi / BT modules with U.FL socket
• Note : Some ESP32 modules require switching a 0Ω jumper resistor to activate the external IPX antenna port
• Package Includes : 1 × 2.4GHz 3dBi SMA Antenna + 1 × SMA-to-IPX U.FL Pigtail Cable (~100mm)
