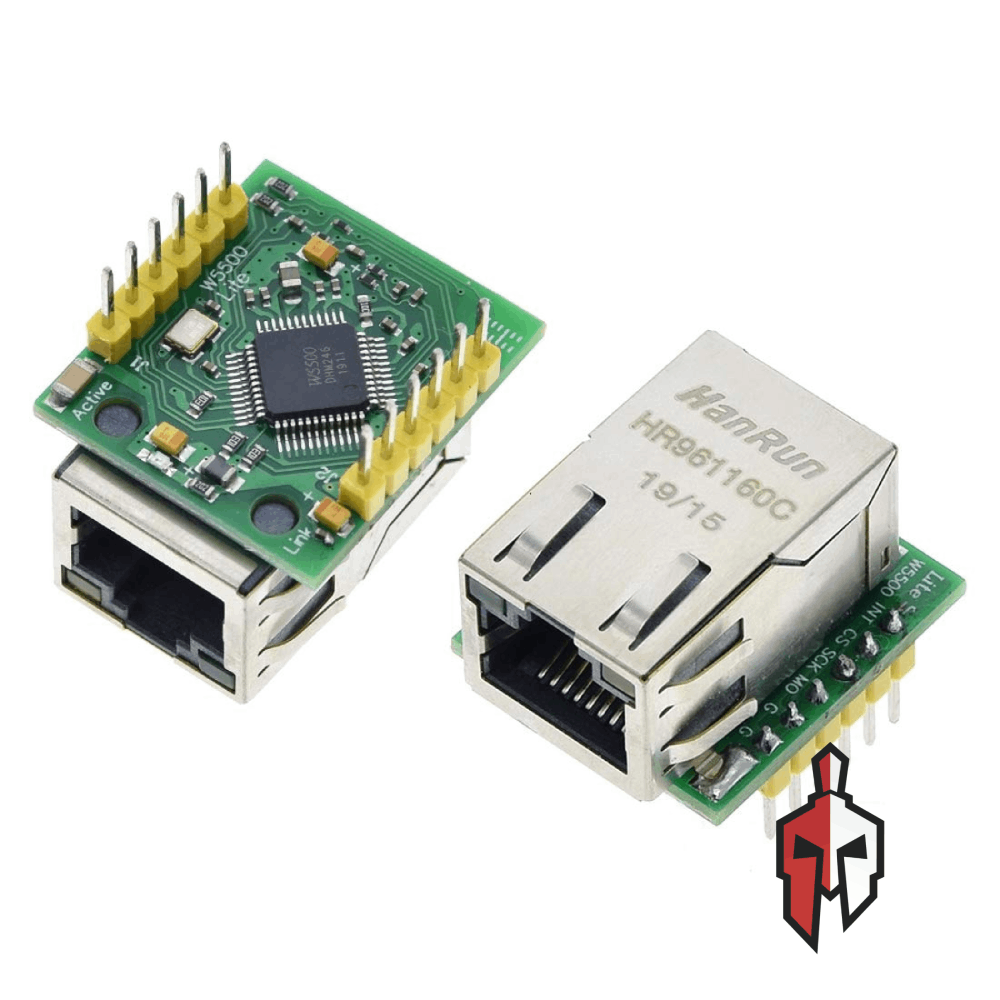

W5500 Ethernet Module

W5500 Ethernet Module uses the WIZnet W5500 network interface chip to provide a cabled connection to a network. The W5500 has very good library support for most microcontrollers. The Arduino, Teensy and other Arduino compatibles can use the standard Ethernet.h library included with the IDE.

The module operates at 3.3V, but the I/O is fully 5V tolerant, so it can be directly interfaced with 3.3V or 5V MCUs without the requirement for additional level shifting hardware.

Specifications:

• WIZnet W5500 Ethernet controller
• Compatible withWIZ850io
• Magjack RJ-45 CAT network connector
• Acts as client or server
• TCP/IP protocols include TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE
• 10BaseT/100BaseTX Ethernet PHY embedded
• Up to 8 simultaneous socket connections
• Supports auto negotiation (full and half duplex, 10 and 100-based)
• Internal 32Kb Tx/RX buffers
• Supports power down mode
• Supports wake on LAN over UDP
• Does not support IP fragmentation
• Does not support Auto MDI-X (auto cable cross-over)
• Link and Activity LEDs
• SPI Interface with maximum 80MHz
• Good library support
• Very small package for project integration
• I/O is 5V tolerant
• 3.3V Operation
