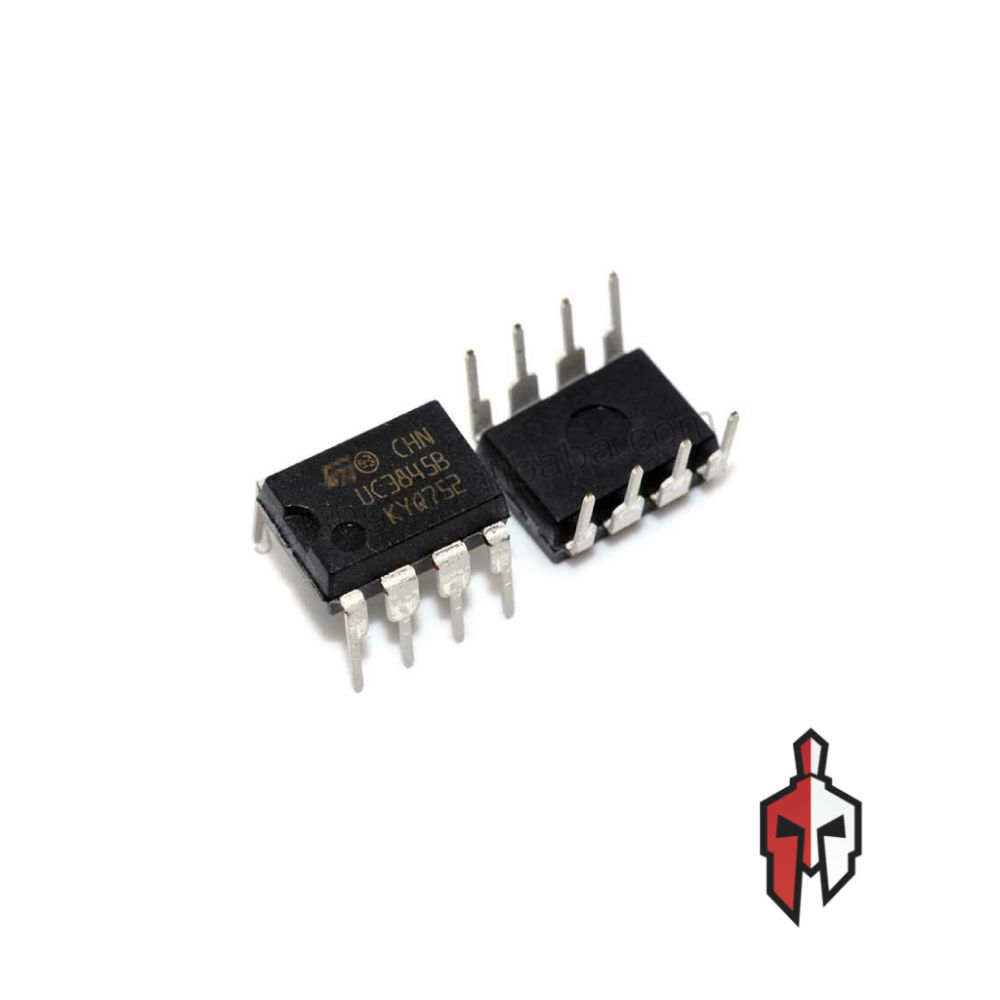

UC3845 PWM Controller IC
Rs 85.00
Quick Info :
- Operating Voltage Range : 7V to 30V
- Reference Voltage (Vref) : 5V ± 2% (Stable, Low Drift)
- Oscillator Frequency : Adjustable up to 500kHz (Typical 52kHz)
- Maximum Duty Cycle : 50%
- Startup Current : < 0.5mA (Low Power Startup)
- Operating Supply Current : 11mA (Typical)
Specification :
- Operating Voltage Range : 7V to 30V
- Reference Voltage ( Vref ) : 5V ± 2% (Stable, Low Drift)
- Oscillator Frequency : Adjustable up to 500kHz (Typical 52kHz)
- Maximum Duty Cycle : 50%
- Startup Current : < 0.5mA (Low Power Startup)
- Operating Supply Current : 11mA (Typical)
- Output Current : ±1A (Peak)
