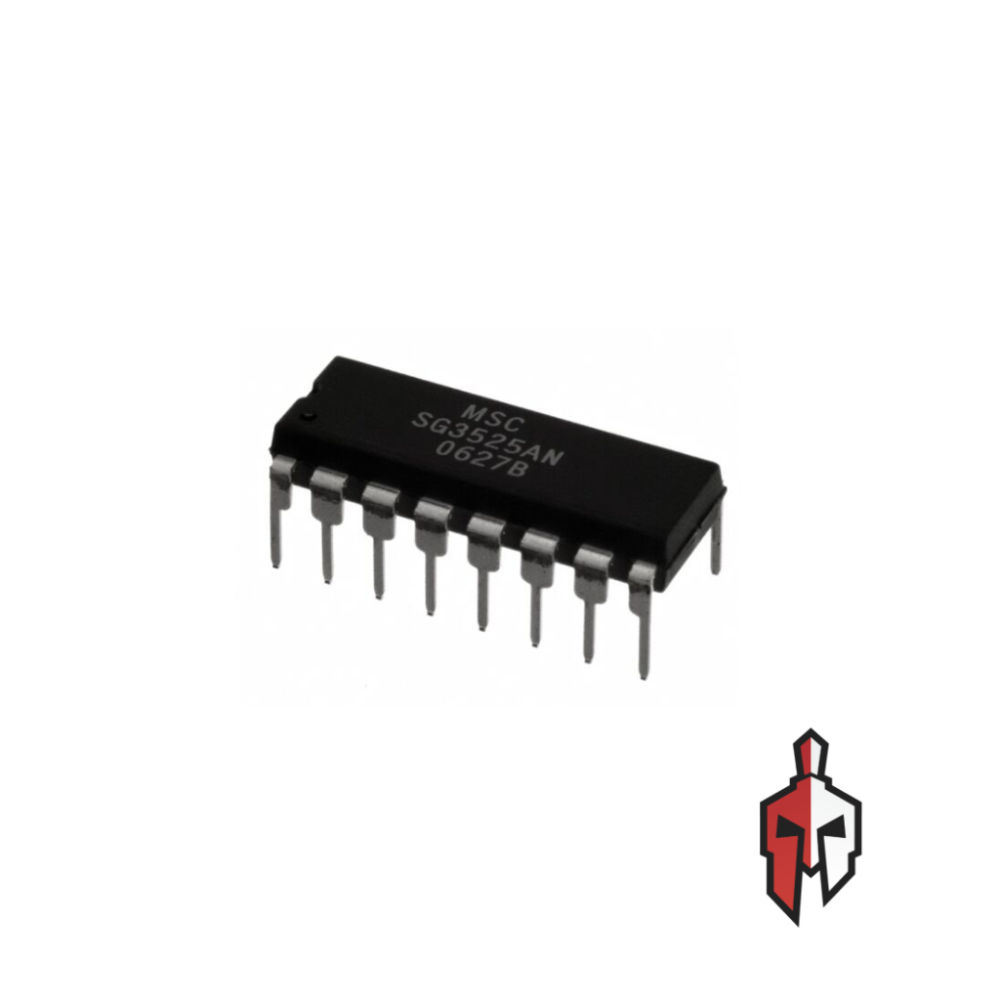

SG3525 Power Inverter PWM Controller IC
Rs 150.00
Quick Info :
- IC Type : PWM Controller
- Supply Voltage : 8 V to 35 V
- Output Voltage : ±0.5 V to V – 1 V
- Output Current : 500 mA (peak)
- Oscillator Frequency Range : 100 Hz to 400 kHz
Frequently Bought Together
- This item: SG3525 Power Inverter PWM Controller IC(Rs 150.00)
- 7404 Hex Inverter Gate(Rs 60.00)
- IRF3205 HEXFET Power MOSFET 55V 110A(Rs 200.00)
The SG3525 is a versatile pulse-width modulation (PWM) controller IC commonly used in designing power inverters, DC-DC converters, switch-mode power supplies (SMPS), and other high-efficiency power management systems.
Specification :
- IC Type : PWM Controller
- Supply Voltage : 8 V to 35 V
- Output Voltage : ±0.5 V to V – 1 V
- Output Current : 500 mA (peak)
- Oscillator Frequency Range : 100 Hz to 400 kHz
- Reference Voltage : 5.1 V (±1%)
- Duty Cycle Range : 0% to 100%
