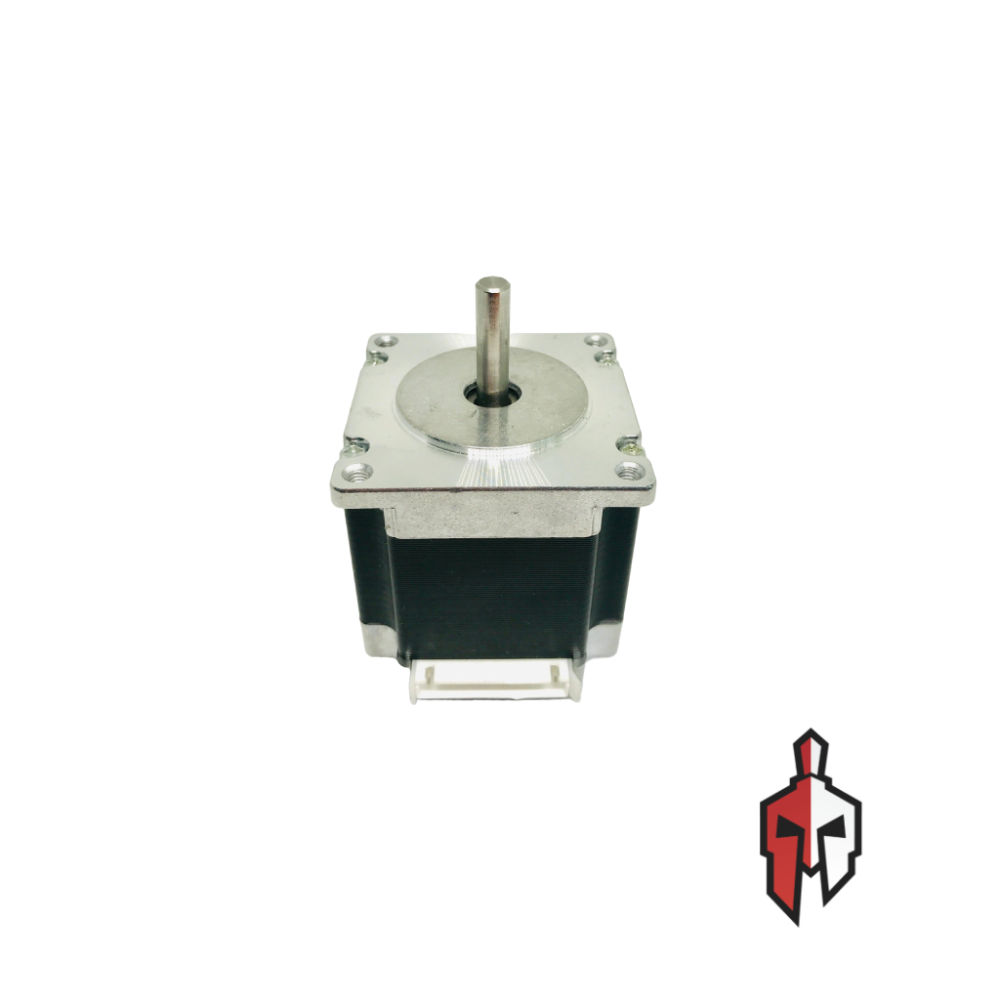

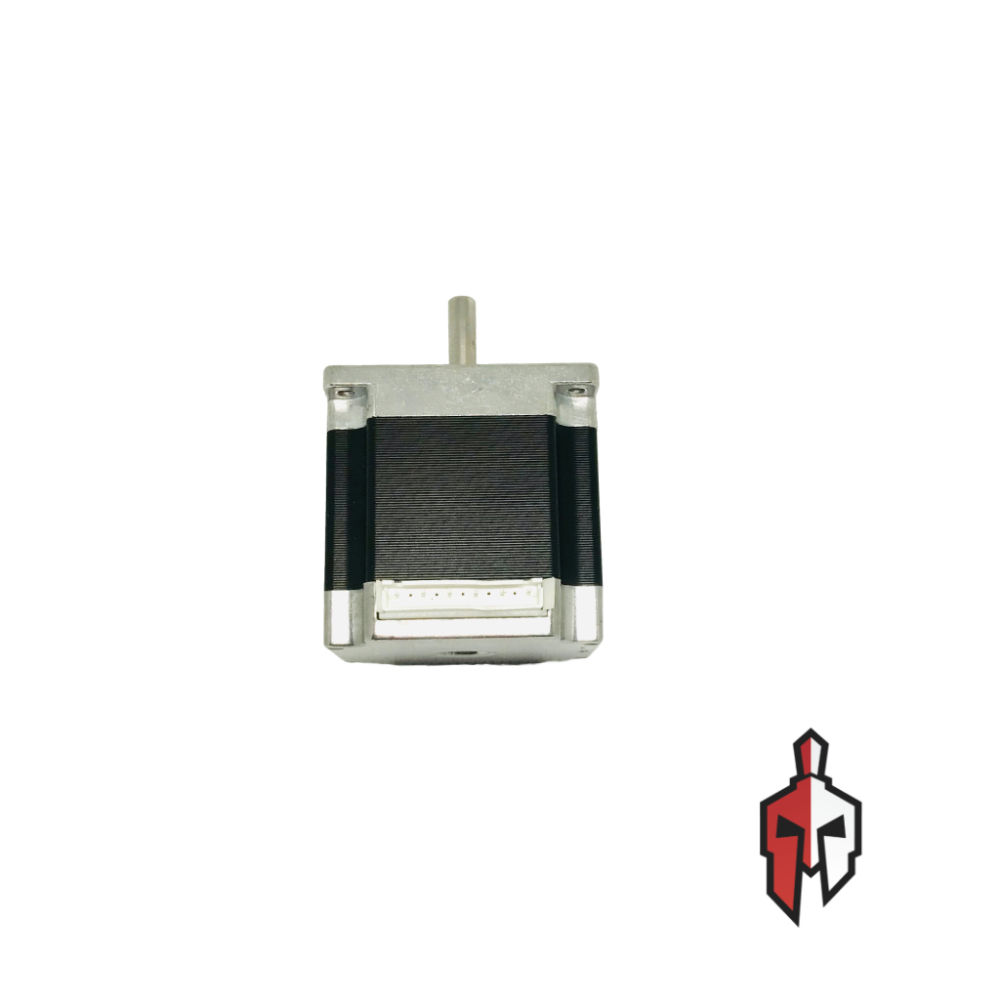

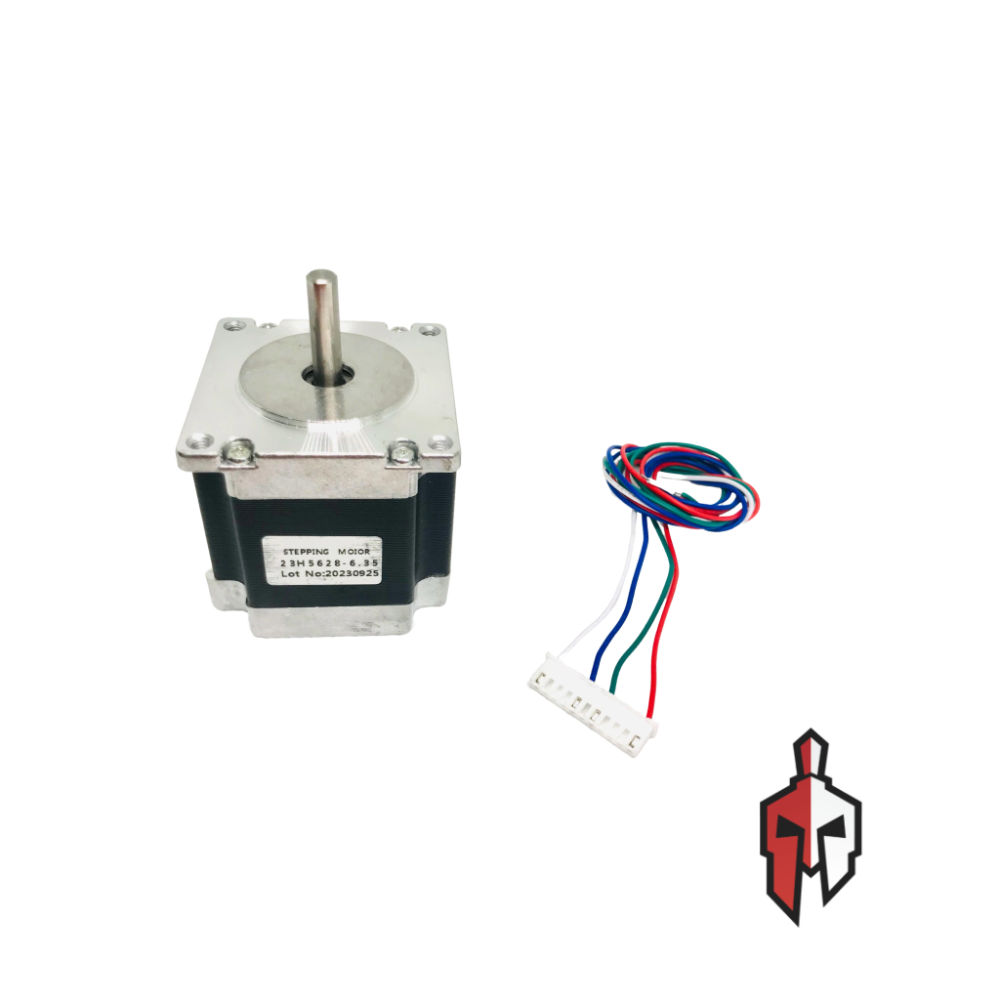

Stepper Motor 23H5628

The 23H5628-6.35 is a NEMA 23 stepper motor renowned for its precision and reliability, making it ideal for various applications such as CNC machines, 3D printers, and robotics. This motor’s combination of high torque, precise stepping, and robust construction makes it a versatile choice for various precision motion control applications.

Specification :

• Model Number: 23HS5628-6.35
• Frame Size: 56.4 mm x 56.4 mm (NEMA 23 standard)
• Shaft : “D” shaft 22mm(Length)
• Ф6.35mm(Diameter)
• Motor Length: 56 mm
• Phase Resistance: 0.9 Ω
• Phase Inductance: 2.5 mH
• Rotor Inertia: 300 g·cm²
• Lead Wires: 4
• Weight: Approximately 700 g
• Durable Shaft Design: Equipped with a 6.35 mm (1/4 inch) diameter shaft, often with a ‘D’ shape for secure coupling.
