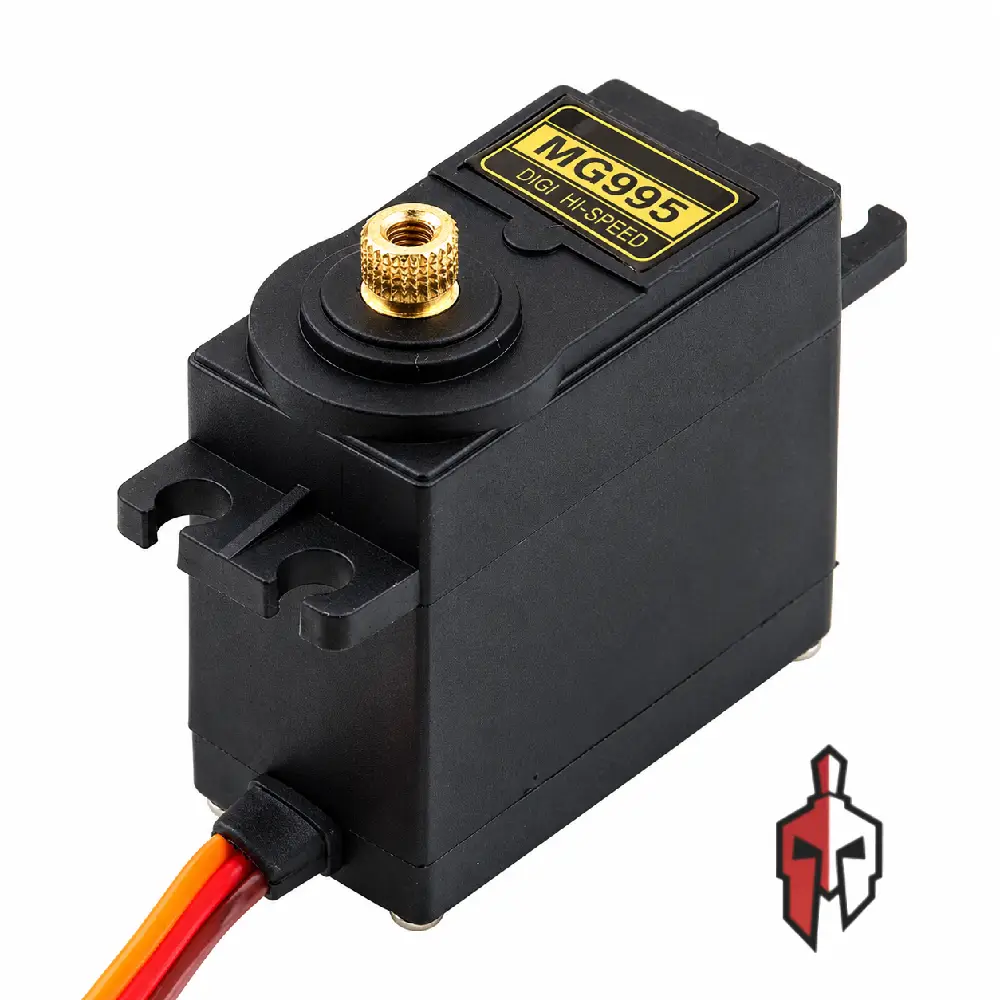

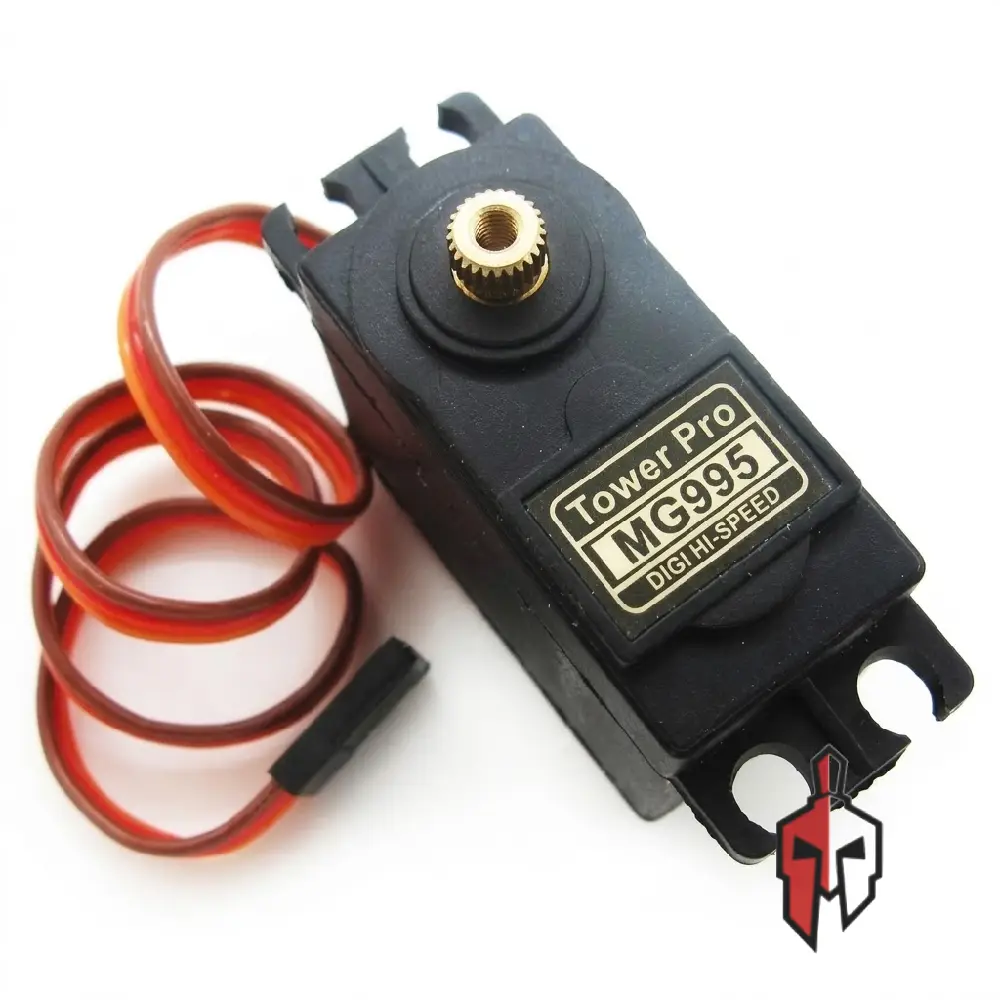

MG995 Tower Pro Digital Servo
Rs 1,690.00
Quick Info:
- Gear Type : Metal
- Rotation Angle : 180°
- Operating Voltage : 4.8V to 7.2V
- Stall Torque : 9.4kg-cm (4.8V) / 11kg-cm (6V)
- Operating Speed : 0.20s/60° (4.8V) / 0.16s/60° (6V)
- Weight : 55g
The MG995 Tower Pro Digital Servo is a popular high-torque metal gear servo that gives your projects strong, precise movement. It rotates through roughly 180 degrees and responds to a standard PWM signal, so it works with Arduino, ESP32, Raspberry Pi, other microcontrollers, and RC receivers.
With up to 11kg-cm of stall torque at 6V and a speed of 0.16 seconds per 60 degrees, it handles heavy loads such as arm joints and steering linkages that small micro servos cannot. The metal gear train holds up under repeated use, and the standard-size body fits common servo brackets and mounts. A standard 3-pin JR connector makes wiring simple.
It is a favourite for robotic arms, RC cars, boats, planes, pan-tilt camera mounts, and automation builds by hobbyists, makers, and students. For best results, power the servo from a separate supply within its rated voltage range and join the grounds together instead of drawing power from the microcontroller board.
Specification:
- Servo Type : Digital
- Gear Type : Metal
- Rotation Angle : 180°
- Operating Voltage : 4.8V to 7.2V
- Stall Torque : 9.4kg-cm (4.8V) / 11kg-cm (6V)
- Operating Speed : 0.20s/60° (4.8V) / 0.16s/60° (6V)
- Control Signal : PWM
- Connector : 3-Pin JR Type
- Dimensions : 40.7mm x 19.7mm x 42.9mm
- Weight : 55g
