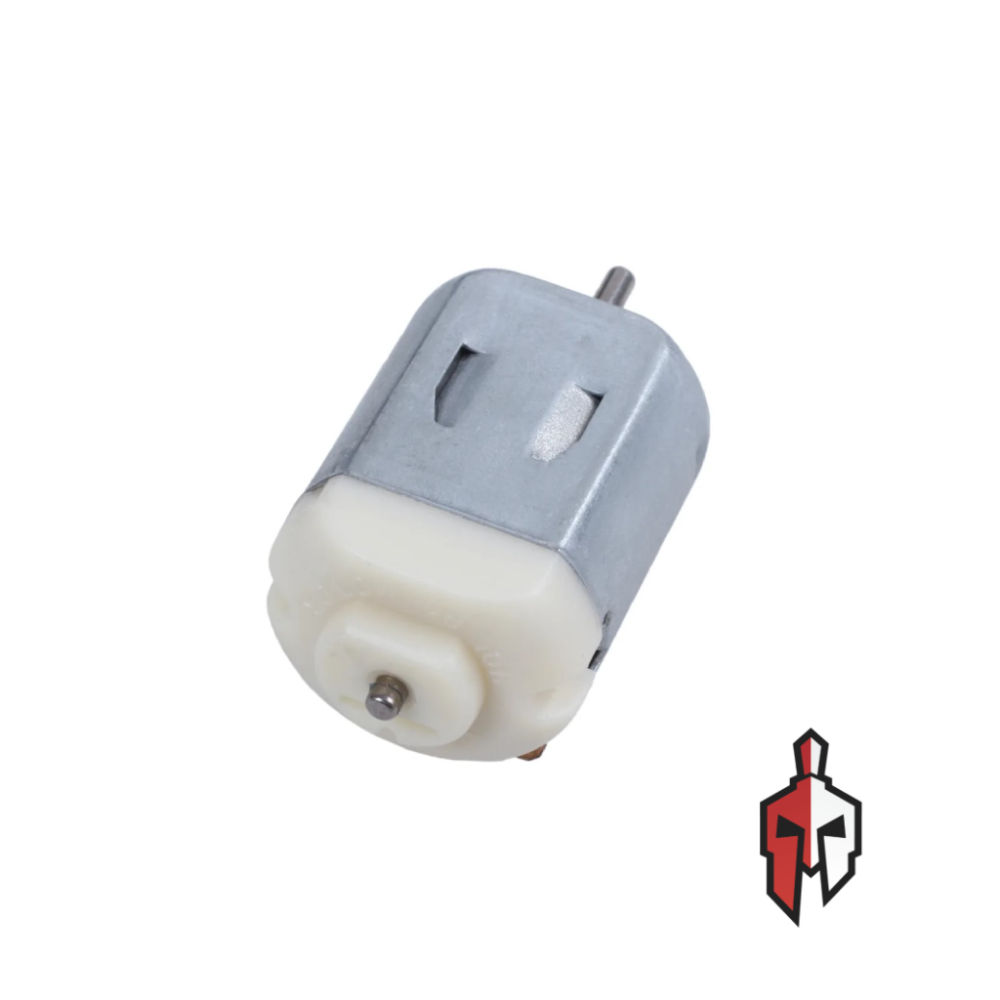

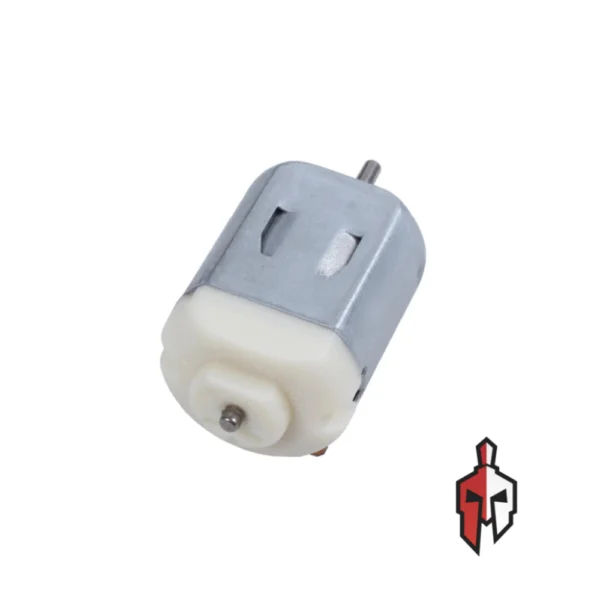

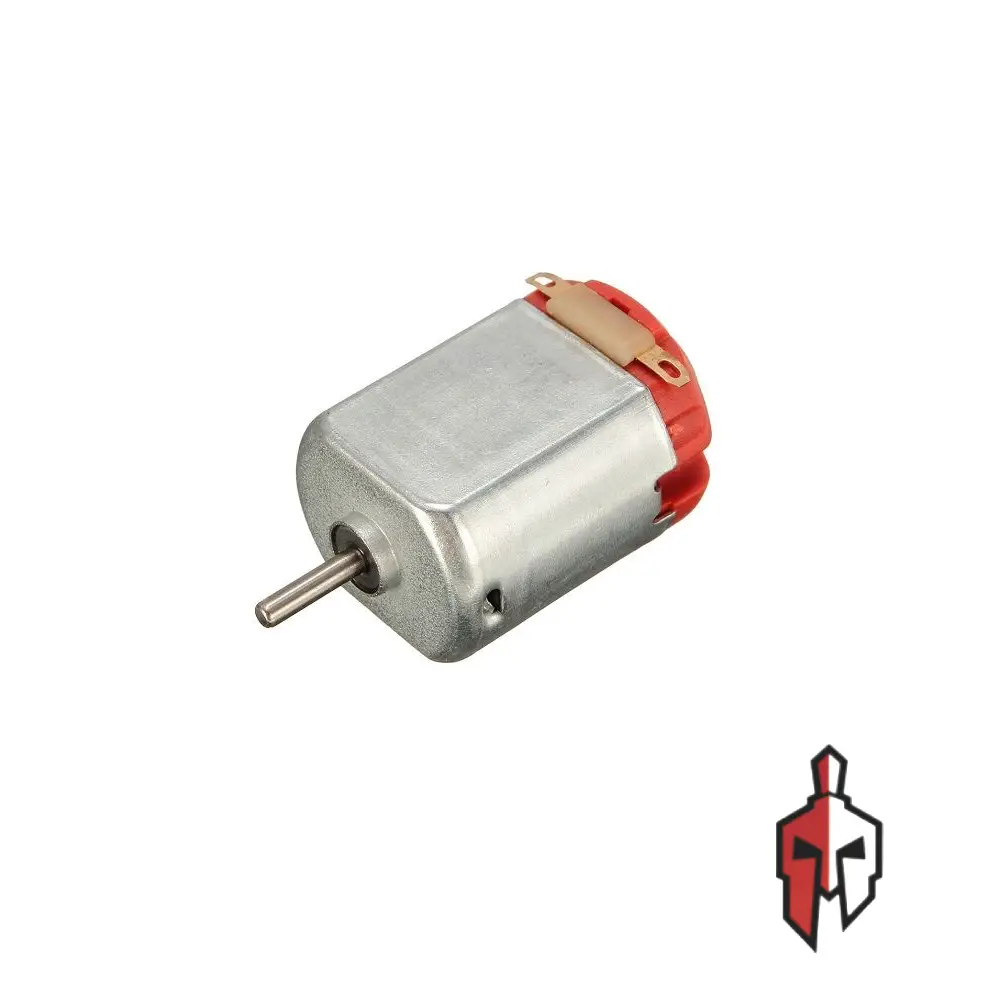

DC Toy Motor
Rs 60.00Rs 100.00 (-40%)
Quick Info :
- Motor Model : DC 130 (FC-130 / RE-130)
- Operating Voltage : 3V – 10V DC
- No-Load Speed : ~8000 RPM @ 3V / ~9100 RPM @ 6V
- Stall Current : 500mA max @ 6V
- Starting Torque : 20 g·cm
- Shaft : 2mm dia × 8mm length
- Body Size : 27.5 × 20 × 15mm
- Weight : ~17g
- Terminal : Solder tab (reversible polarity)
- Compatible Drivers : L298N / L293D / TB6612FNG / L9110S
The DC 130 Hobby Motor is the most widely used small brushed DC motor in the maker, STEM, and toy electronics world — a compact, affordable, and instantly recognisable rectangular metal-can motor that forms the drivetrain heart of toy cars, model aircraft, small fans, mini pumps, educational robotics kits, and countless DIY gadgets. Featuring an all-metal housing, permanent magnet field, carbon brushes, and a hardened steel output shaft, it delivers reliable high-speed rotation with minimal complexity — voltage goes in, rotation comes out.
With a wide operating voltage range of 3V to 10V DC and a no-load speed of approximately 8000 RPM at 3V — scaling upward with increasing voltage — this motor provides versatile speed performance across many supply voltages. The 2mm diameter × 8mm length round steel output shaft is compatible with standard 2mm bore gears, propellers, wheels, pulleys, and couplers widely available in the hobby and maker ecosystem. Two solder tab terminals on the rear end cap allow fast, direct wire soldering, and the motor is reversible simply by swapping the supply polarity.
Fully compatible with all popular motor driver boards including the L298N, L293D, TB6612FNG, DRV8833, and the L9110S — and directly controllable via PWM for variable speed. An essential component for robot chassis builds, cooling fans, toy car repairs, propeller drives, and any application requiring a small, lightweight, high-speed DC motor. Widely used in STEM education kits, Arduino robot projects, and hobby craft applications worldwide.
Specifications :
- Motor Type : 130 Brushed DC (permanent magnet)
- Motor Model : 130 (FC-130 / RE-130 / DC-130)
- Operating Voltage : 3V – 10V DC
- Rated Voltage : 3V DC (typical low-voltage spec)
- No-Load Speed : ~8000 RPM @ 3V / ~9100 RPM @ 6V
- No-Load Current : 70mA max @ 6V
- Rated Load : 10 g·cm
- Loaded Speed : 4500 ±1500 RPM @ 6V
- Loaded Current : 250mA max @ 6V
- Starting Torque : 20 g·cm
- Starting Voltage : 2.0V
- Stall Current : 500mA max @ 6V
- Shaft Diameter : 2mm
- Shaft Length : 8mm
- Body Dimensions : 27.5 × 20 × 15mm
- Total Length (with shaft) : ~38mm
- Weight : ~17g
- Terminal Type : Solder tab (2 × rear terminals)
- Direction : Reversible (polarity swap)
- Compatible Motor Drivers : L298N, L293D, TB6612FNG, DRV8833, L9110S
- Package Includes : 1 × DC 130 Brushed Hobby Motor
