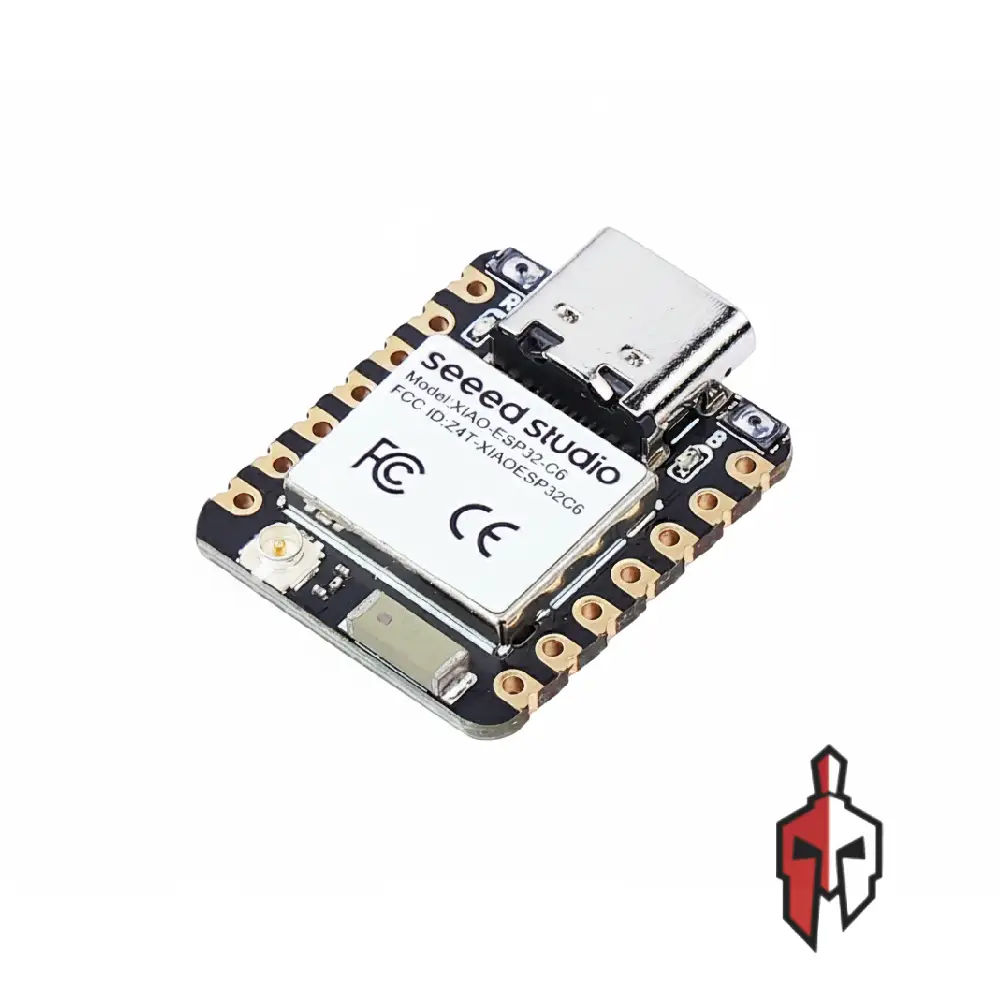

Seeed Studio XIAO ESP32 C6 Development Board

The Seeed Studio XIAO ESP32C6 is a compact and powerful development board that brings next-generation wireless connectivity to the popular XIAO form factor. Powered by the ESP32-C6 SoC, this board features a dual RISC-V processor architecture, combining a high-performance core with a low-power core for superior efficiency. Its comprehensive wireless stack supports Wi-Fi 6, Bluetooth 5 (LE), Zigbee, and Thread, making it an ideal choice for Matter-compliant smart home and IoT projects. With its ultra-small size, rich set of peripherals, and support for lithium battery charging, it is the perfect tool for creating space-limited and battery-powered applications, from wearables to connected sensors.

Specifications :

• Processor: ESP32-C6 SoC (Dual 32-bit RISC-V cores)
  • High-Performance Core: Up to 160MHz
  • Low-Power Core: Up to 20MHz
• Wireless Connectivity:
  • Wi-Fi 6 (802.11ax) 2.4GHz
  • Bluetooth 5.0 (LE)
  • Zigbee & Thread (802.15.4)
• Memory:
  • 512KB SRAM
  • 4MB Flash
• Interfaces:
  • 11x GPIO (PWM)
  • 7x ADC (12-bit)
  • 1x UART, 1x IIC, 1x SPI
• Dimensions: 21 x 17.5 mm
• Power: USB Type-C (5V), LiPo Battery (4.2V)
• Features: On-board antenna, battery charge management, on-chip security
