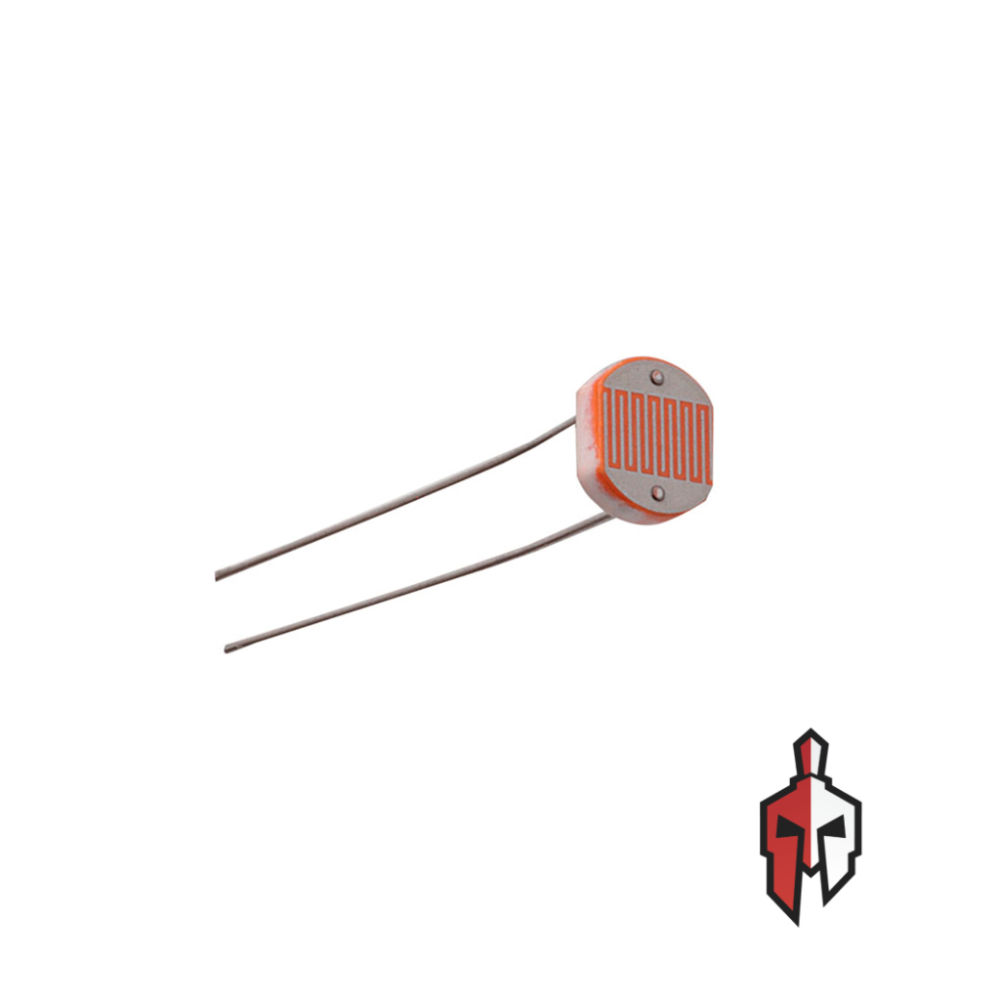

LDR Sensor 5mm
Rs 15.00
Quick Info :
- Dark Resistance : ≥ 1MΩ (at 10 Lux)
- Diameter : 5mm
- Material : Cadmium Sulfide
- Light Resistance : 5kΩ to 20kΩ (at 100 Lux)
- Spectral Peak : ~540 nm
- Power Rating : 100mW
Frequently Bought Together
- This item: LDR Sensor 5mm(Rs 15.00)
- LDR Light Sensitive Module(Rs 130.00)
- 1N4007 1A 1000V General Purpose Rectifier Diode(Rs 5.00)
The LDR 5mm (Light Dependent Resistor) is a light-sensitive device that changes its resistance based on the intensity of light falling on its surface. In darkness, its resistance is high, while in bright light, the resistance drops significantly, making it perfect for detecting light levels in various applications.
Specification :
- Dark Resistance : ≥ 1MΩ (at 10 Lux)
- Diameter : 5mm
- Material : Cadmium Sulfide
- Light Resistance : 5kΩ to 20kΩ (at 100 Lux)
- Spectral Peak : ~540 nm
- Power Rating : 100mW
- Operating Voltage : Compatible with 3.3V to 5V systems
