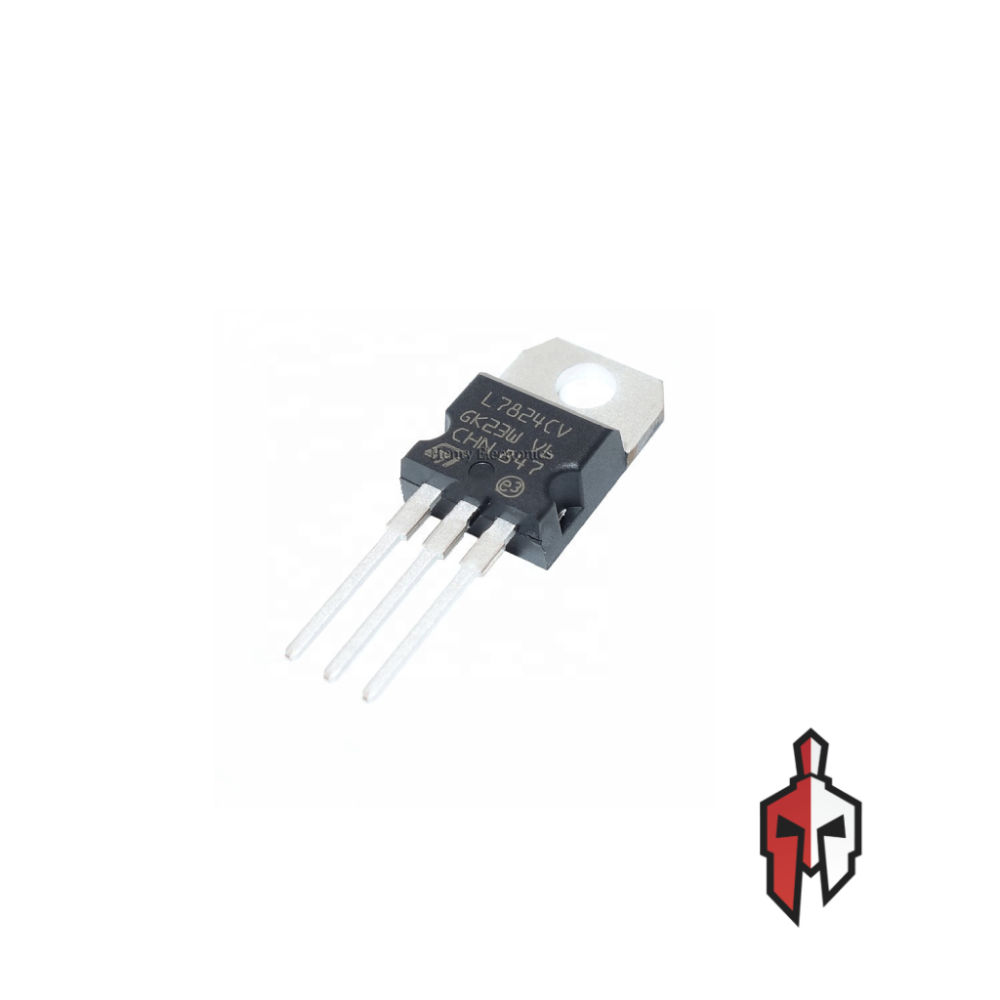

L7824 Voltage Regulator
Rs 75.00
Quick Info :
- Regulator Type : Linear, Fixed
- Output Voltage : 24V
- Input Voltage Range : 26V – 38V
- Output Current : Up to 1.5A
- Dropout Voltage : ≤ 2V at 1A Load
- Line Regulation : ≤ 50mV
The L7824 is a fixed 24V linear voltage regulator from the L78xx series, designed to provide a stable 24V DC output with high reliability and low dropout voltage. It is widely used in power supply circuits, battery chargers, and industrial electronics to regulate and stabilize voltage for sensitive components.
Specification :
- Regulator Type : Linear, Fixed
- Output Voltage : 24V
- Input Voltage Range : 26V – 38V
- Output Current : Up to 1.5A
- Dropout Voltage : ≤ 2V at 1A Load
- Line Regulation : ≤ 50mV
- Load Regulation : ≤ 100mV
- Quiescent Current : 8mA
- Ripple Rejection : 60dB
- Efficiency : Up to 80%
