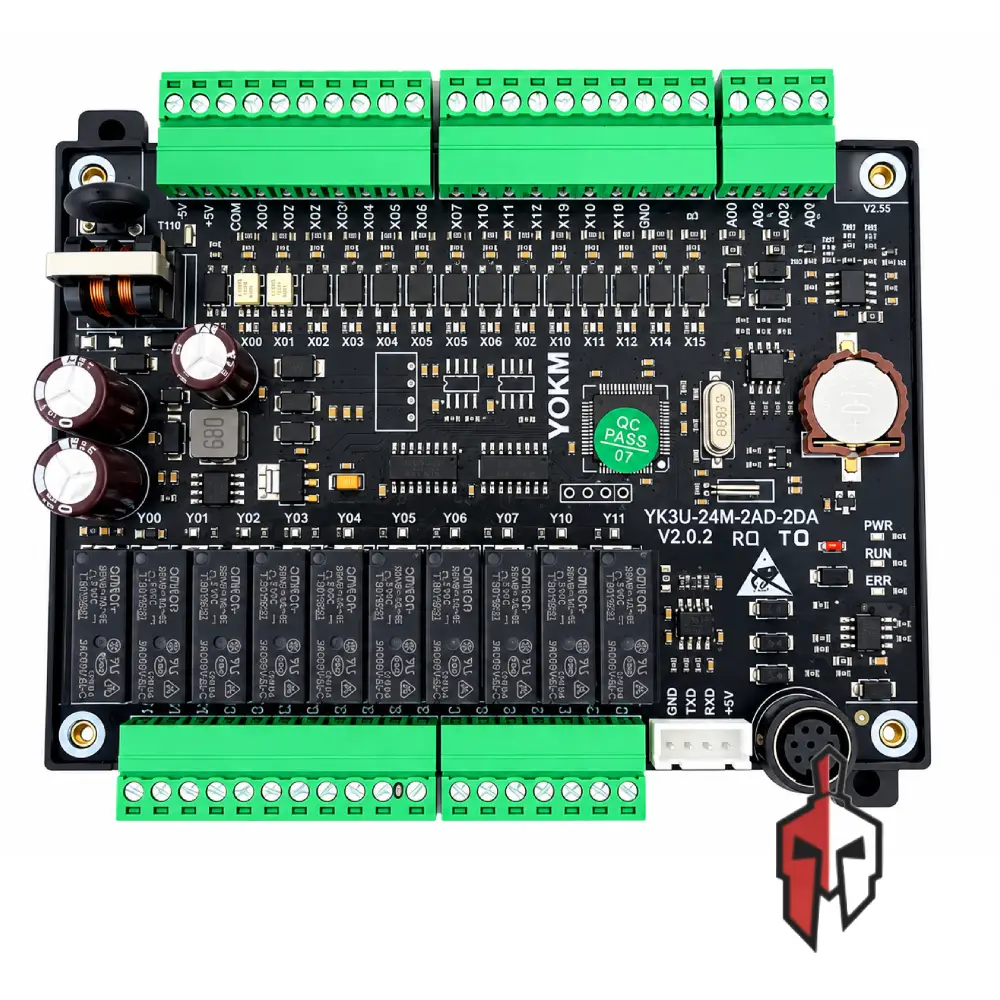

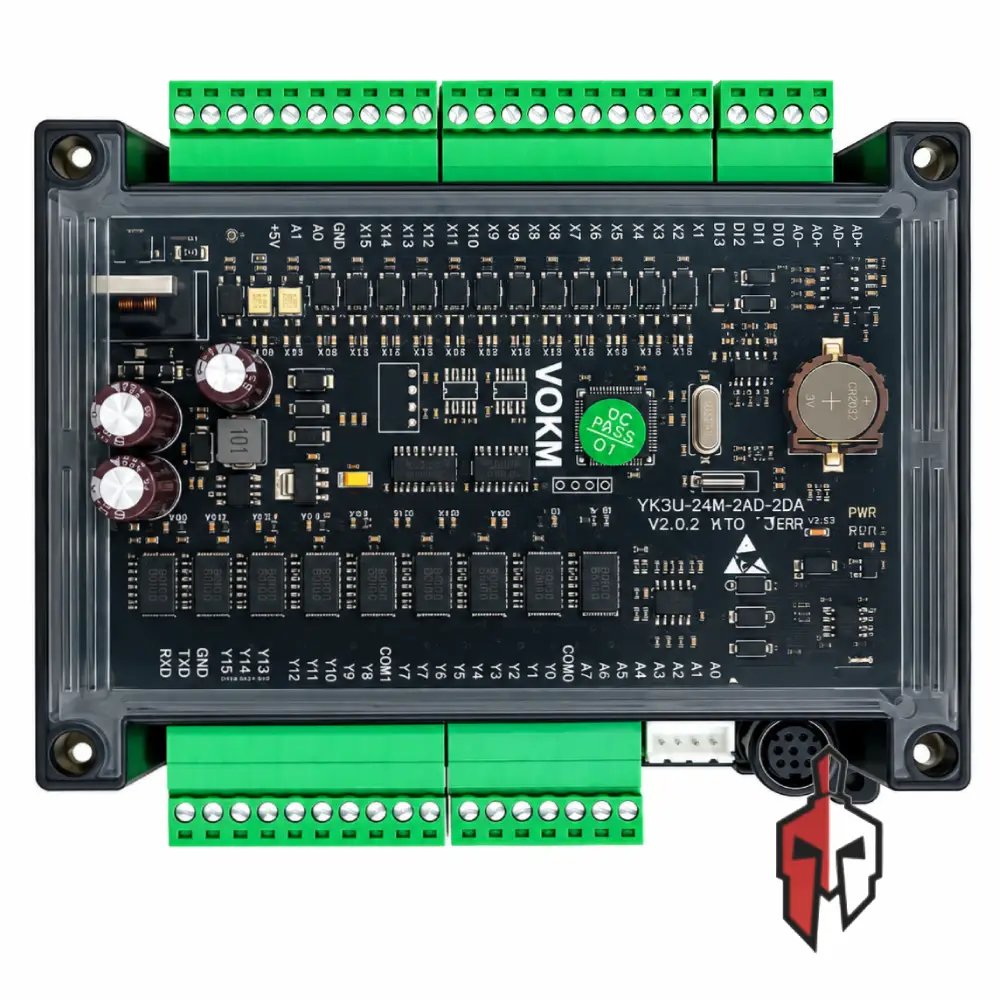

FX3U-24MR 2AD 2DA PLC Control Module DC 24V

The VOKM FX3U-24MR 2AD 2DA is a compact, industrial-grade Programmable Logic Controller (PLC) board based on the widely adopted Mitsubishi FX3U instruction set, making it a cost-effective solution for factory automation, process control, and machinery management projects. Powered by a 32-bit industrial microcontroller with strong EMI interference protection, it is designed for reliable, high-speed performance in demanding industrial environments — running on a standard DC 24V / 24W supply.

This module provides 14 digital input points (X0–X15) and 10 relay output points (Y0–Y11), with each relay output rated at 5A — capable of directly switching AC contactors, intermediate relays, solenoid valves, and other industrial loads. Inputs X0–X5 support high-speed counting up to 12KHz for encoder and pulse measurement applications. Two built-in 12-bit analog input channels (2AD) accept 0–10V voltage or 0–20mA current signals — directly interfacing with temperature, pressure, flow, and level sensors without additional modules. Two analog output channels (2DA) provide 0–10V voltage output at 12-bit resolution for variable speed drive control, valve positioning, and actuator applications.

Onboard RS232 and RS485 communication ports enable serial connectivity with HMI panels, SCADA systems, and Modbus devices. A built-in real-time clock (RTC) and run/stop switch are included as standard. Programming is performed in standard Ladder Logic via GX Developer or GX Works2 software, with an 8000-step EEPROM program memory and power-off data retention across key registers, timers, and counters. Floating point arithmetic, subroutines, and interrupt routines are fully supported.

Specification:

• Model : VOKM 3U-24M-2AD-2DA (FX3U-24MR compatible)
• Power Supply : DC 24V / 24W
• Processor : 32-bit industrial microcontroller
• Total I/O Points : 24
• Digital Inputs : 14 (X0–X15, NPN sink, DC 24V)
• Digital Outputs : 10 relay (Y0–Y11, 5A per output)
• High-Speed Inputs : 6 channels (X0–X5) up to 12KHz
• Analog Inputs (2AD) : 2 channels, 12-bit — 0–10V voltage / 0–20mA current
• Analog Outputs (2DA) : 2 channels, 12-bit — DA0–DA1: 0–10V
• Program Memory : 8000 steps EEPROM
• Timers : T0–T383 (100ms / 10ms / 1ms)
• Counters : C0–C255 (16-bit & 32-bit including high-speed)
• Data Registers : D0–D7999 (power-off storage)
• Communication : RS232 + RS485
• Real-Time Clock (RTC) : Built-in
• Run/Stop Switch : Built-in
• Programming Language : Ladder Logic
• Programming Software : GX Developer / GX Works2
• Floating Point Support : Yes
• HMI Compatible : Yes
• Package Includes : 1 × FX3U-24MR 2AD 2DA PLC Module
