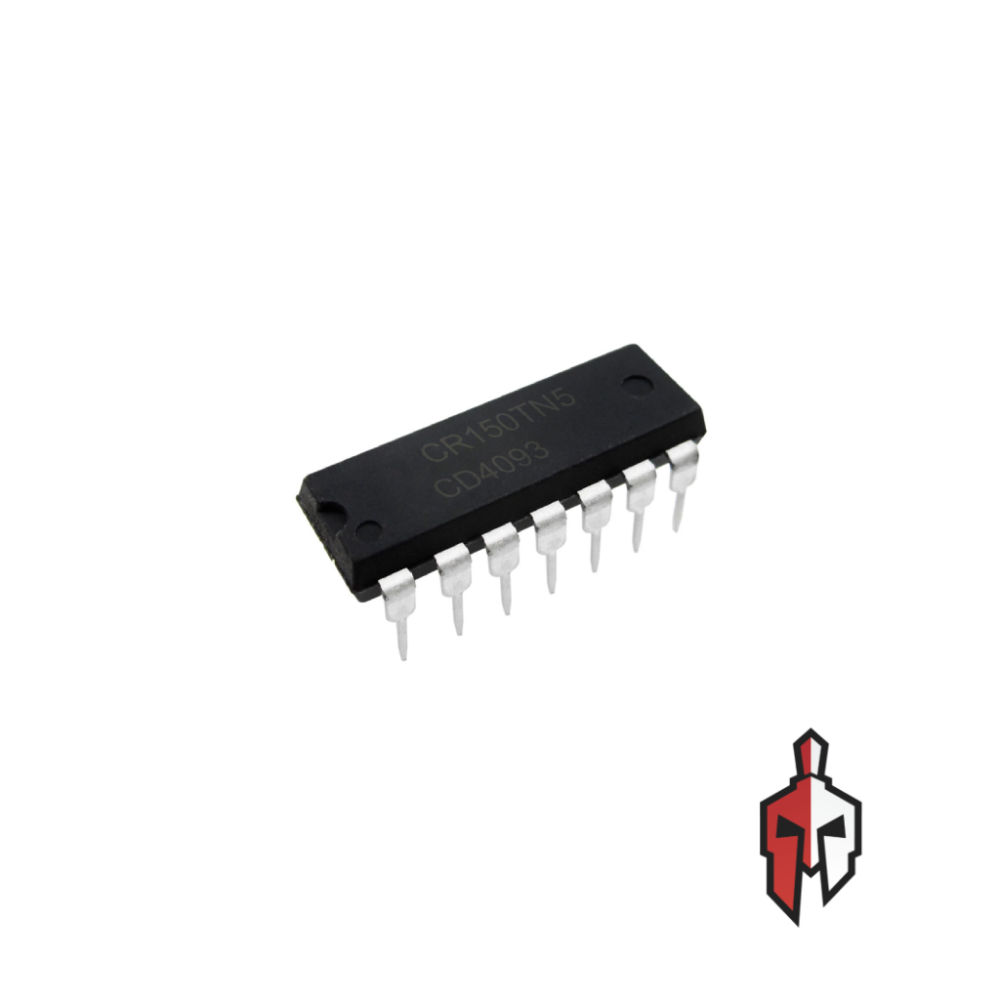

CD4093 Quad 2-Input NAND Schmitt Trigger
Rs 70.00
Quick Info :
- IC Type : Quad 2-Input NAND Schmitt Trigger
- Logic Family : CMOS
- Supply Voltage : 3V to 15V
- Input Voltage Range : (Vin) 0V to Vdd
- Output Voltage : 0V to Vdd
- Hysteresis Voltage : Typically 0.4V at 5V Vdd
The CD4093 is a CMOS-based Quad 2-Input NAND Schmitt Trigger IC designed for noise-immune logic switching and waveform shaping applications. Each of the four NAND gates within the IC features Schmitt trigger action, which provides hysteresis and ensures stable output transitions even with slow or noisy input signals.
Specification :
- IC Type : Quad 2-Input NAND Schmitt Trigger
- Logic Family : CMOS
- Supply Voltage : 3V to 15V
- Input Voltage Range : (Vin) 0V to Vdd
- Output Voltage : 0V to Vdd
- Hysteresis Voltage : Typically 0.4V at 5V Vdd
- Propagation Delay : 50ns
- Maximum Clock Frequency : 5MHz
