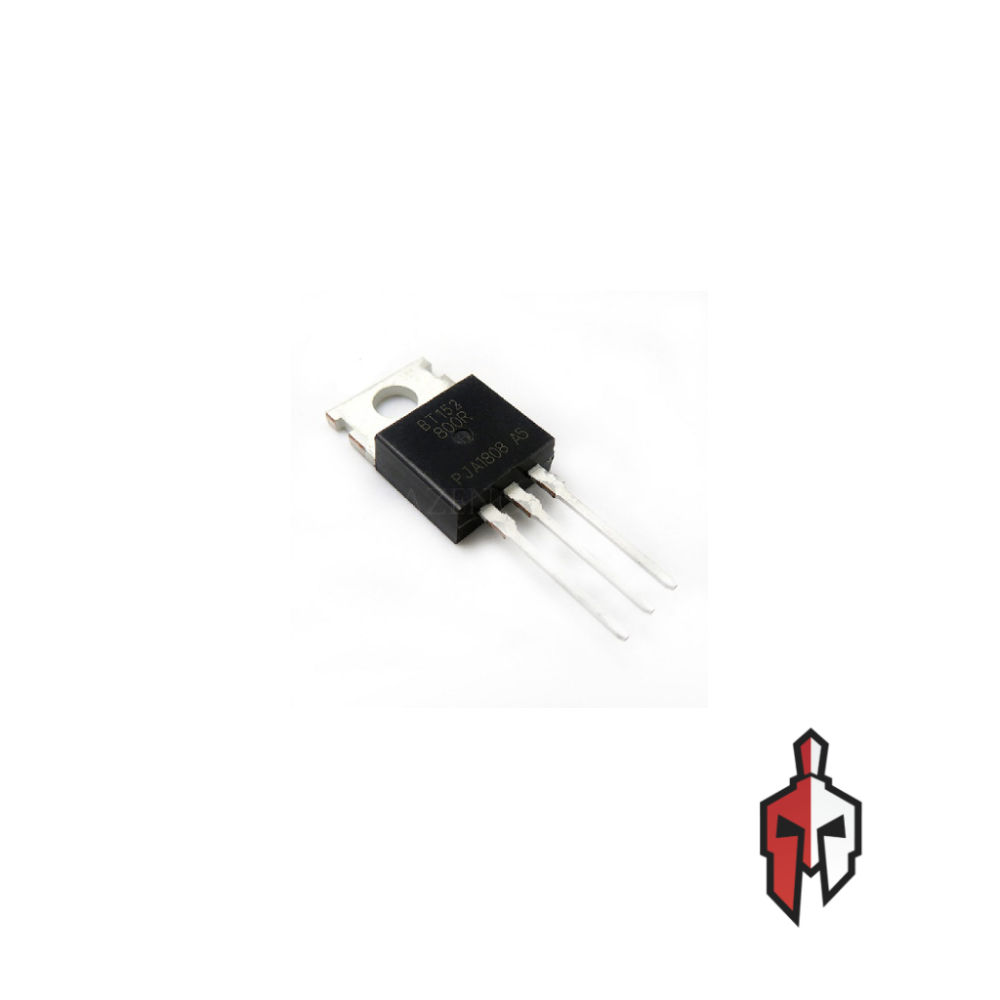

BT152 Thyristor

The BT152 is a silicon-controlled rectifier (SCR) designed for medium to high-power switching applications. It is commonly used in AC switching, motor control, heater control, and rectifier circuits due to its high surge current capability and fast switching characteristics.

Specification :

• Device Type : Silicon-Controlled Rectifier
• Package Type : TO-220
• Repetitive Peak Off-State Voltage :  800V
• Non-Repetitive Peak Surge Current :  200A
• On-State RMS Current  : 20A
• Gate Trigger Voltage  : 1.5V
• Gate Trigger Current  : 15mA
• Holding Current :  40mA
• On-State Voltage  : 1.5V (at 20A)
• Operating Temperature : -40°C to 125°C
