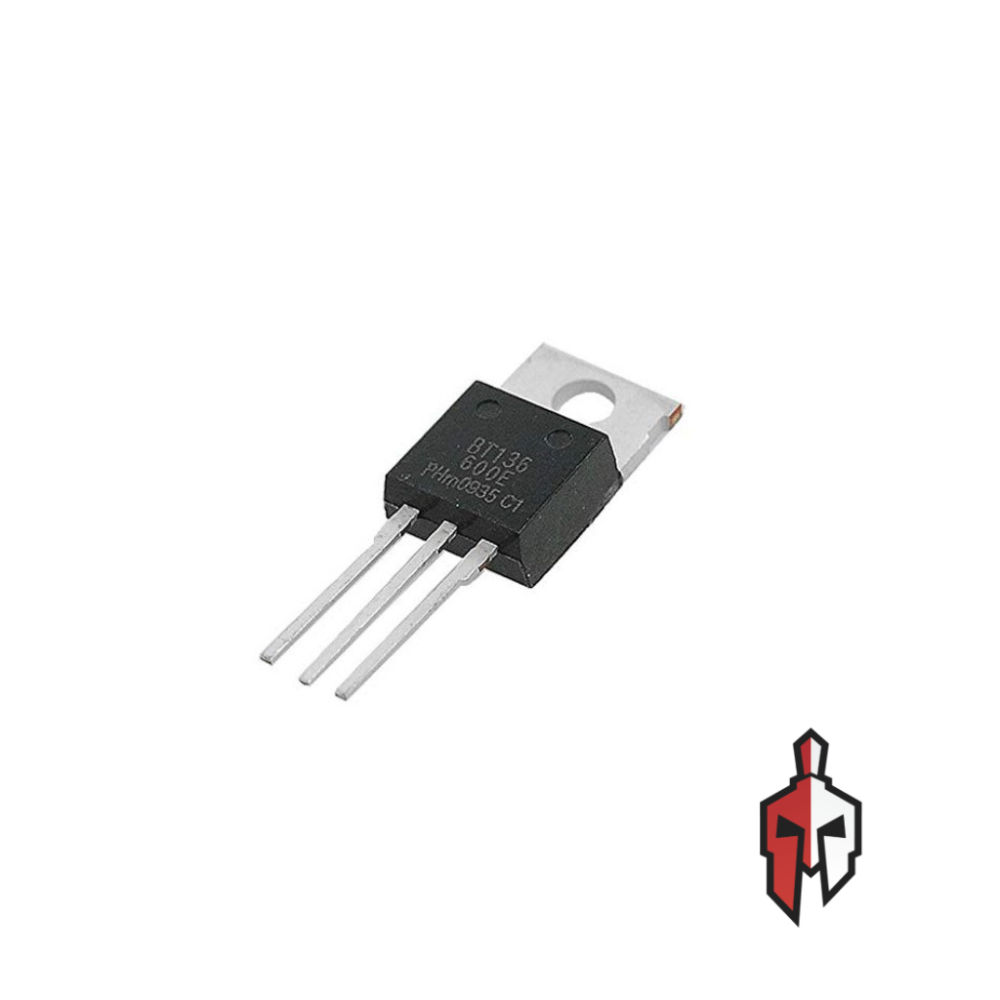

BT136 Triac Transistor
Rs 75.00
Quick Info :
- RMS On-State Current : 4 A
- Non-Repetitive Surge Current : 25 A (for 20 ms)
- Gate Trigger Current : 5 mA (max)
- Gate Trigger Voltage : 1.5 V (typical)
- Holding Current : 2.2 mA
- Latching Current : 2.2 mA
Frequently Bought Together
- This item: BT136 Triac Transistor(Rs 75.00)
- 2SD313 NPN Power Transistor(Rs 100.00)
- BD140 PNP Transistor(Rs 30.00)
- TIP121 NPN Darlington Transistor(Rs 60.00)
The BT136 is a popular and widely used Triac (Triode for Alternating Current) designed for switching and phase control applications. It’s commonly found in light dimmers, motor speed controls, and other AC switching circuits.
Specification :
- Repetitive Peak Off-State Voltage (V<sub>DRM</sub>, V<sub>RRM</sub>) : 600 V
- RMS On-State Current : 4 A
- Non-Repetitive Surge Current : 25 A (for 20 ms)
- Gate Trigger Current : 5 mA (max)
- Gate Trigger Voltage : 1.5 V (typical)
- Holding Current : 2.2 mA
- Latching Current : 2.2 mA
- On-State Voltage : 1.7 V (max) at 4 A
