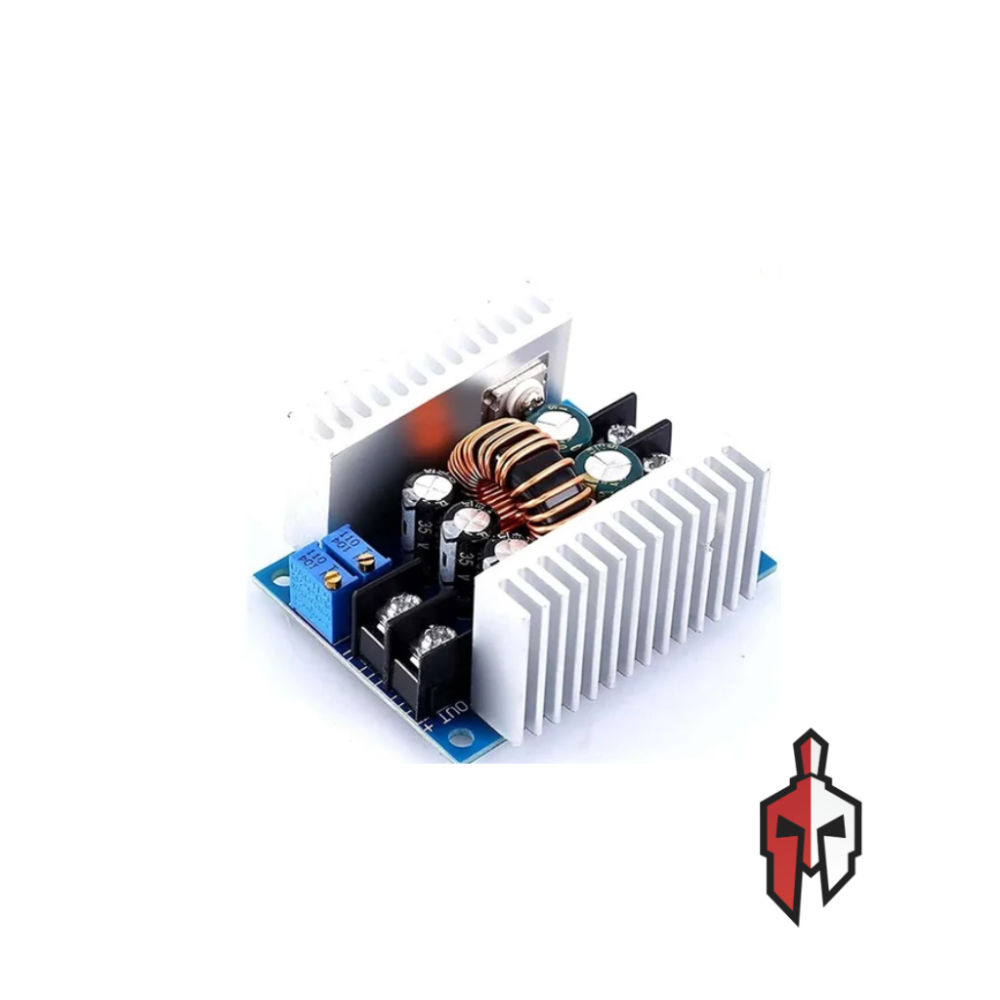

300W 20A Step Down Buck Converter
Rs 1,290.00
Quick Info :
- Input Voltage Range : 6V – 40V DC
- Output Voltage Range : 1.2V – 36V DC (adjustable)
- Maximum Output Current : 20A
- Maximum Output Power : 300W
- Conversion Efficiency : Up to 95%
- Ripple : ≤50mV
Frequently Bought Together
- This item: 300W 20A Step Down Buck Converter(Rs 1,290.00)
- DC-DC Step-Down Buck Converter (24V/12V to 5V 5A 25W)(Rs 1,350.00)
- LM2596 DC to DC Step down (Buck) Adjustable Module(Rs 250.00
Rs 290.00) - XL4015 DC to DC Step down (Buck) Adjustable Module(Rs 340.00
Rs 480.00)
The 300W 20A Step Down Buck Converter is a high-efficiency DC-DC power supply module designed to step down voltage from a higher source to a stable, lower output. With a maximum output of 300W and 20A, it’s perfect for applications requiring reliable power delivery, such as battery charging, LED drivers, DIY electronics, solar power systems, and automotive projects.
Specification :
- Input Voltage Range : 6V – 40V DC
- Output Voltage Range : 1.2V – 36V DC (adjustable)
- Maximum Output Current : 20A
- Maximum Output Power : 300W
- Conversion Efficiency : Up to 95%
- Ripple : ≤50mV
- Operating Temperature : -40°C to +85°C
- Cooling Method : Integrated heat sink
- Dimensions : Approx. 65mm x 47mm x 28mm
- Protection Features : Over-current, over-temperature, short-circuit protection
