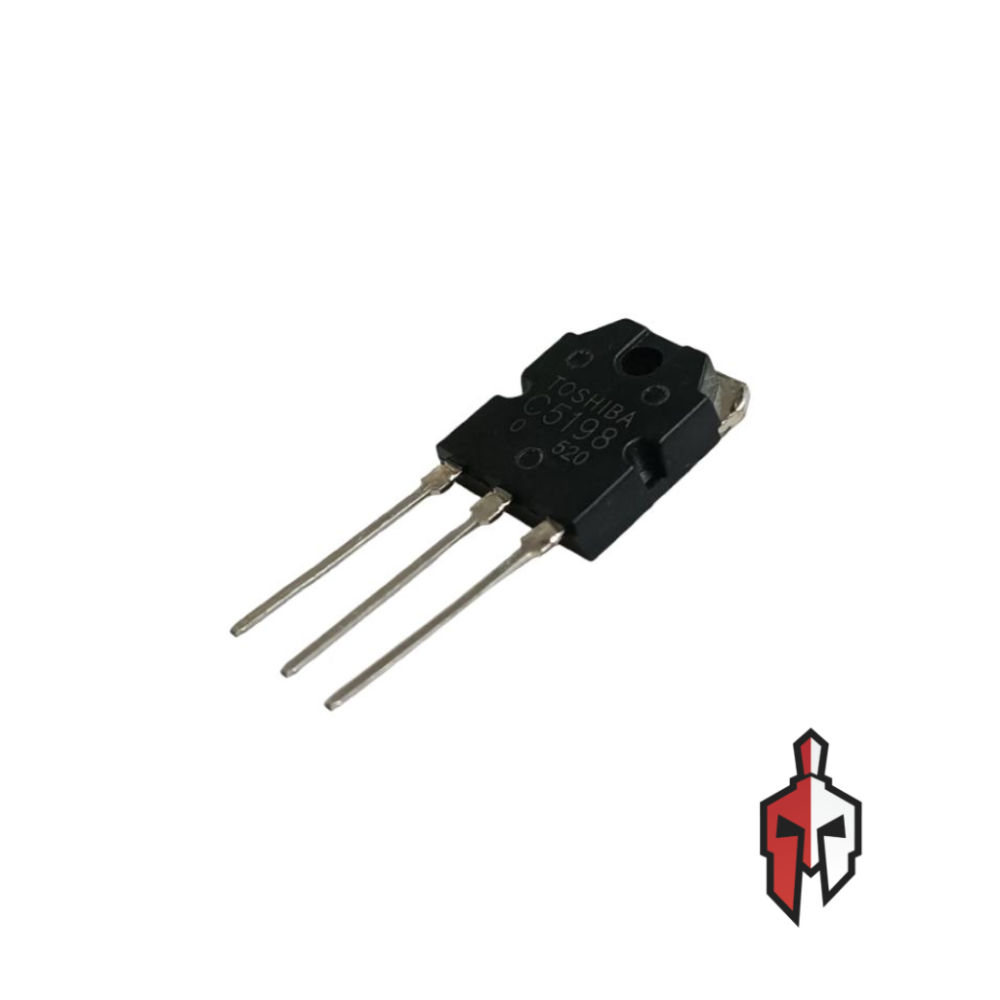

2SC5198 NPN Transistor

The 2SC5198 is a high-power NPN transistor designed for audio amplifier and power switching applications. With a high collector-emitter voltage (V_CEO) of 140V, high current handling (10A), and low saturation voltage, it ensures efficient performance in high-fidelity audio amplifiers, power supplies, and industrial control systems.

Specification :

• Transistor Type : NPN
• Collector-Emitter Voltage   : 140V
• Collector-Base Voltage   : 140V
• Emitter-Base Voltage   : 5V
• Continuous Collector Current   : 10A
• Pulsed Collector Current   : 15A
• DC Current Gain   : 55 – 160
• Collector-Emitter Saturation Voltage   : ≤ 3V
• Transition Frequency   : 30MHz
