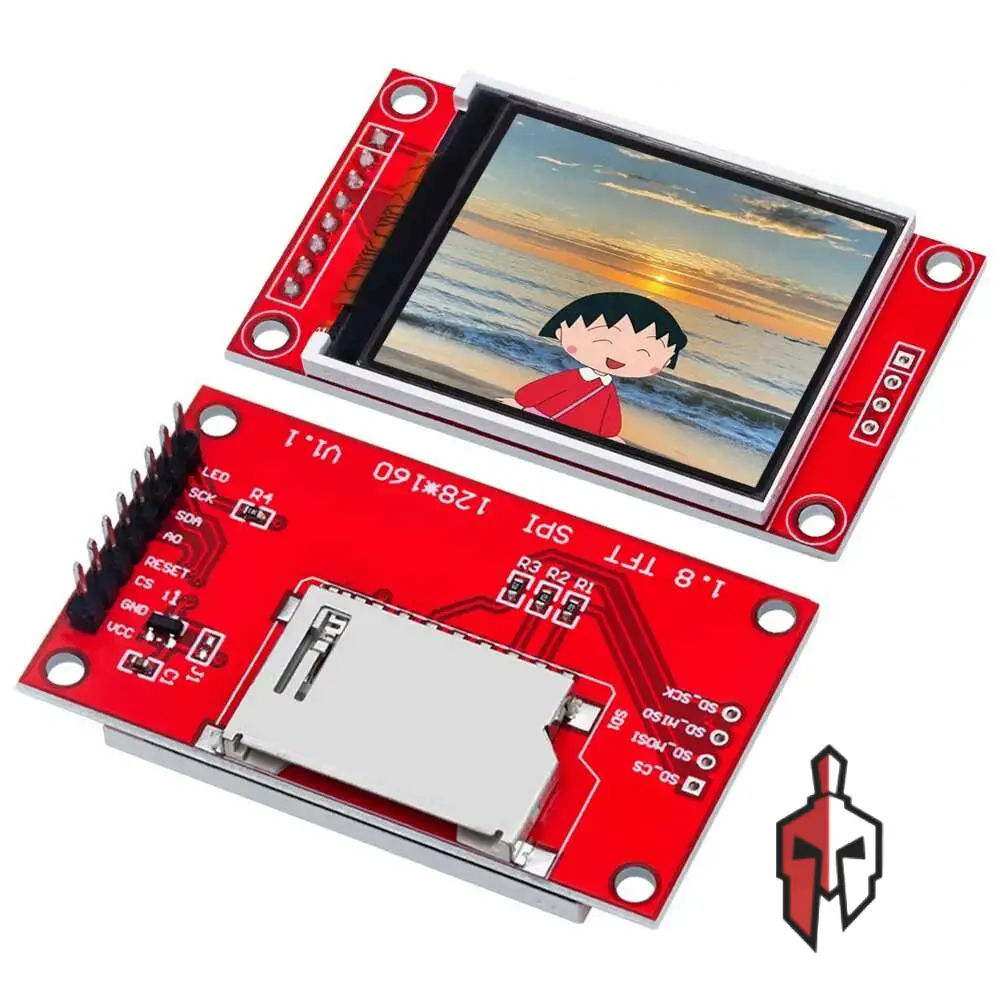

TFT LCD Display Module 1.8″ SPI Interface 128×160
Rs 1,490.00
Quick Info :
- True TFT display with 262,144 vibrant colors
- 4-wire SPI interface – minimal pin usage
- Works with 3.3V and 5V systems
- Built-in microSD card slot for bitmap storage
- Compatible with Arduino, Raspberry Pi, ESP32
- Controllable LED backlight
- Compact 34.5×58.0mm PCB size
The 1.8-inch TFT LCD Display Module features SPI interface with 128×160 resolution, delivering vibrant colors through its ST7735 driver supporting 262,144 shades. Unlike cheap CSTN displays, this true TFT module offers superior color accuracy and fast refresh rates. Built-in 3.3V regulator and level shifter ensure compatibility with both 3.3V and 5V systems. The integrated microSD slot allows direct bitmap loading from FAT16/FAT32 cards. Perfect for Arduino, Raspberry Pi, and microcontroller projects requiring high-quality visual displays with minimal pin usage.
Specification :
- Display Size : 1.8 inches
- Resolution : 128×160 pixels
- Display Type : TFT LCD
- Driver IC : ST7735
- Interface : 4-wire SPI
- Color Depth : 18-bit (262,144 colors)
- Power Supply : 3.3V – 5V
- Logic Voltage : 3.3V TTL
- Active Area : 28.03×35.04mm
- PCB Size : 34.5×58.0mm
- Operating Temperature : -20°C to +60°C
- Storage Temperature : -30°C to +70°C
- Pin Count : 8 pins
- MicroSD Support : FAT16/FAT32
- Backlight : Controllable LED
