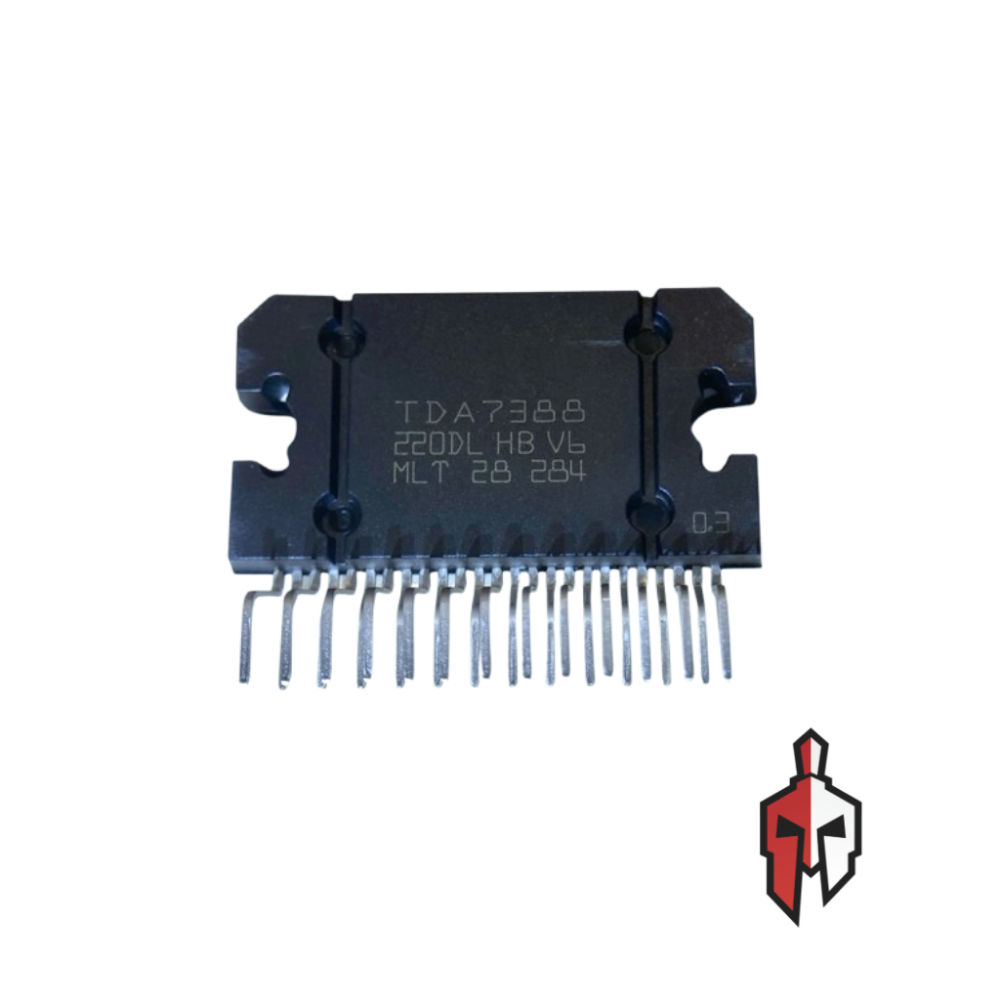

TDA7388 Audio Amplifier IC
Rs 650.00
Quick Info :
- Type: Quad Bridge Class AB Audio Amplifier
- Number of Channels: 4
- Operating Voltage Range: 6V – 18V (Typical: 14.4V)
- Maximum Power Output: 4 x 41W (at 4Ω, 14.4V, 10% THD)
- Nominal Output Power: 4 x 25W (at 4Ω, 14.4V, 1% THD)
- Load Impedance: 4Ω to 8Ω
Frequently Bought Together
- This item: TDA7388 Audio Amplifier IC(Rs 650.00)
- TDA7265 25 +25W Stereo Amplifier(Rs 650.00)
- TDA7297 15+15W Dual Bridge Amplifier(Rs 720.00)
- TDA7377 30W+30W Dual/Quad Power Amplifier(Rs 650.00)
The TDA7388 is a high-performance quad bridge power amplifier IC designed primarily for car audio applications. This integrated class AB amplifier delivers high power output with low distortion and low noise, making it ideal for high-fidelity sound systems
specification :
- Type: Quad Bridge Class AB Audio Amplifier
- Number of Channels: 4
- Operating Voltage Range: 6V – 18V (Typical: 14.4V)
- Maximum Power Output: 4 x 41W (at 4Ω, 14.4V, 10% THD)
- Nominal Output Power: 4 x 25W (at 4Ω, 14.4V, 1% THD)
- Load Impedance: 4Ω to 8Ω
- Total Harmonic Distortion (THD): 0.02% (1W, 1kHz)
- Signal-to-Noise Ratio (SNR): ≥ 85dB
- Channel Separation: ≥ 50dB
- Standby Current: ≤ 2µA
