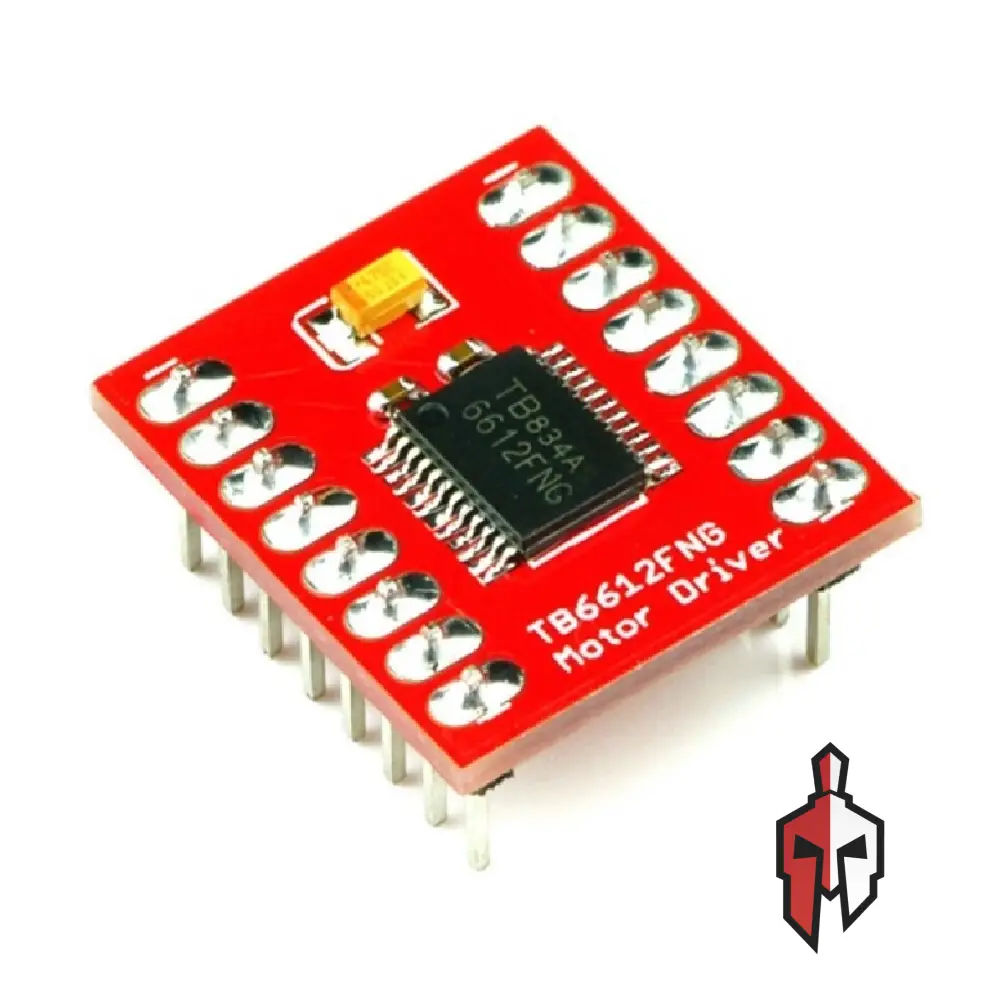

TB6612FNG Dual DC Stepper Motor Driver Module

The TB6612FNG Dual DC/Stepper Motor Driver Module offers an efficient solution for driving two DC motors or a bipolar stepper motor with precision. Built around the TB6612FNG chip, this module supports two H-bridges delivering up to 1.2 A continuous and 3.2 A peak current per channel. Its logic supply ranges from 2.7 V to 5.5 V, while the motor supply (VM) can go up to 15 V. It features control pins for forward/reverse, short-brake, and stop modes, with a dedicated standby pin to reduce power when inactive. Onboard decoupling capacitors help stabilize the power supply, and all pins are neatly broken out on 0.1″ pitch headers for easy integration with microcontrollers such as Arduino or Raspberry Pi. Compact and robust, this driver module is perfect for robotics, automation, and maker projects where smooth and reliable motor control is essential.

Specification :

• Motor Driver IC : TB6612FNG
• Logic Voltage (VCC) : 2.7 V – 5.5 V
• Motor Supply Voltage (VM) : Up to 15 V
• Output Current : 1.2 A continuous per channel / 3.2 A peak per channel
• Number of Channels : 2 (two independent H-bridge outputs)
• Control Modes : CW, CCW, short-brake, stop (via IN1/IN2)
• PWM Frequency : Up to 100 kHz
• Standby Support : STBY pin to reduce power when idle
• Built-in Protections : Thermal shutdown & low-voltage detection
• Board Dimensions : 0.8″ × 0.8″ (approx.)
