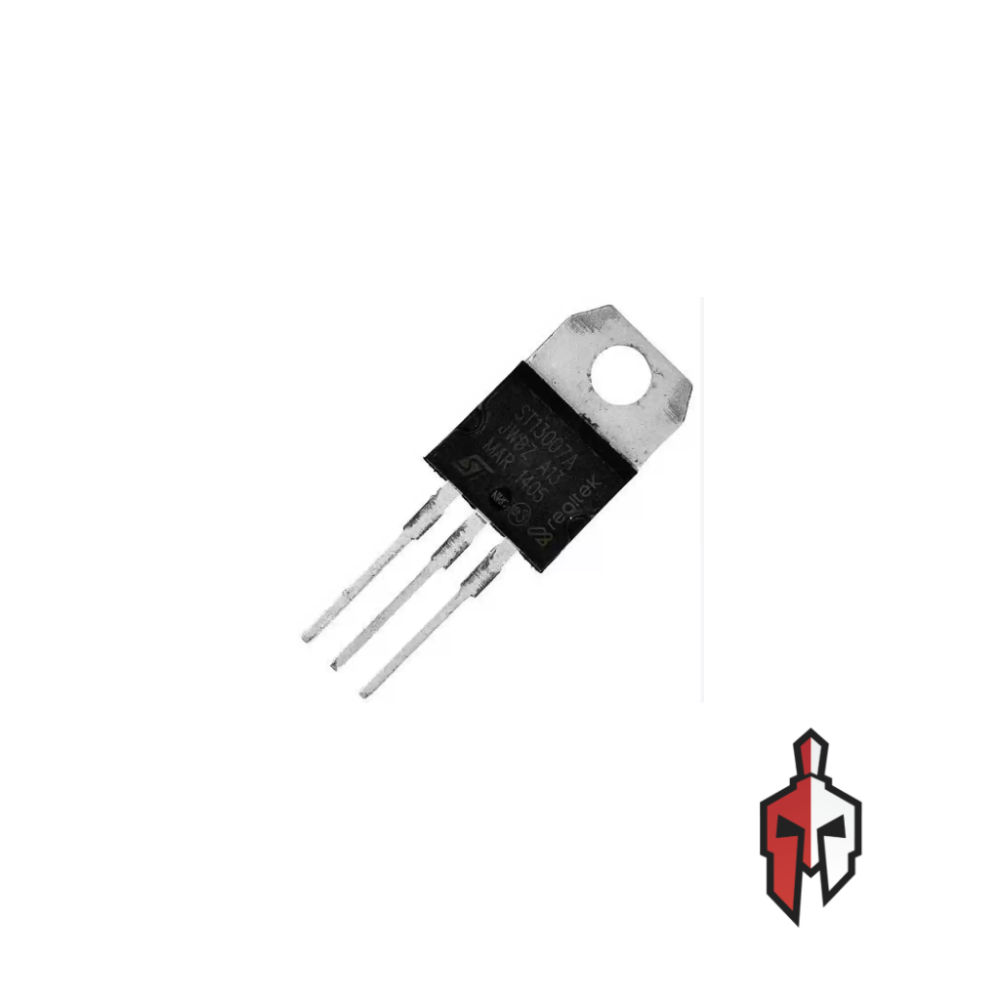

ST13007 NPN HV Transistor

The ST13007 is a high-voltage NPN power transistor designed for use in switching power supplies (SMPS), inverters, and power amplifiers. With a collector-emitter voltage (V_CEO) of 400V and a continuous collector current of 8A, this transistor is optimized for high-speed switching applications.

Specification :

• Transistor Type : NPN
• Package Type : TO-220
• Collector-Emitter Voltage : 400V
• Base-Emitter Voltage   : 5V max
• Power Dissipation  : 80W
• Operating Temperature Range : -65°C to 150°C
• High Switching Speed : Optimized for fast turn-on/off
• Collector-Emitter Saturation Voltage  : ≤ 2V at 4A
• Collector Current   : 8A continuous, 16A peak
