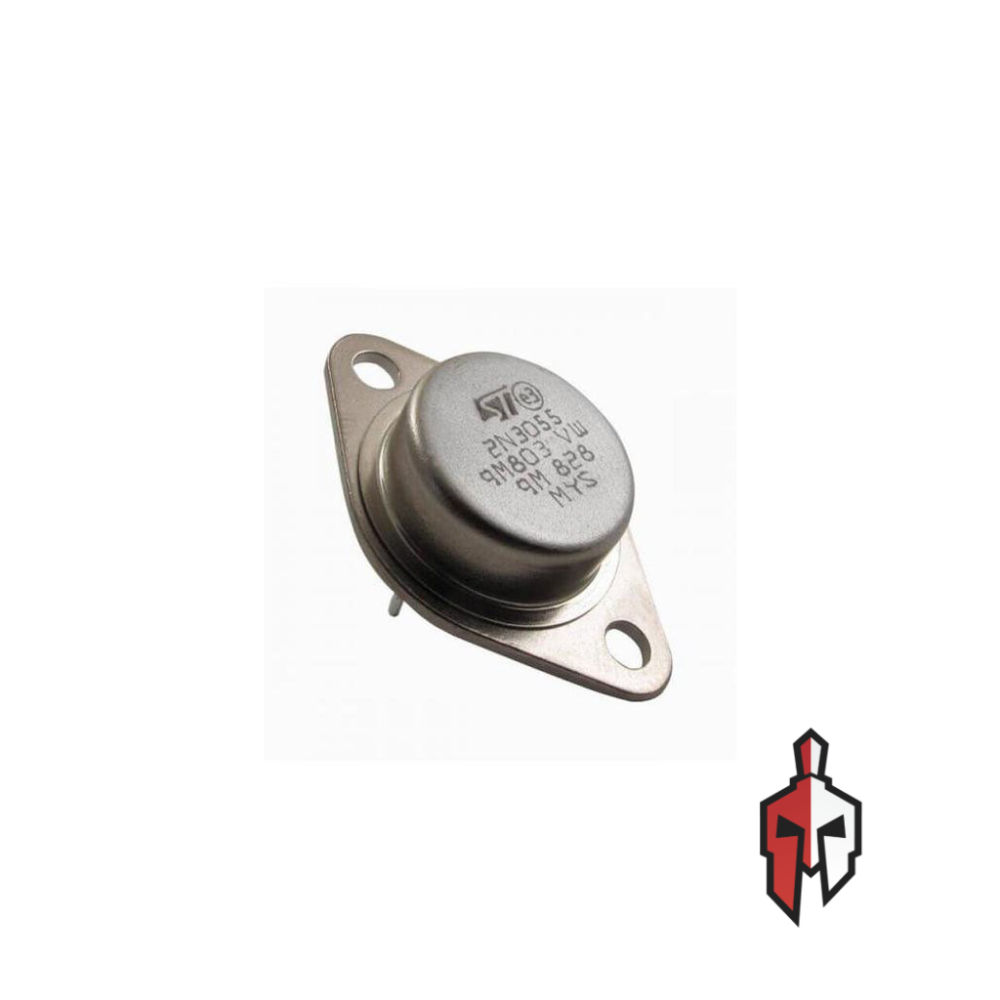

2N3055 NPN Transistor
Rs 255.00
Quick Info :
- Transistor Type : NPN Power Transistor
- Collector-Emitter Voltage : 60 V
- Collector-Base Voltage : 100 V
- Emitter-Base Voltage : 5 V
- Continuous Collector Current : 15 A
- Peak Collector Current : 30 A
- Power Dissipation : 115 W
Frequently Bought Together
- 2N2222 NPN Transistor(Rs 10.00)
- 2N5401 PNP Transistor(Rs 20.00)
- 7432 Quad 2-Input OR Gate(Rs 65.00)
The 2N3055 is a popular NPN power transistor widely used in high-power audio amplifiers, voltage regulators, and power supply circuits. Known for its high current handling capacity, low saturation voltage, and robust performance, it is a go-to component for power electronics applications.
Specification :
- Transistor Type : NPN Power Transistor
- Collector-Emitter Voltage : 60 V
- Collector-Base Voltage : 100 V
- Emitter-Base Voltage : 5 V
- Continuous Collector Current : 15 A
- Peak Collector Current : 30 A
- Power Dissipation : 115 W
- DC Current Gain : 20 to 70
- Saturation Voltage : 2 V
- Transition Frequency : 4 MHz
- Operating Temperature Range : -65°C to +150°C
