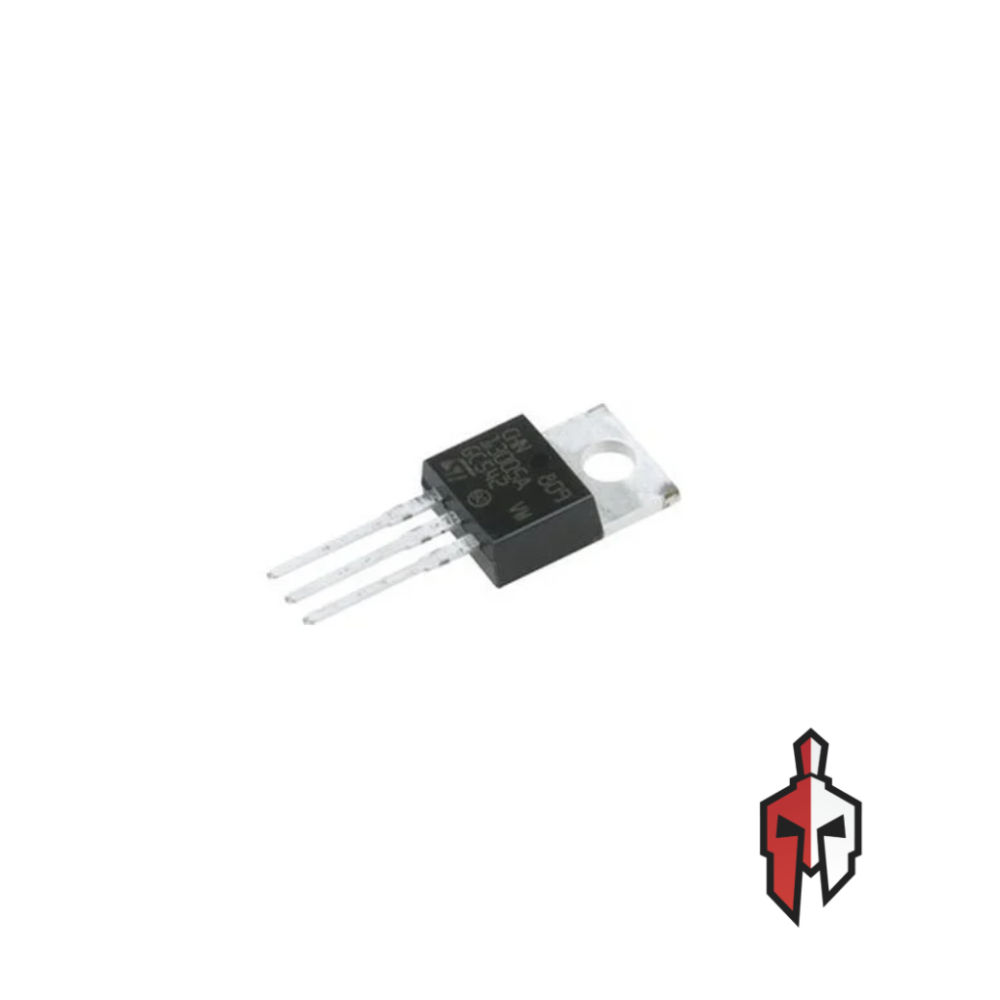

ST13005A NPN Transistor

The ST13005A is a high-voltage, fast-switching NPN power transistor designed for use in switching power supplies, lighting ballasts, inverters, and high-voltage converters. With its ability to handle high voltages and currents, the ST13005A is perfect for applications requiring reliability and efficiency under high-power conditions.

Specification :

• Transistor Type : NPN Power Transistor
• Collector-Emitter Voltage : 400 V
• Collector-Base Voltage :  700 V
• Emitter-Base Voltage  : 9 V
• Collector Current  : 4 A continuous, 8 A peak
• Power Dissipation  : 75 W (at T_C = 25°C)
• Current Gain  : 8 to 40 (at I_C = 2 A)
• Transition Frequency :  4 MHz
