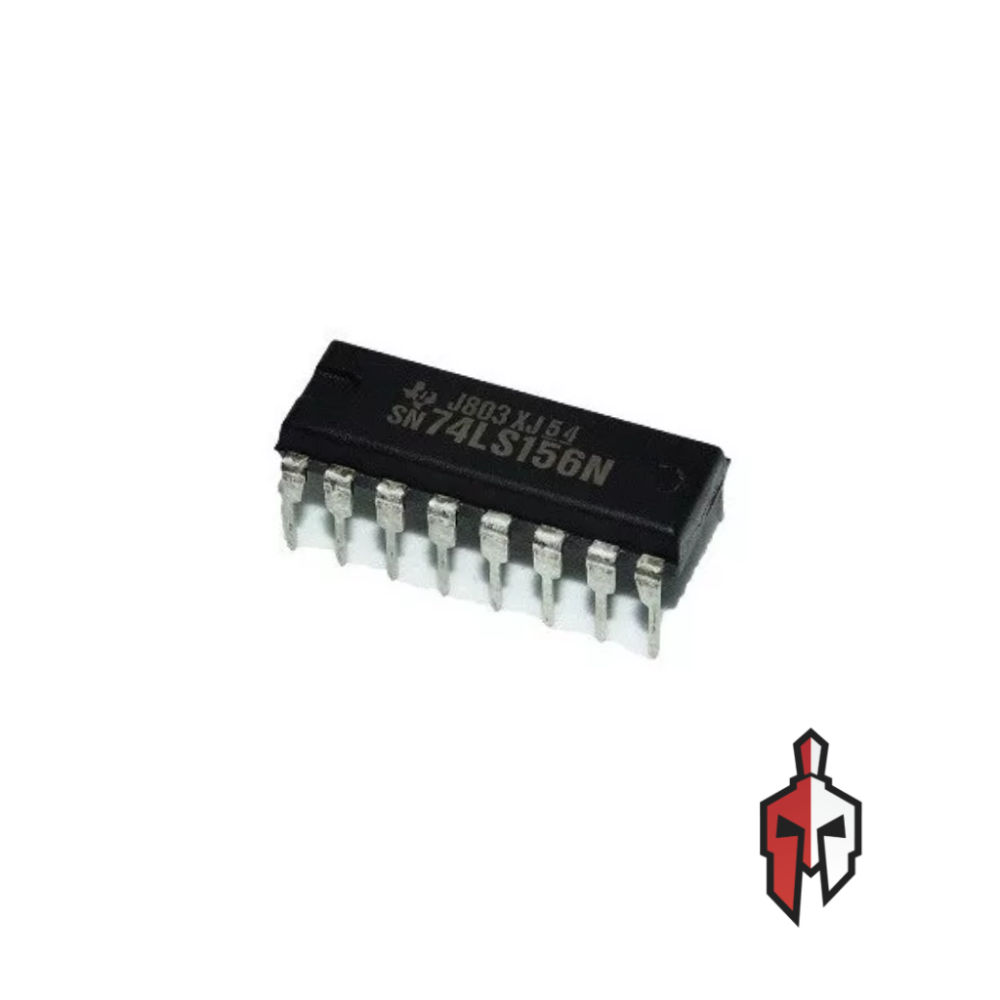

SN74LS156 Decoder
Rs 120.00
Quick Info :
- IC Type : Dual 1-of-4 Decoder/Demultiplexer
- Logic Family : 74LS
- Number of Channels : 2 (Independent Channels)
- Input Voltage : 0 – 5.5 V
- Supply Voltage : 4.75 – 5.25 V
- Output Type : Open-Collector
- Max Output Current : 8 mA
The SN74LS156 is a high-performance dual 1-of-4 decoder/demultiplexer with open-collector outputs, designed for use in memory address decoding, data routing, and signal demultiplexing applications.
Specification :
- IC Type : Dual 1-of-4 Decoder/Demultiplexer
- Logic Family : 74LS
- Number of Channels : 2 (Independent Channels)
- Input Voltage : 0 – 5.5 V
- Supply Voltage : 4.75 – 5.25 V
- Output Type : Open-Collector
- Max Output Current : 8 mA
- High-Level Input Voltage : 2 V (min)
- Low-Level Input Voltage : 0.8 V (max)
