Pressure Transducer Sensor G1/4 5VDC

Price range: Rs 4,950.00 through Rs 9,450.00

9 in stock

Quick Info:

  • Pressure Range : 0-0.5MPa, 0-1.2MPa, 0-5MPa
  • Thread Size : G1/4
  • Supply Voltage : 5V DC
  • Output Signal : 0.5V to 4.5V (Linear)
  • Accuracy : 1% FS
  • Body Material : Stainless Steel
Clear
SKU: N/A Categories: , Brand:

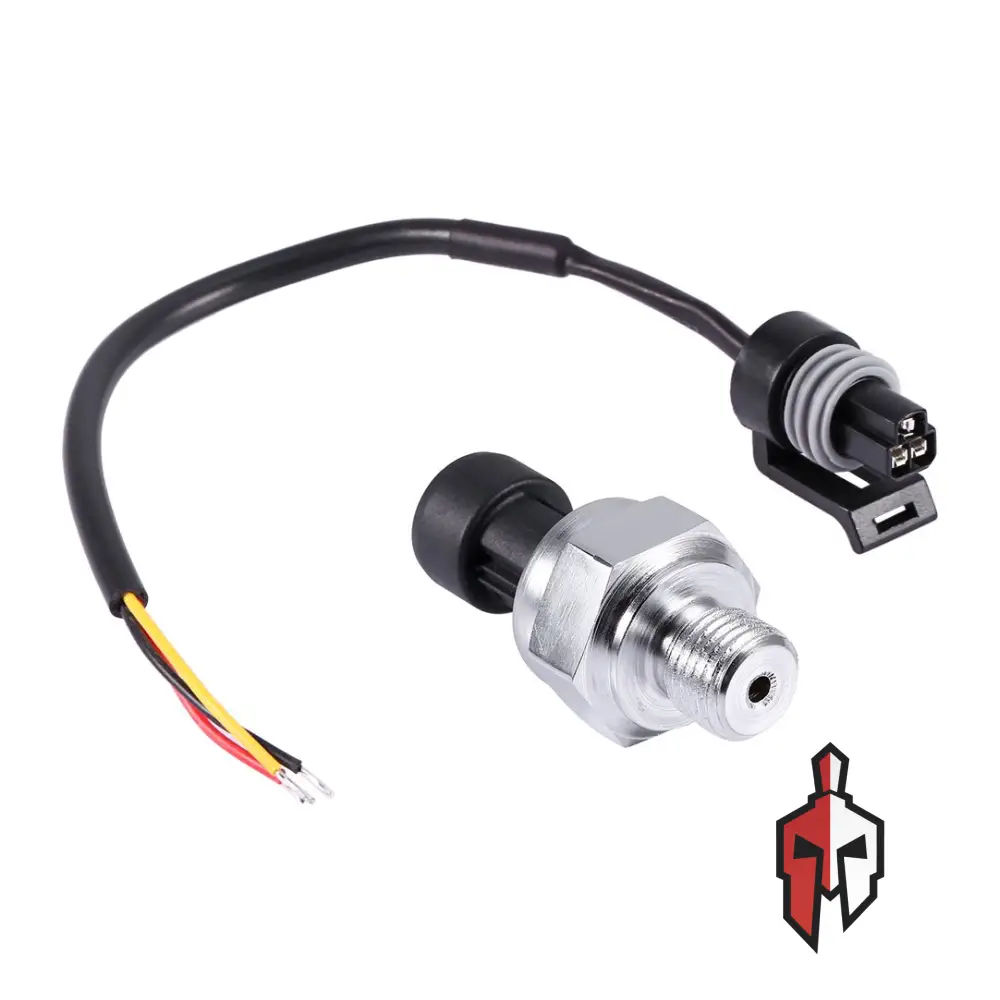

This stainless steel pressure transducer measures the pressure of air, water, and oil systems and turns it into a simple analog voltage. Powered from 5V DC, it outputs a linear 0.5V to 4.5V signal that rises with pressure, so any microcontroller with an analog input can read it directly.

Choose the range that suits your system: 0 to 0.5MPa (5 bar), 0 to 1.2MPa (12 bar), or 0 to 5MPa (50 bar). To convert the reading, subtract 0.5V from the output, divide by 4, and multiply by the full range. The standard G1/4 thread screws into common fittings, and the compact stainless steel body is built to last in tanks, pumps, compressors, and hydraulic setups.

Use thread sealant or a sealing washer for a leak-free fit, and pick a range comfortably above your working pressure. The output reaches 4.5V, so use a voltage divider with 3.3V boards such as the ESP32. It is a dependable sensor for makers, students, and engineers building pressure monitors and controllers.

Specification:

  • Sensor Type : Analog Pressure Transducer
  • Pressure Range : 0-0.5MPa, 0-1.2MPa, 0-5MPa
  • Thread Size : G1/4
  • Supply Voltage : 5V DC
  • Output Signal : 0.5V to 4.5V (Linear)
  • Accuracy : 1% FS
  • Body Material : Stainless Steel
  • Media : Air, Water, Oil

Additional information

Pressure Range

0-0.5MPa, 0-1.2MPa, 0-5MPa
