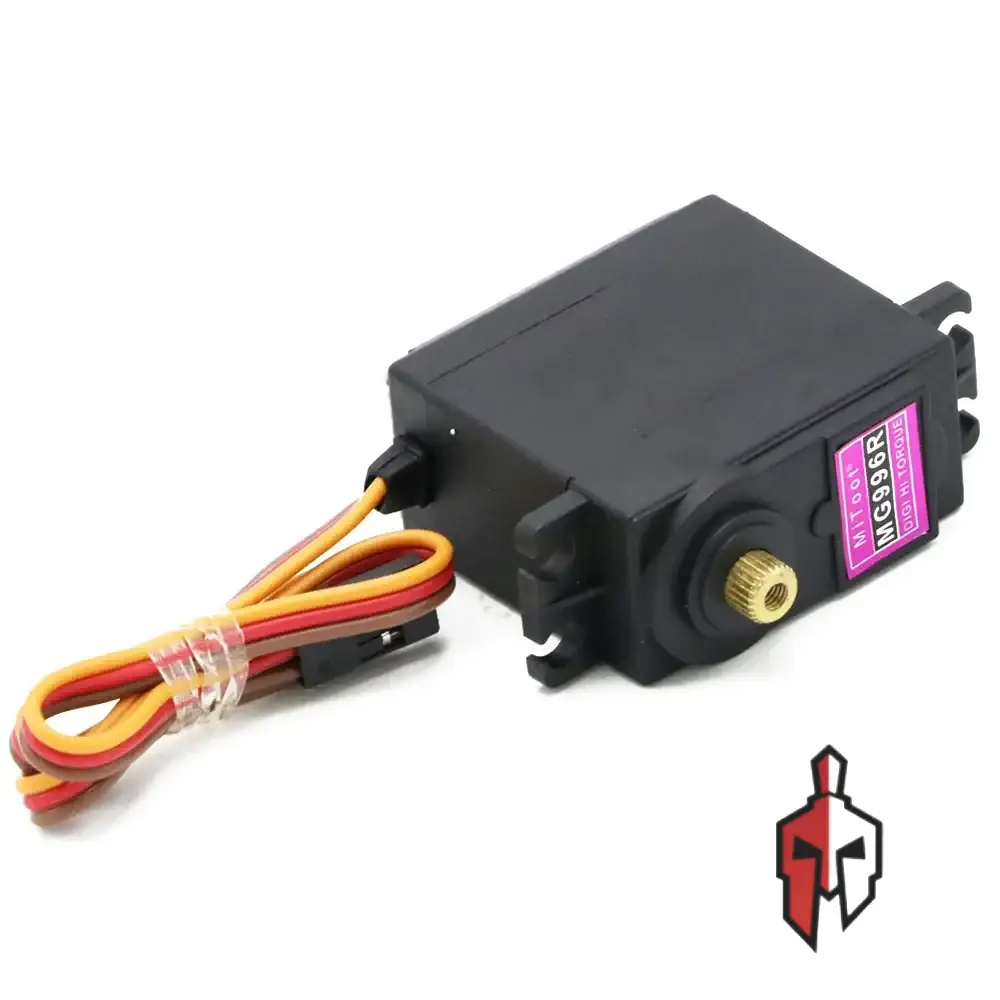

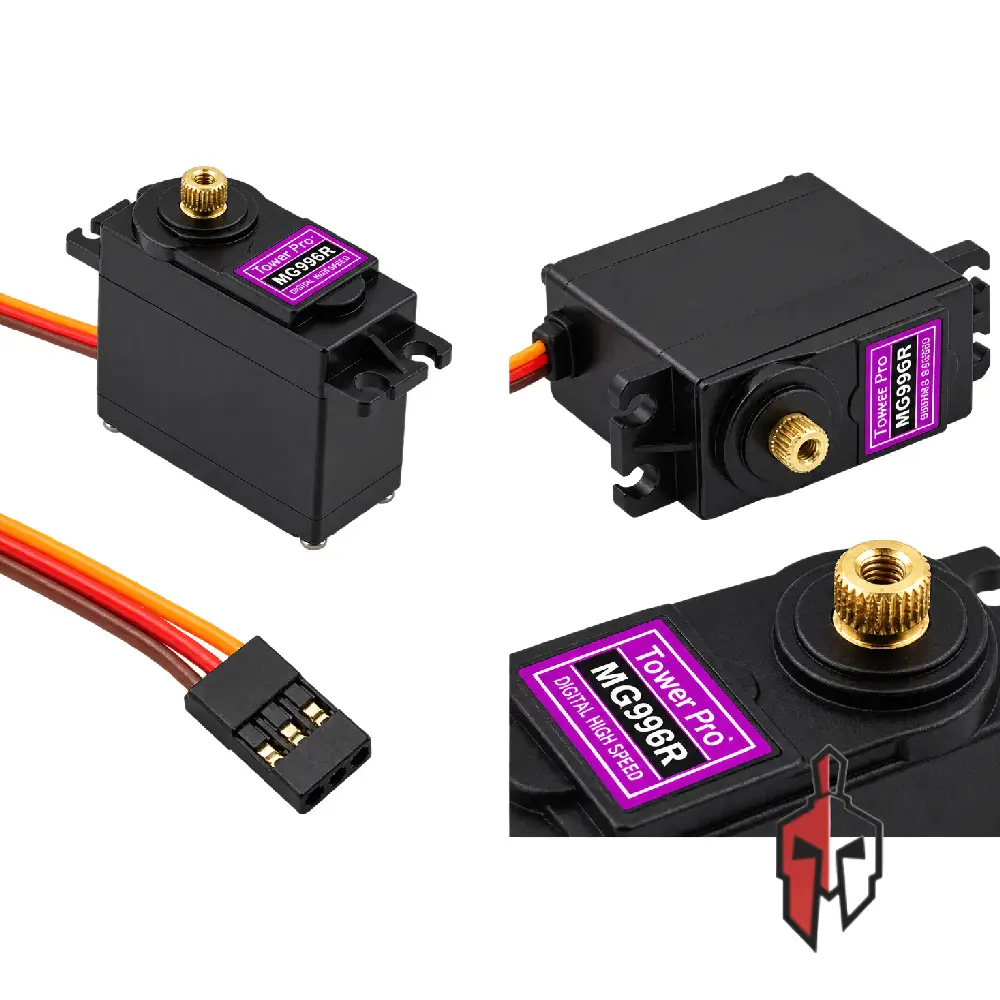

MG996R Tower Pro Digital Servo Metal

The MG996R Tower Pro Digital Servo is an upgraded, high-torque metal gear servo built for projects that need more precision and strength than a standard hobby servo. It responds to a standard PWM signal, so it works with Arduino, ESP32, Raspberry Pi, other microcontrollers, and RC receivers.

Compared with the MG995, it adds a redesigned control board for more accurate positioning and better centering, along with a shock-resistant dual ball bearing design for smooth, steady motion. It delivers up to 11kg-cm of stall torque at 6V with a speed of 0.14 seconds per 60 degrees, enough for robotic arm joints, steering linkages, and heavier moving parts.

The standard-size body fits common servo brackets, and the 3-pin JR connector plugs into most receivers and servo headers. It is a great choice for robotic arms, RC cars, boats, planes, and automation builds by hobbyists, makers, and students. Power it from a separate supply within its rated voltage, since it can draw up to 2.5A when stalled, and join the grounds together.

Specification:

• Servo Type : Digital
• Gear Type : Metal
• Bearing : Dual Ball Bearing
• Rotation Angle : 120° (Approx.)
• Operating Voltage : 4.8V to 7.2V
• Stall Torque : 9.4kg-cm (4.8V) / 11kg-cm (6V)
• Operating Speed : 0.17s/60° (4.8V) / 0.14s/60° (6V)
• Stall Current : 2.5A (6V)
• Running Current : 500mA to 900mA (6V)
• Control Signal : PWM
• Connector : 3-Pin JR Type

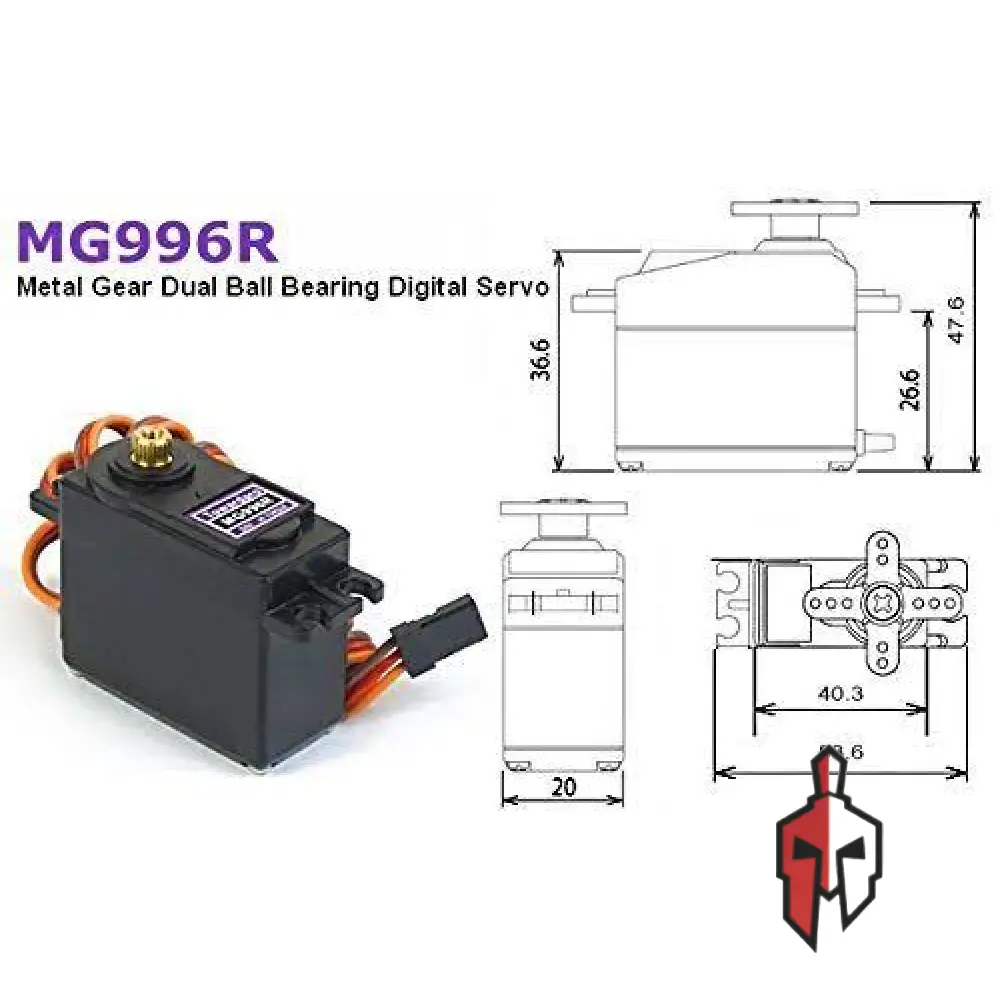

• Dimensions : 40.7mm x 19.7mm x 42.9mm
• Weight : 55g
• Operating Temperature : 0°C to 55°C
