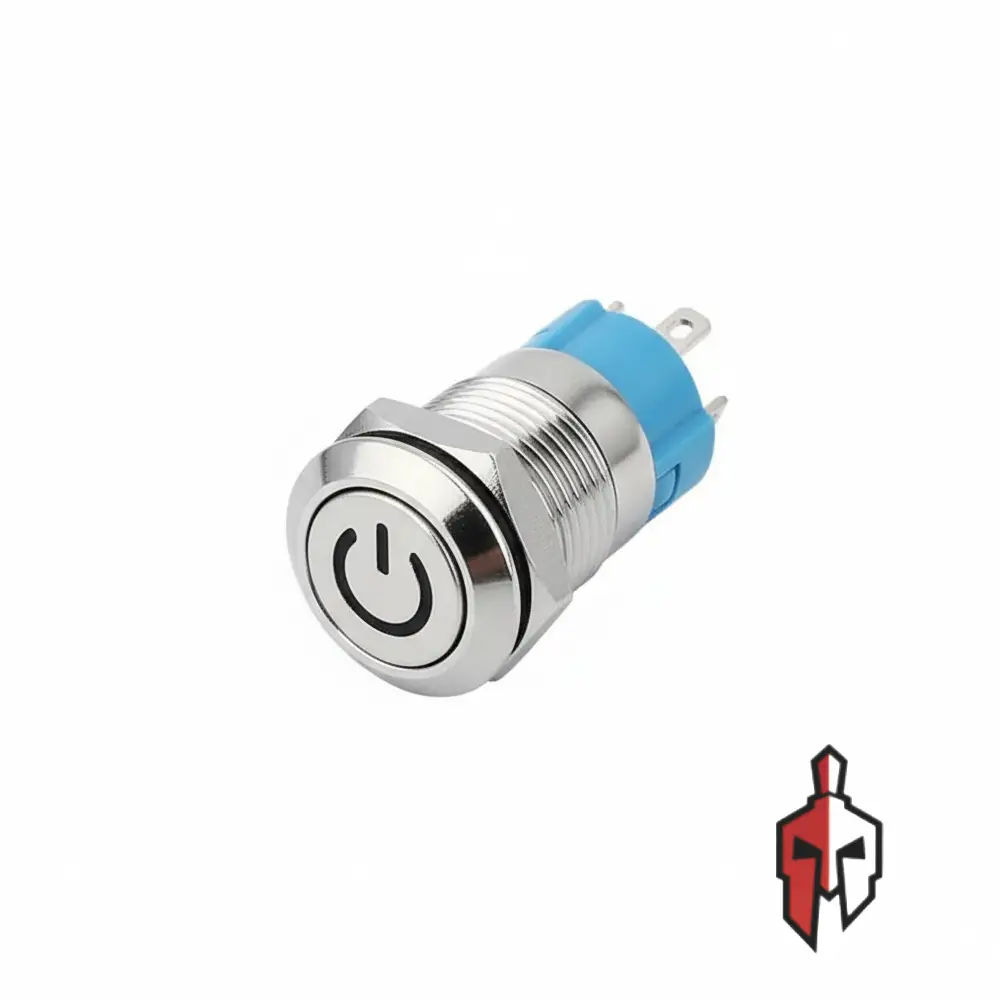

M12 Metal Push Button Fixed Self Locking 12mm

The M12 Metal Push Button is a compact, self-locking (latching) panel-mount switch with an illuminated power symbol, built for 12mm mounting holes in project enclosures, control panels, PC cases, and DIY electronics. Press once to switch ON and the contacts stay closed. Press again to switch OFF, so there is no need to hold the button down.

The flat, polished metal head gives a premium, industrial look. The built-in LED lights the power symbol from a 3-6V DC supply, making the switch state easy to see in low light. The LED has its own independent terminals, so it can be wired to a separate indicator supply from the switched circuit.

Sealed construction offers IP65 dust and splash protection, and the threaded metal barrel with locking nut mounts firmly into a 12mm panel hole. Solder-pin terminals make wiring simple for hobbyists, and the rugged build suits power switches for 3D printers, amplifiers, Arduino and Raspberry Pi projects, and custom electronics builds.

Specification :

• Model : M12 Metal Push Button
• Action Type : Self-locking (latching) — push ON / push OFF
• Contact Configuration : SPST

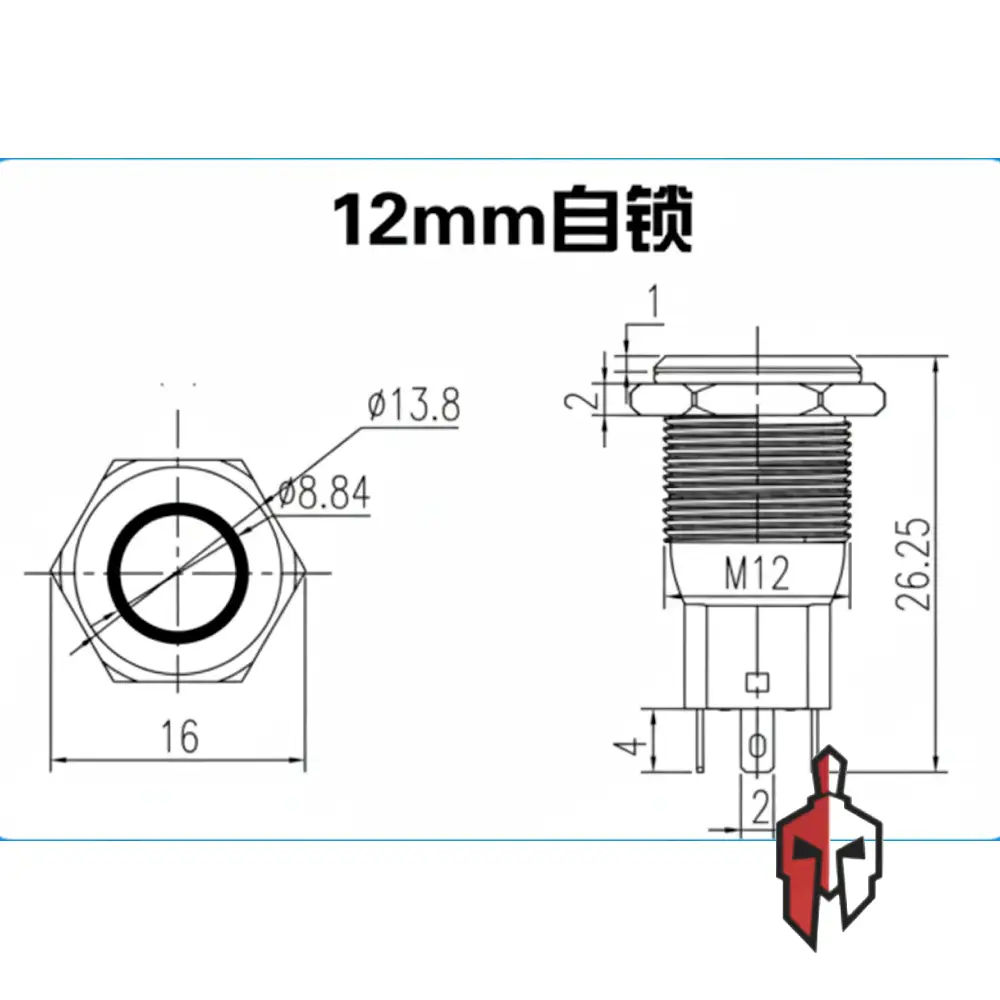

• Mounting Hole Diameter : 12mm
• LED Voltage : 3V – 6V DC
• LED Colour : Red
• Head Style : Flat head with power symbol
• Body Material : Nickel-plated metal
• Contact Rating : 2A
• Protection Rating : IP65
• Terminal Type : Solder pin (separate LED terminals)
• Mounting : Panel mount with locking nut
• Package Includes : 1 × M12 Metal Push Button Switch (LED colour Red)
