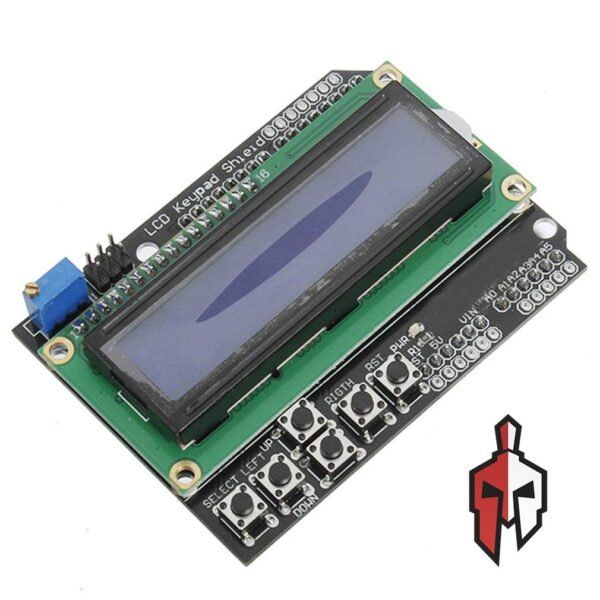

LCD1602 Keypad Shield for Arduino

The LCD1602 Keypad Shield is a plug-and-play Arduino shield that combines a 16×2 character display with a 5-button navigation keypad, making it an ideal building block for menu-driven projects, standalone instruments, and interactive user interfaces. Designed to fit directly onto Arduino Uno form-factor boards, it displays white characters on a blue backlight and includes Up, Down, Left, Right, and Select buttons alongside a separate reset button, giving users a complete interface without any extra wiring. The buttons connect through a single resistive voltage divider circuit read on analog pin A0, freeing up digital pins for other components, while the LCD itself communicates over a standard 4-bit parallel bus supported by Arduino’s built-in LiquidCrystal library. A built-in potentiometer allows easy contrast adjustment, and the display’s backlight can be dimmed or switched using digital pin 10. This shield is widely used for building menu navigation systems, data loggers, temperature and sensor readouts, and simple embedded UIs, making it a great fit for students and hobbyists learning about displays and user input handling. Its shield form factor means it stacks directly onto an Arduino Uno or compatible board without breadboarding, and its broad library support makes it easy to get running with just a few lines of code. Reliable, well documented, and beginner-friendly, this shield is a practical addition to any Arduino project toolkit.

Specification:

• Display Type : 16×2 Character LCD
• Display Color : White Text on Blue Backlight
• Interface : 4-Bit Parallel (LCD), Single ADC Pin (Keypad)
• Keypad Buttons : Up, Down, Left, Right, Select, Reset
• LCD Pin Mapping : D4, D5, D6, D7, D8 (RS), D9 (EN), D10 (Backlight)
• Keypad Pin : A0 (Analog Voltage Divider)
• Board Form Factor : Arduino Uno Shield
