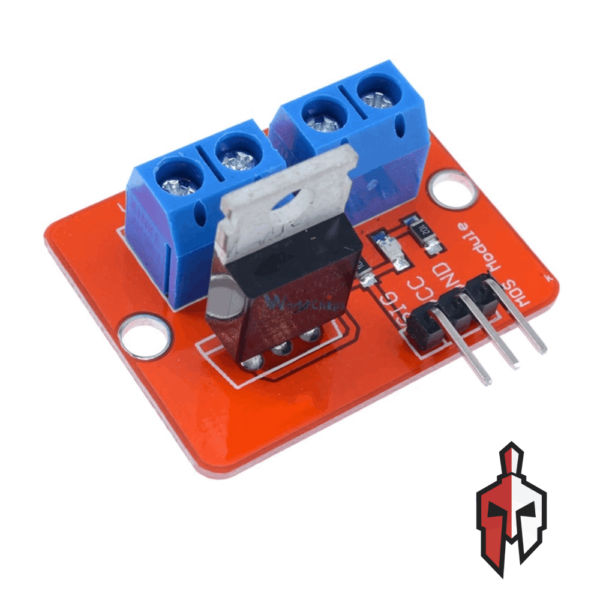

IRF520 MOSFET Driver Module

This IRF520 Mosfet Driver module is easy to hookup to your Arduino or the other 3-5V microcontroller. The module designed to switch heavy DC loads from a single digital pin of your microcontroller. Its main purpose is to provide a low cost way to drive a DC motor for robotics applications, but the module can be used to control most high current DC loads. Screw terminals are provided to interface to your load and external power source.

Specification:

• Voltage: 3.3V, 5V
• Output load voltage :0-24V
• Output load current: <5A (1A need to add more heat sink)
• Platform: Arduino, MCU, ARM, Raspberry Pi
• Using original IRF520 Power MOS, you can adjust the output PWM.
• Drive up to 24V allows the load, such as LED lights, DC motors, miniature pumps, solenoid valves.
• PWM dimming LED can be used to achieve step less dimming, variable speed motor control.

Note: Above 1A load, you need to install heat sink
