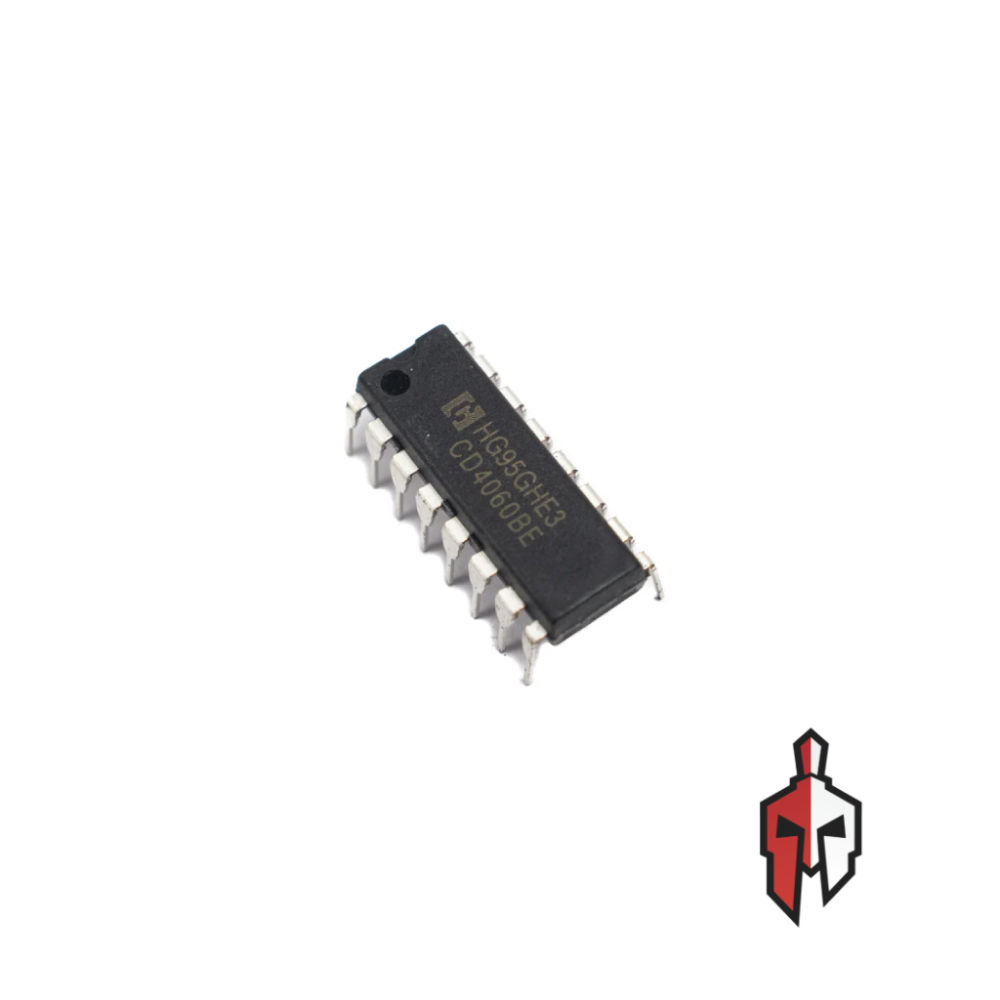

CD4060 CMOS 14 Stage Ripple

The CD4060 CMOS 14-Stage Ripple Counter is a versatile and efficient IC designed for use in digital frequency division, timing, and counter applications. This 14-stage binary ripple counter utilizes CMOS technology to offer low power consumption while delivering high performance and reliability.

Specification :

• Model : CD4060
• Technology : CMOS
• Package Type : DIP-16 / SOIC-16
• Number of Stages : 14
• Supply Voltage   : 3V to 15V
• Input Voltage   : Vih ≥ 3V, Vil ≤ 1.5V
• Output Voltage   : Voh ≥ Vdd – 0.5V, Vol ≤ 0.5V
• Quiescent Current   : ≤ 1 µA at Vdd = 5V
• Propagation Delay  : ~300 ns at Vdd = 5V
• Input Leakage Current : ≤ 1nA
