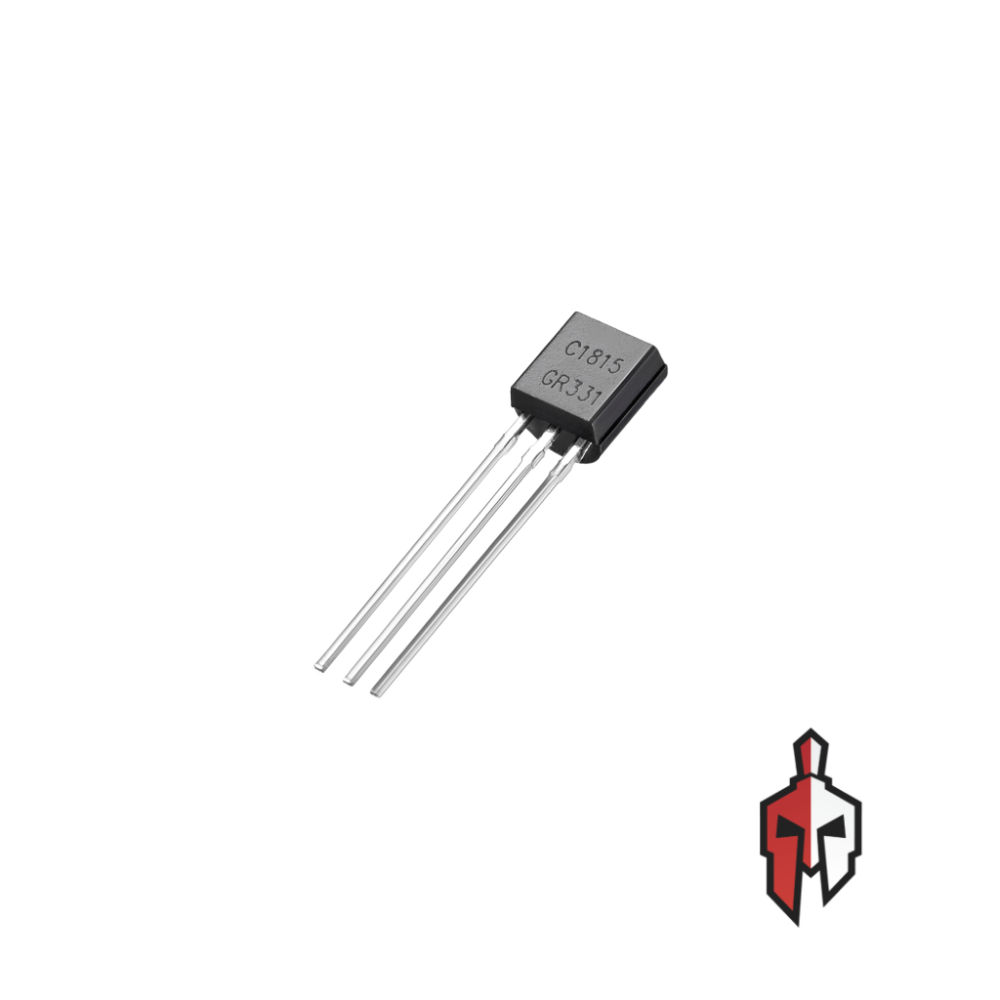

C1815 NPN Transistor
Rs 10.00
Quick Info :
- Transistor Type : NPN Transistor
- Collector-Emitter Voltage : 50 V
- Collector-Base Voltage : 60 V
- Emitter-Base Voltage : 5 V
- Continuous Collector Current : 150 mA
- Power Dissipation : 300 mW
- DC Current Gain : 110 to 800
- Saturation Voltage : 0.3 V
Frequently Bought Together
- This item: C1815 NPN Transistor(Rs 10.00)
- 2SD313 NPN Power Transistor(Rs 100.00)
- BC548 NPN Transistor(Rs 10.00)
- 2SC828A NPN Transistor(Rs 10.00)
The C1815 is a popular NPN transistor widely used in low-power amplification and switching applications. Known for its high frequency response, low noise, and small package size, the C1815 is typically used in signal processing, audio amplification, and small signal applications.
Specification :
- Transistor Type : NPN Transistor
- Collector-Emitter Voltage : 50 V
- Collector-Base Voltage : 60 V
- Emitter-Base Voltage : 5 V
- Continuous Collector Current : 150 mA
- Power Dissipation : 300 mW
- DC Current Gain : 110 to 800
- Saturation Voltage : 0.3 V
- Transition Frequency : 150 MHz
- Operating Temperature Range : -55°C to +150°C
