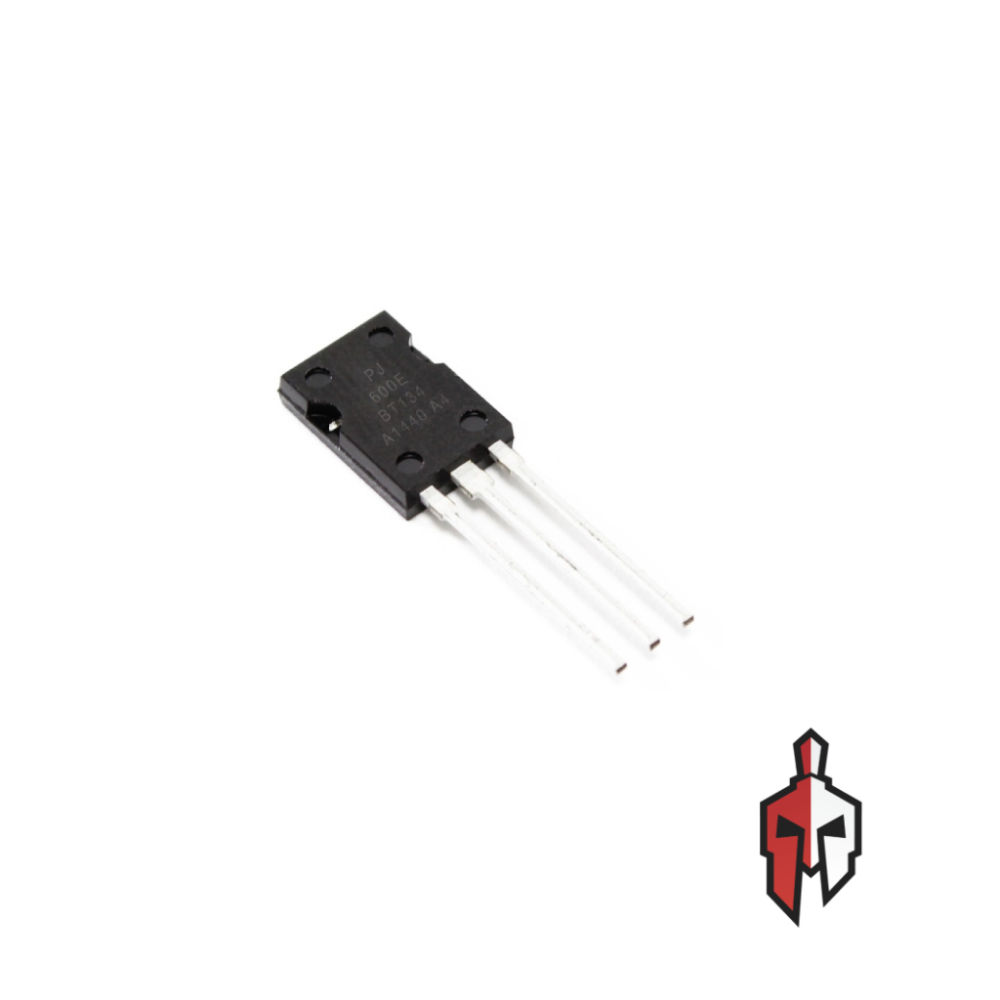

BT134 4A 500V Triac IC

The BT134 is a 4A, 500V Triac designed for AC switching applications, including light dimmers, motor speed controllers, and household appliance control. This bidirectional triode thyristor can handle both resistive and inductive loads, making it an excellent choice for switching and phase control in AC circuits.

Specification :

• Voltage Rating : 500V
• Package Type : TO-220
• RMS On-State Current   : 4A
• Peak Surge Current  : 25A
• Gate Trigger Voltage   : ≤ 1.5V
• Gate Trigger Current  : ≤ 5mA
• Holding Current   : 2.2mA
• Operating Temperature : -40°C to 125°C
• Switching Mode : Snubberless and standard versions available
