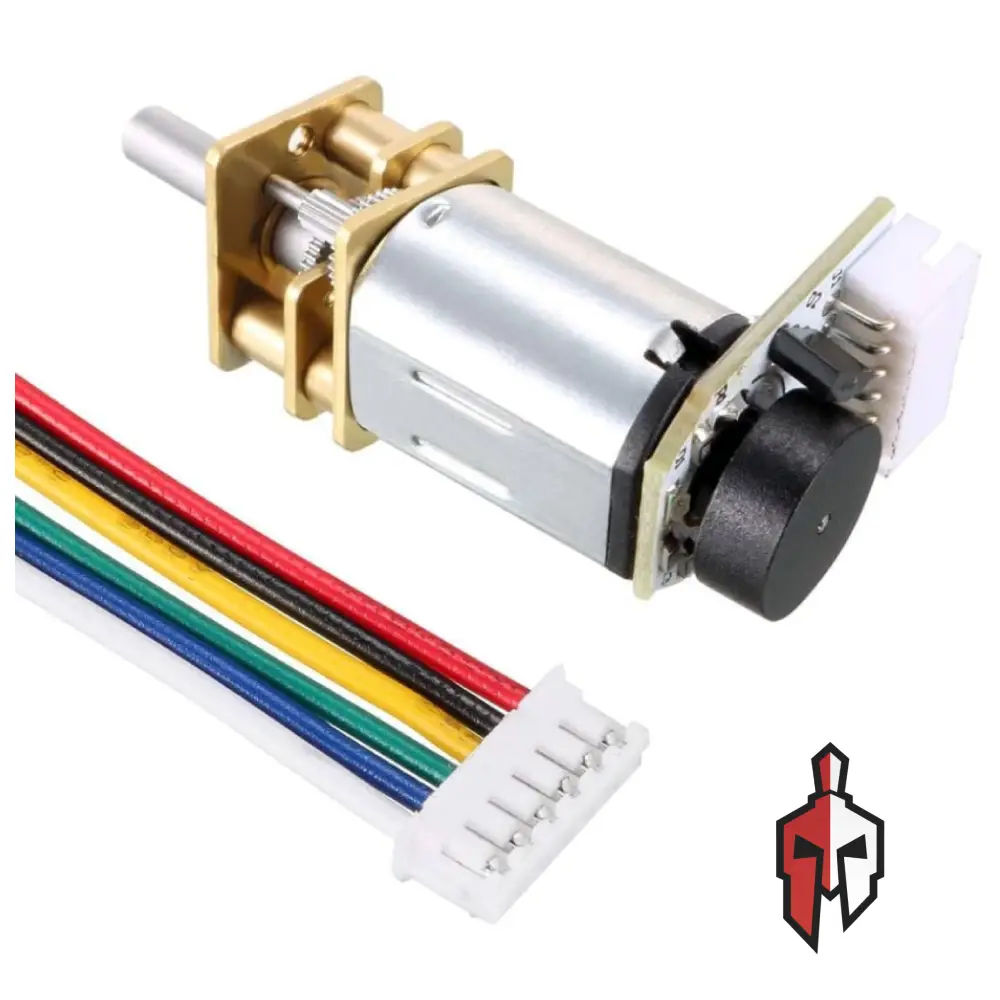

6V 300RPM N20 Gear Motor with Encoder

The 6V 300RPM N20 Micro Gear Motor with Encoder is a compact, high-performance DC motor ideal for robotics, automation, and precision control projects. Featuring a built-in encoder, it provides feedback on motor speed and position, making it perfect for applications that require closed-loop control. Its metal gearbox ensures durability and consistent torque output, while the small size makes it suitable for embedded systems, Arduino projects, and miniature robotic designs. Whether you’re building a line-following robot, smart vehicle, or servo mechanism, this motor delivers reliable performance with smooth motion and efficiency.

Specification :

• Model : N20 with Encoder
• Operating Voltage : 6 V DC
• No-Load Speed : 300 RPM
• Gear Ratio : 1:50
• Encoder Type : Dual Channel Magnetic Encoder
• Shaft Diameter : 3 mm (D-shape)
• Output Torque : Approx. 0.8 kg.cm
• Motor Dimensions : 12 mm (Diameter) × 30 mm (Length)
• Shaft Length : 10 mm
• Wire Connections : Power (Red/Black), Encoder Output (Yellow/White)
