40 Pin Right Angled Male Header 2.54mm Pitch

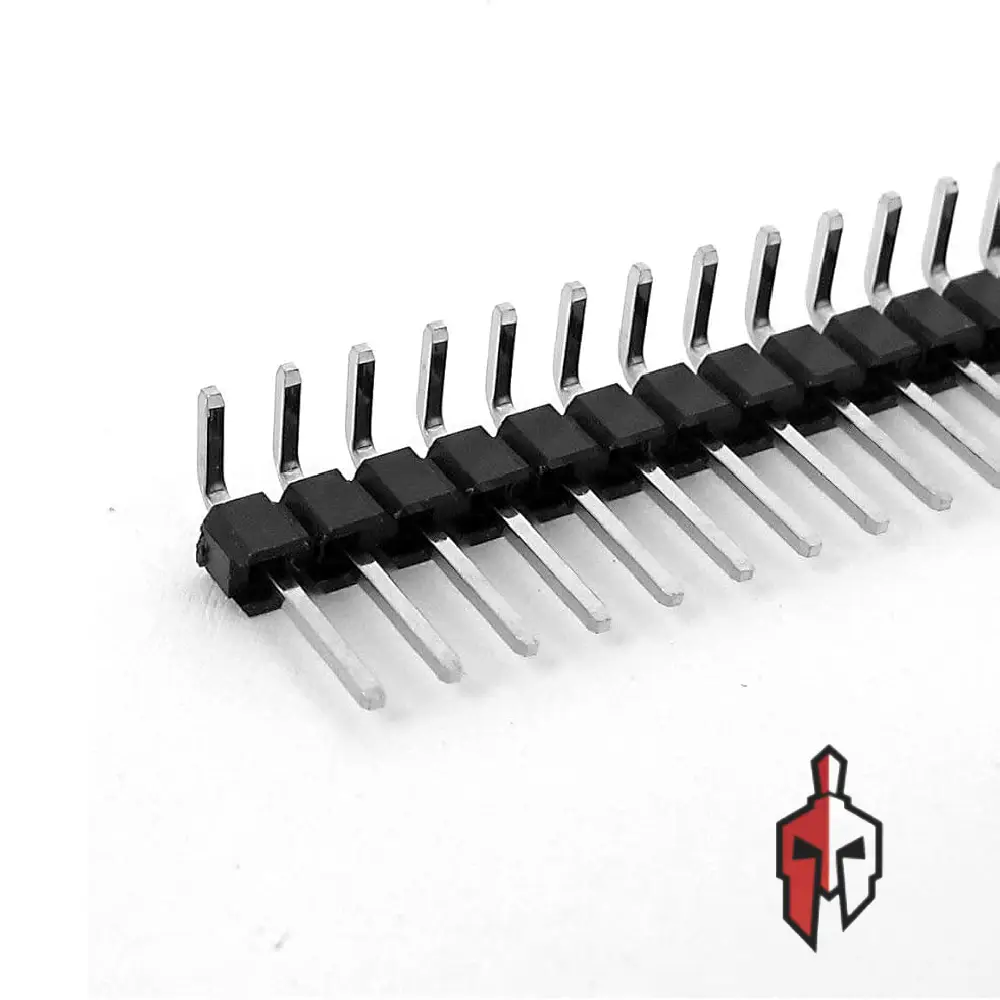

This 40 pin right angled male header strip with 2.54mm pitch is a versatile, low-cost connector for electronics projects. Its pins bend 90 degrees at the housing, so boards and cables plug in parallel to the PCB, saving vertical space in tight enclosures and making side-facing connections easy.

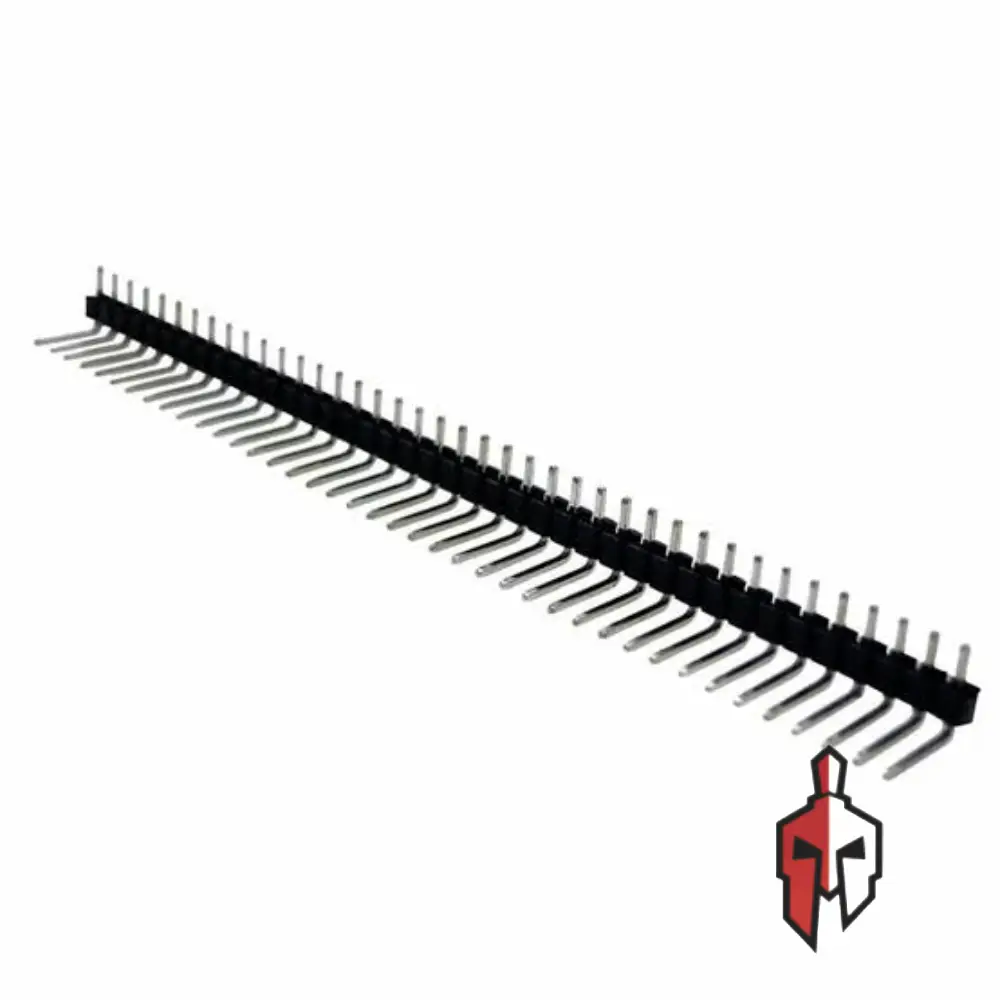

The single row of 40 square pins is breakaway, so you can snap or cut it into strips of exactly the length you need. The standard 2.54mm pitch fits breadboards, perfboards, Dupont jumper wires, and female header sockets such as those on Arduino boards, while the PBT housing and copper alloy contacts handle currents up to 3A.

It is perfect for adding programming and sensor ports, connecting stepper driver boards, building shields, and customizing PCBs. Break it into shorter strips as needed and the leftover pins stay useful for your next build. Soldering is quick and the strong pins give a solid, reliable connection, making this a staple for hobbyists, makers, and students.

Specification:

• Pin Count : 40 (Single Row)
• Pitch : 2.54mm (0.1″)
• Gender : Male
• Pin Orientation : Right Angle (90°)
• Pin Style : Square
• Current Rating : 3A
• Withstanding Voltage : 1000V AC
• Contact Resistance : 20mΩ Max
• Housing Material : PBT
• Housing Color : Black
• Contact Material : Copper Alloy
• Operating Temperature : -55°C to +105°C
