4-35V DC Voltmeter

Rs 450.00

Out of stock

Quick Info :

  • Working current: 20mA
  • Operating voltage: 4-35 VDC
  • Measurement rate: 200mS /Times
  • Display Range : upto 100V
SKU: E11 Categories: ,

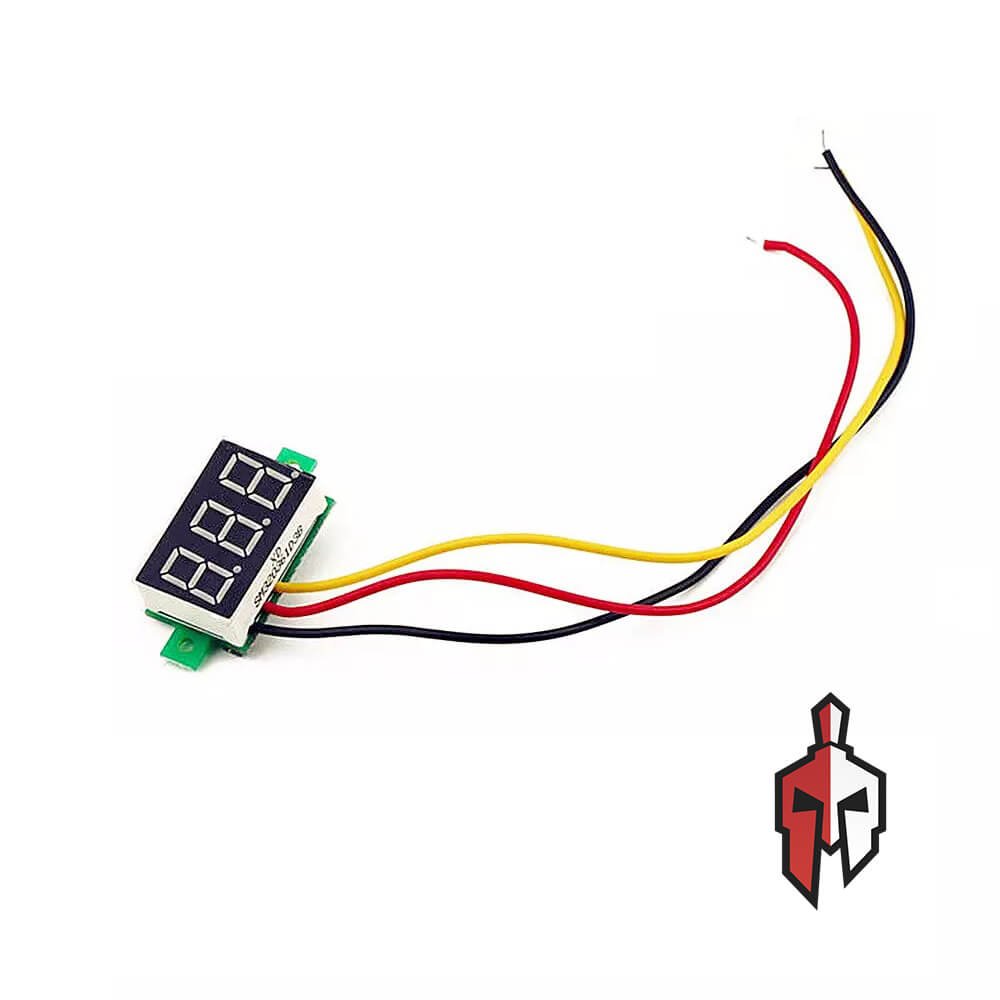

3-digit LED voltmeter for 0-100 VDC range. 0.28″ digits on a 0.89″ x 0.39″ display. Red digits on black background. Three wire operation. Red-black for power; yellow-black for voltage being monitored. Will monitor its own voltage. Mounting ears with holes on 1.03″ centers.

Specifications :

  • Working current: 20mA
  • Operating voltage: 4-35 VDC
  • Measurement rate: 200mS /Times

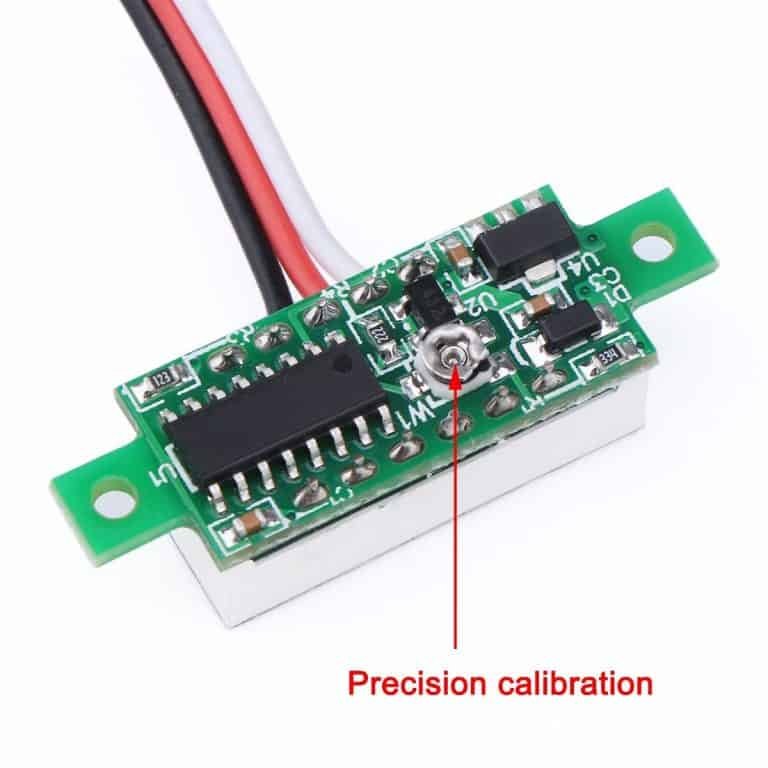

  • 1 digit typical accuracy with calibration pot available
  • Red display color
  • Dimensions :
    • PCB w/ mounting ears – 33 x 15mm (1.3 x .55″)
    • Mounting Hole Distance – 28mm (1.1″)
    • Mounting Hole Diameter – 1.85mm (0.072″)

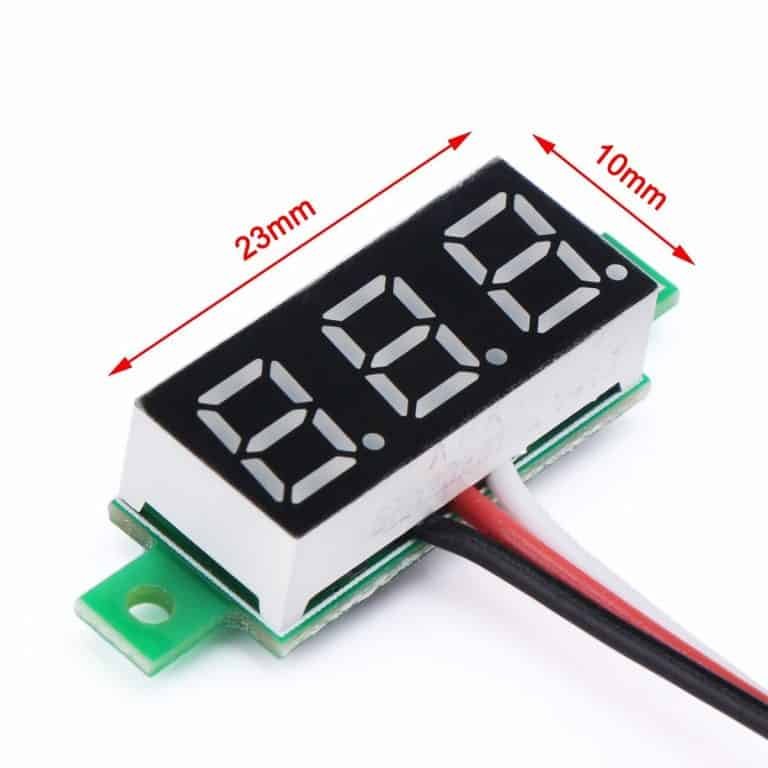

    • Display Size w/out mounting ears – 24 x 15mm (0.87 x 0.6″)
    • Display Height w/ PCB – 10mm (0.39″) (typical)
    • Character Height – 9.14mm (0.36″)
    • Lead Length – 150mm (~6″)
    • Module Weight – 5.1g
