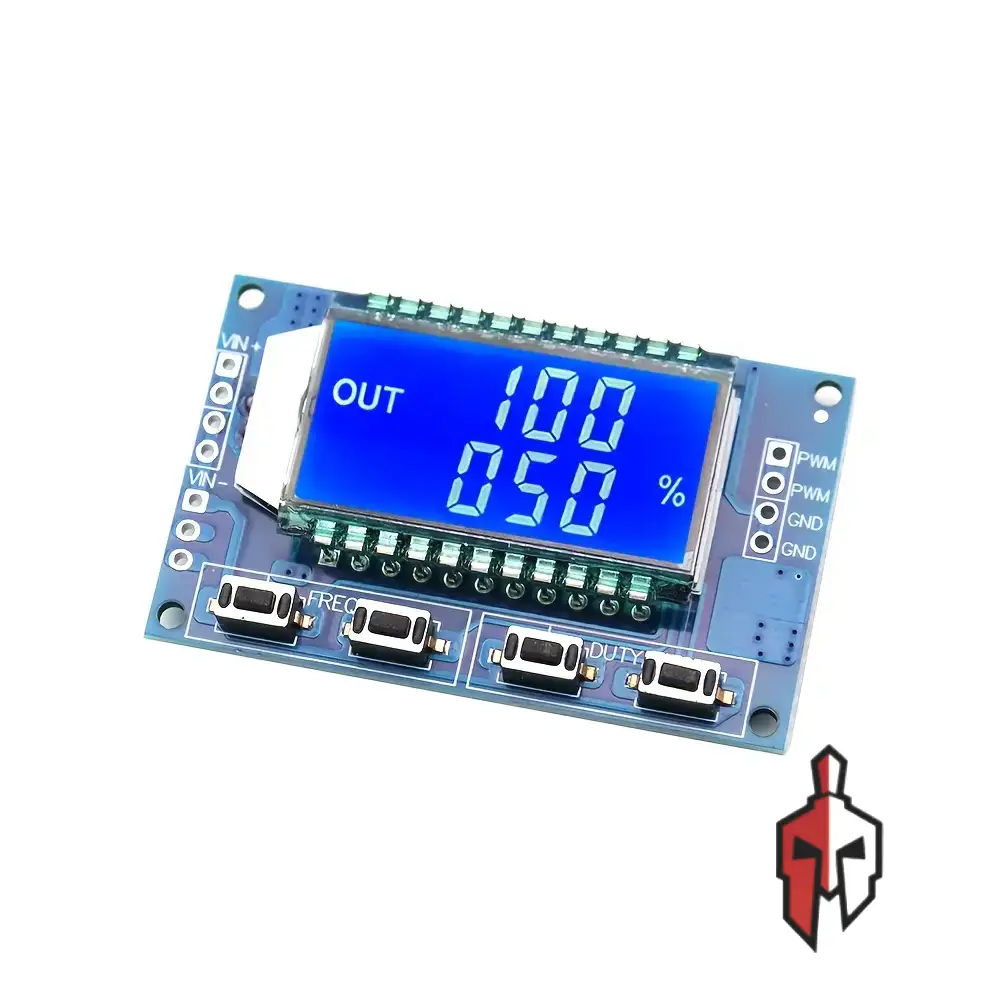

1Hz to 150KHz PWM Frequency Generator Module

Versatile signal generator module capable of producing programmable PWM outputs with frequency range from 1Hz to 150KHz and duty cycle control from 1% to 100%. Features intuitive 4-button interface for precise frequency adjustment in steps of 1Hz, 10Hz, 100Hz, or 1KHz depending on range. Clear 1.5-inch display with white text on blue backlight shows current frequency and duty cycle settings. Wide supply voltage range from 3.3V to 16V with low power consumption at 30mA no-load current. PWM output amplitude matches supply voltage with 30mA output capability. Perfect for motor control, LED dimming, servo testing, and educational electronics projects requiring precise PWM signal generation.

Specification :

• Supply Voltage : 3.3V to 16V
• Supply Current : ~30mA (no load)
• PWM Frequency Range : 1Hz to 150KHz
• PWM Frequency Resolution : 1Hz (<100Hz), 10Hz (<1KHz), 100Hz (<10KHz), 1KHz (<150KHz)
• PWM Duty Cycle Range : 1% to 100%
• PWM Duty Resolution : 1% (>2% at 100KHz and above)
• PWM Amplitude : Equal to supply voltage
• PWM Output Current : 30mA at 16V input
• Output Configuration : 100Ω pullup resistor from Vin
• Display Size : 1.5 inch LCD
• Display Type : White text on blue backlight

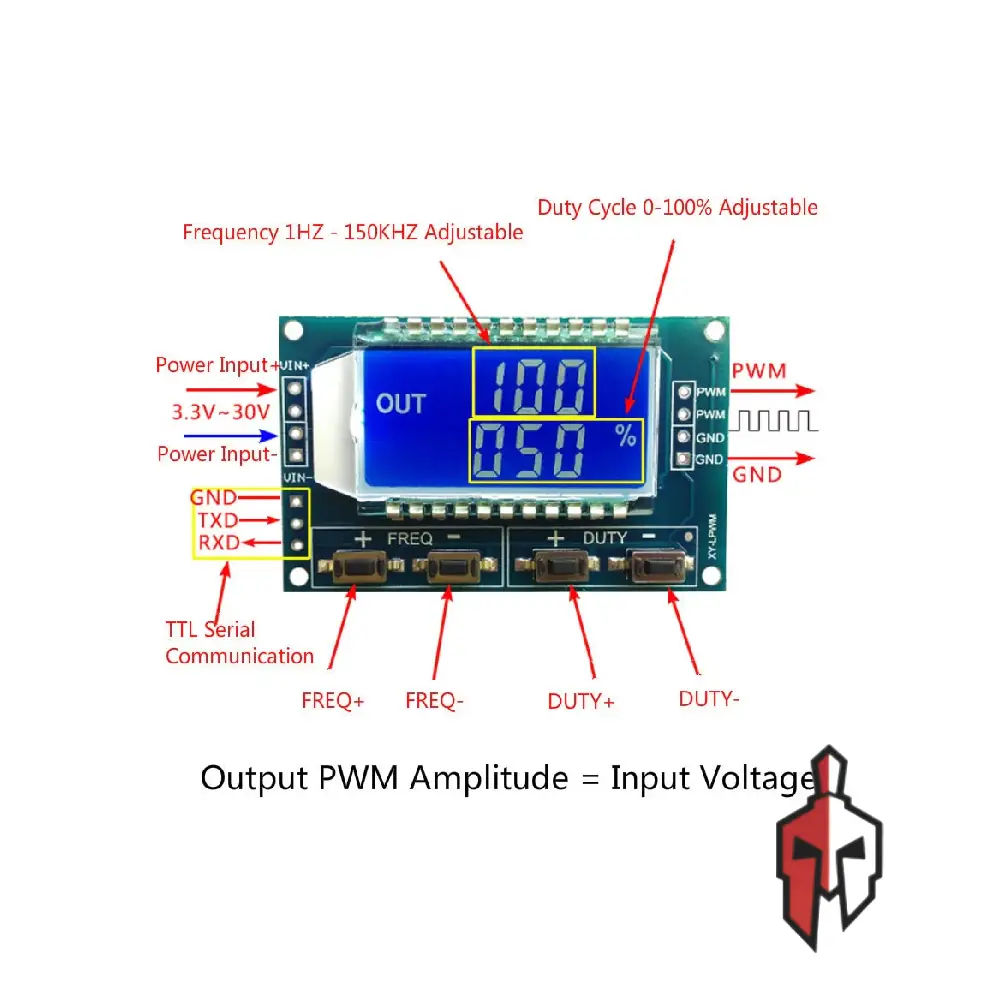

• Control Interface : 4 push buttons
• Frequency Display Format : 1 = 1Hz, 100 = 100Hz, 1.00 = 1KHz, 10.0 = 10KHz, 1.0.0 = 100KHz
• Applications : Motor control, LED dimming, servo testing, signal generation
