Connectors
JST XH, PH, ZH and SMP connectors, Dupont crimp terminals, screw terminal blocks, DC jacks, banana plugs, GX16 aviation plugs and threaded inserts.
-
Brass Threaded Insert Knurled M3
Quick Info :
- Thread: M3 (0.5mm pitch)
- Material: Knurled brass
- Type: Heat-set threaded insert
- Lengths: 3mm, 4mm, 5mm, 7mm
- Outer Diameter: 4.2mm, 4.5mm, 5mm
- Use: 3D printing, plastic enclosures, robotics assemblies
Price range: Rs 10.00 through Rs 20.00Brass Threaded Insert Knurled M3
Price range: Rs 10.00 through Rs 20.00 -
JST XH 2.54mm Connector Cable and Base 2 – 12 Pin
Quick Info:
- Type: JST-XH 2.54mm
- Pins: 2P – 12P options
- Cable: 200mm, 26AWG
- Current: 3A per pin
- Includes: Male + Female pair
Price range: Rs 25.00 through Rs 90.00 -
JST SMP Connector Pair 2, 3 and 4 Pin
Quick Info :
- Spacing : 2.5mm pitch Pin spacing
- Current rating: 3A AC, DC max
-
Voltage rating: 250V AC, DC max
- Length : 15 cm
Price range: Rs 40.00 through Rs 80.00JST SMP Connector Pair 2, 3 and 4 Pin
Price range: Rs 40.00 through Rs 80.00 -
Wire Terminal Ferrule Crimp Connectors
Quick Info:
- Available Sizes : E0508, E1508, E6012
- Available Colours : Red, Black, Blue, Yellow, White
- Sleeve Material : Tin-Plated Copper
- Insulation : Nylon (PA)
- Application : Terminal Blocks & Control Panels
Price range: Rs 3.00 through Rs 5.00 -
Terminal Connector 2 Pin
Quick Info :
- Voltage rating (UL/IEC): 250/250 V
- Current rating (UL/IEC): 16/24 A
- Contact resistance: 20 mΩ
- Wire gauge: 22-14 AWG
- Wire strip length: 5 mm
Rs 30.00Terminal Connector 2 Pin
Rs 30.00 -
-
Price range: Rs 40.00 through Rs 80.00DC Jack Connector Pair
Price range: Rs 40.00 through Rs 80.00 -
JST PH 2.0mm Connector Cable & Base 2 – 6 Pin
Quick Info:
- Type: JST-PH 2.0 mm
- Pins: 2P – 6P options
- Cable: 200 mm, 26 AWG
- Current: 1 A per pin
- Includes: Male + Female pair
Price range: Rs 20.00 through Rs 60.00JST PH 2.0mm Connector Cable & Base 2 – 6 Pin
Price range: Rs 20.00 through Rs 60.00 -
-
XLR Jack Pair GX16 16mm 2 – 8 Pin
Quick Info :
- Model : GX16
- Pin Options : 2 / 3 / 4 / 5 / 6 / 7 / 8 (as selected)
- Shell Diameter : 16mm
- Connector Type : Circular screw-lock pair
- Rated Current : 5A per pin
- Rated Voltage : 250V AC / 300V DC
- Shell Material : Zinc alloy metal
- Pair Includes : Male plug + Female panel socket
Price range: Rs 240.00 through Rs 340.00 -
Terminal Connector 3 Pin
Quick Info :
- Voltage rating (UL/IEC): 250/250 V
- Current rating (UL/IEC): 16/24 A
- Contact resistance: 20 mΩ
- Wire gauge: 22-14 AWG
- Wire strip length: 5 mm
Rs 50.00Terminal Connector 3 Pin
Rs 50.00 -
-
-
-
XLR Jack Pair GX12 12mm 2 – 6 Pin
Quick Info :
- Model : GX12
- Pin Options : 2 / 3 / 4 / 5 / 6 (as selected)
- Shell Diameter : 12mm
- Connector Type : Circular screw-lock pair
- Rated Current : 5A per pin
- Rated Voltage : 250V AC / 300V DC
- Withstand Voltage : 1500V AC
- Contact Resistance : ≤ 5mΩ
- Shell Material : Zinc alloy metal
- Pair Includes : Male plug + Female panel socket
Price range: Rs 270.00 through Rs 310.00 -
XT60 Connector Pair Male & Female
Quick Info:
- Connector Type : XT60 (Male & Female pair)
- Rated Current : 60A continuous
- Contact Material : Gold-plated copper
- Housing Material : Nylon (high-temperature resistant)
- Locking Mechanism : Self-locking, polarity-keyed
Rs 200.00XT60 Connector Pair Male & Female
Rs 200.00 -
Spade Crimp Terminal Lug Male Female Insulation
Quick Info:
- Terminal Type : Insulated Spade Crimp Connector
- Available Sizes : 2.8mm / 4.8mm / 6.3mm
- Contents : Male + Female + Insulated Sleeves
- Material : Copper with Insulated Sleeve
Rs 10.00 -

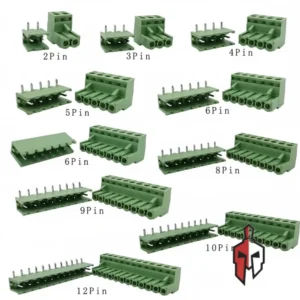

Right Angle PCB Terminal Connector 5.08mm
Quick Info :
- Pitch : 5.08mm
- Pin Count : 2 to 12
- Connection : Screw Clamp, Pluggable
- Rated Current : 10A
- Rated Voltage : 250V AC/DC
- Wire Range : 24 to 12 AWG (0.2 to 2.5mm²)
Price range: Rs 40.00 through Rs 190.00Right Angle PCB Terminal Connector 5.08mm
Price range: Rs 40.00 through Rs 190.00
Connectors for boards, batteries and panels: JST connector sets with cables and bases, Dupont female crimp terminals and housings, ferrules, 2 and 3 pin screw terminal blocks (straight and right angle), DC barrel jacks, banana plugs and sockets, GX16 aviation connectors and brass threaded inserts for 3D-printed parts.
Matching a connector
Count the pins and measure the pitch: Dupont and JST XH are 2.54 mm, JST PH is 2.0 mm and JST ZH is 1.5 mm. Crimp terminals need a crimping tool sized for them. For anything carrying more than a couple of amps, choose screw terminals or a connector rated for the current. Ready-made leads are in Cables.
