ZVS Driver Boost High Voltage Generator 300W

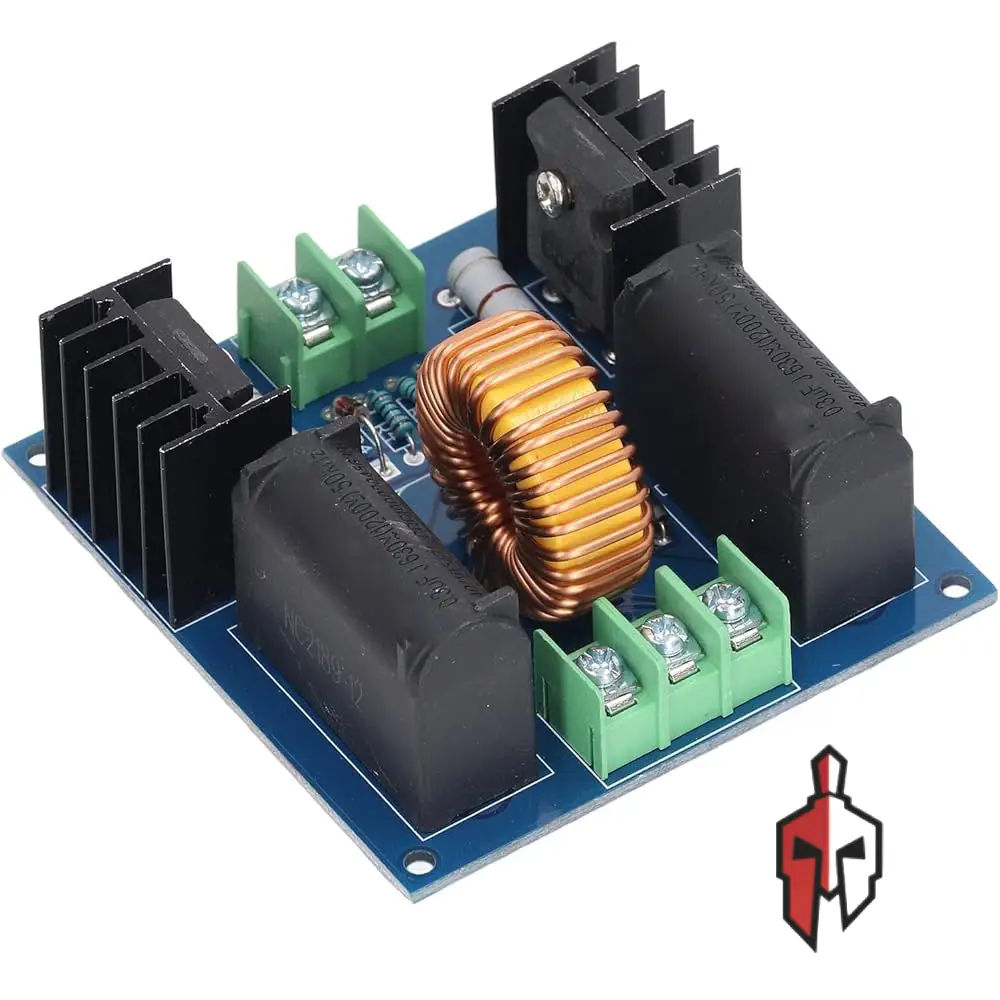

The 300W ZVS (Zero Voltage Switching) Driver is a high-performance boost converter and high voltage generator module designed for driving Tesla coils, induction heating applications, and high-voltage experiments. This advanced flyback driver board utilizes ZVS technology to minimize switching losses, delivering high power output with remarkably low heat generation and maximum efficiency.

Capable of generating output voltages up to 20,000V from a 24V input, this module provides an impressive voltage multiplication factor of approximately 800-1000 times the input voltage. The self-adaptive operating frequency (30-50kHz) automatically adjusts for optimal performance with various loads and coils. The robust FR4 double-layer glass fiber PCB construction with full-bottom tin plating ensures excellent heat dissipation and current handling capability for sustained high-power operation.

The circuit features a large 30mm magnetic ring inductor with 1.2mm pure copper wire for stable performance and minimal losses. All resistors are precision five-loop tight resistors, and high-current sections utilize bottom soldering for superior conductivity. The module can produce visible electric arcs ranging from 1-5cm depending on input voltage and current. Power can be supplied via switching power supply, lead-acid battery, lithium battery pack, or rectified transformer output with minimum 10,000µF filter capacitor. Perfect for DIY Tesla coil projects, Jacob’s Ladder demonstrations, Marx generator experiments, induction heating applications, high-voltage plasma generation, educational physics demonstrations, and hobbyist electronics experimentation. Suitable for enthusiasts, students, researchers, and makers exploring high-voltage electronics.
