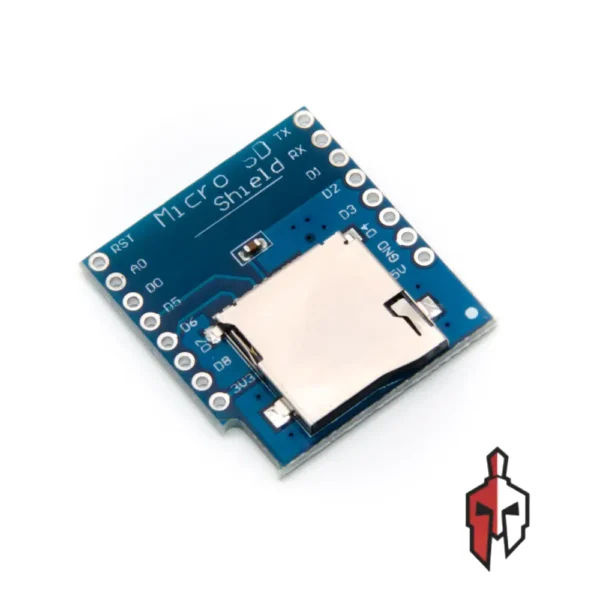

WeMos D1 Mini Micro SD Shield

The Wemos D1 Mini Micro SD Shield is an essential add-on board for your WeMos D1 Mini-based projects, providing a simple and efficient way to add data logging and storage capabilities. This shield features a micro SD card slot that communicates with the D1 Mini via the SPI interface, allowing you to easily read and write data. The shield is compatible with the standard Arduino SD card library and supports micro SD cards up to 32GB (FAT32 format). With its plug-and-play design and included pin headers, you can quickly stack it on top of your D1 Mini board, making it a perfect solution for IoT data loggers, file servers, and other projects that require expandable storage in a compact form factor.

Specification :

• Compatibility: WeMos D1 Mini & D1 Mini Pro
• Interface: SPI
• Pinout: D5 (CLK), D6 (MISO), D7 (MOSI), D8 (CS)
• Operating Voltage: 3.3V DC
• Supported Cards: Micro SD cards (up to 32GB, FAT32)
• Dimensions: 28 x 25 x 5 mm
• Weight: 5 g
• Features: Data logging, file storage, stackable design
