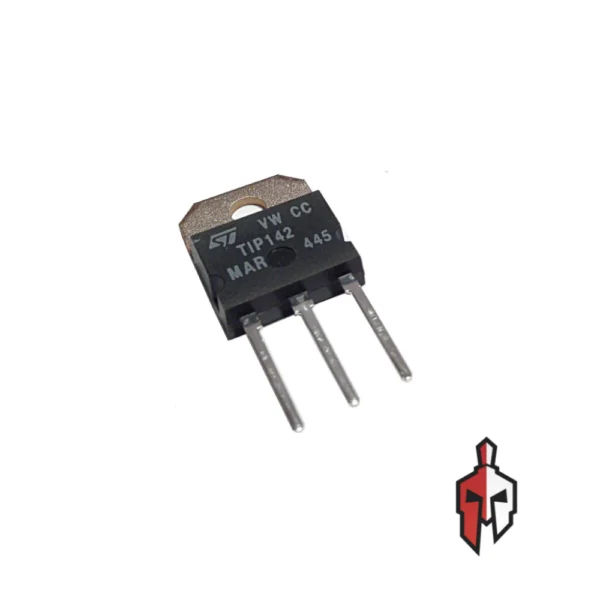

TIP142 NPN Transistor

The TIP142 is a high-power, high-gain NPN Darlington transistor designed for applications requiring high current and voltage handling, along with minimal drive current. It’s commonly used in motor control, power amplifiers, voltage regulators, and high-current switching applications.

Specification :

• Transistor Type : NPN Darlington Power Transistor
• Collector-Emitter Voltage :  100 V
• Collector-Base Voltage  : 100 V
• Emitter-Base Voltage  : 5 V
• Continuous Collector Current :  10 A
• Peak Collector Current  : 15 A
• Power Dissipation  : 125 W
• DC Current Gain  : 1000 (min)
