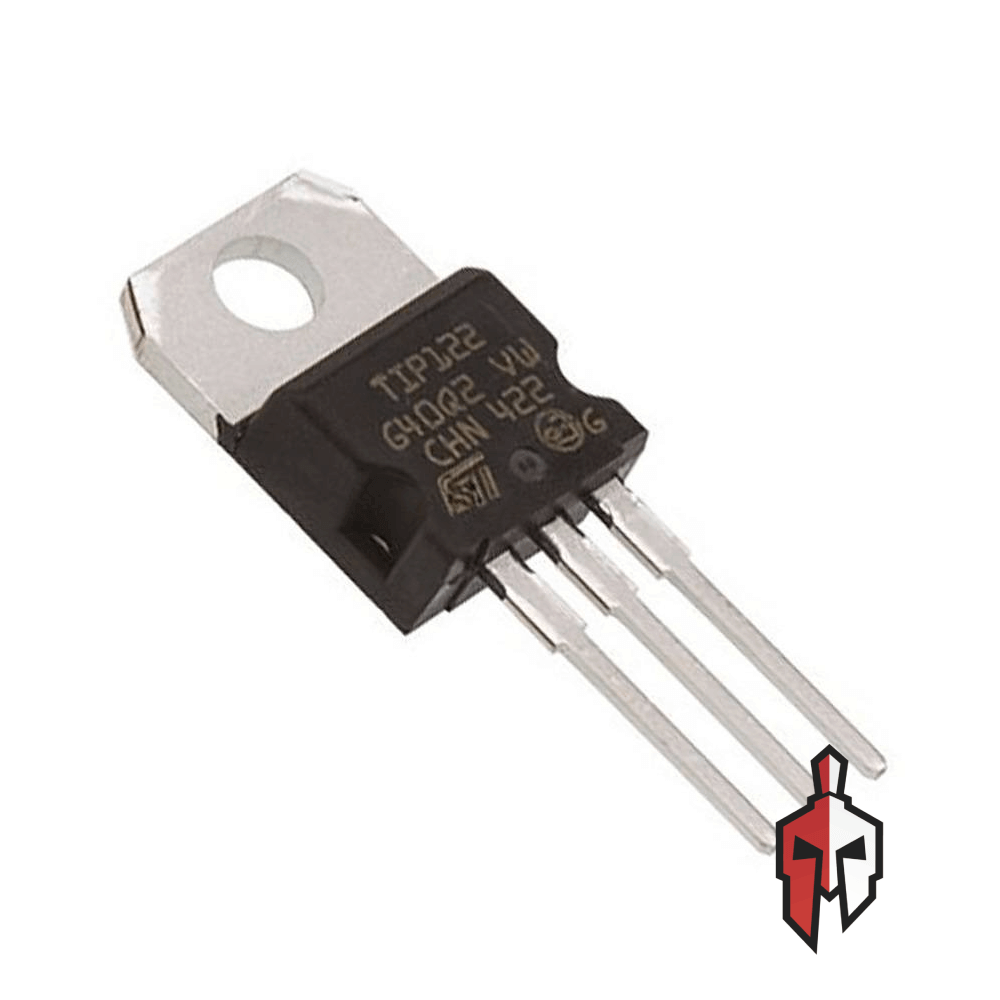

TIP122 NPN Epitaxial Darlington Transistor

Specifications :

• Transistor Type : NPN – Darlington
• Current – Collector (Ic) (Max) : 5 A
• Voltage – Collector Emitter Breakdown (Max) : 100 V
• Vce Saturation (Max) @ Ib, Ic : 4V @ 20mA, 5A
• Current – Collector Cutoff (Max) : 500µA
• DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 3A, 3V
• Power – Max : 2 W
• Operating Temperature : -65°C ~ 150°C (TJ)
• Mounting Type : Through Hole
• Package / Case : TO-220-3
