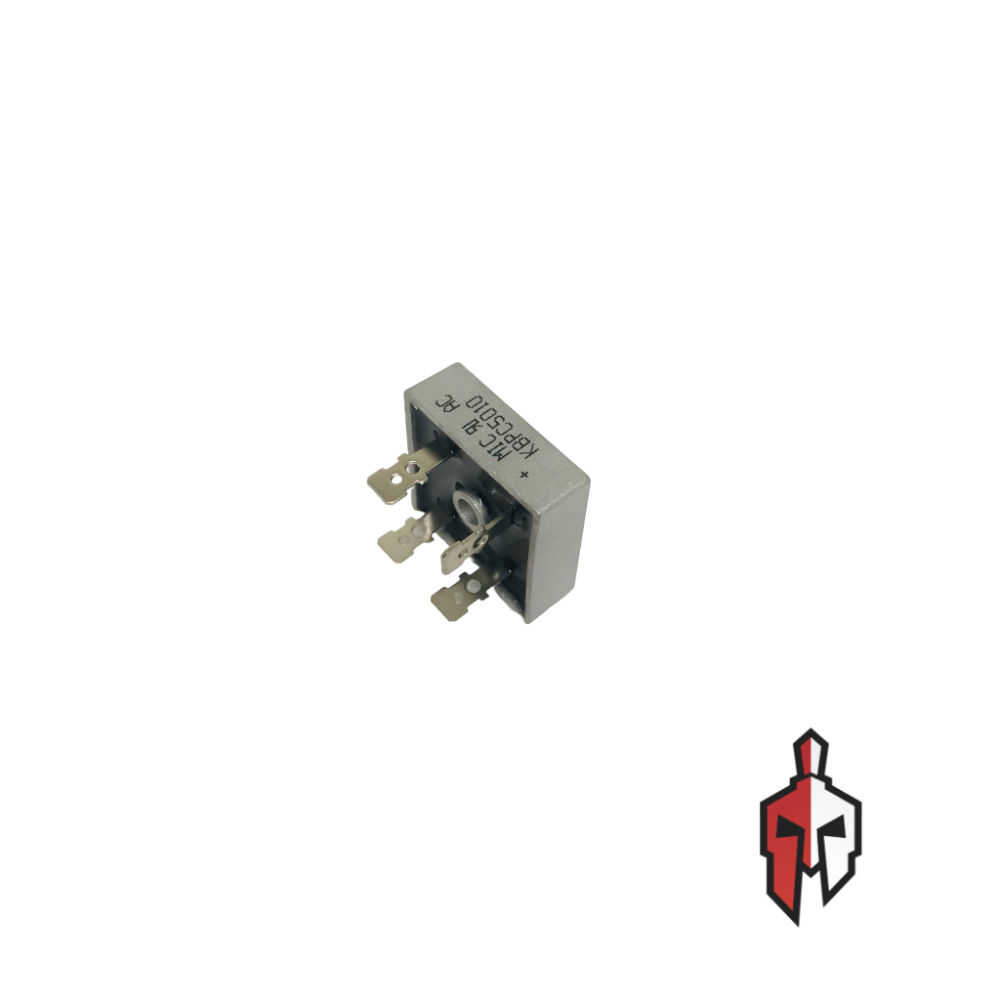

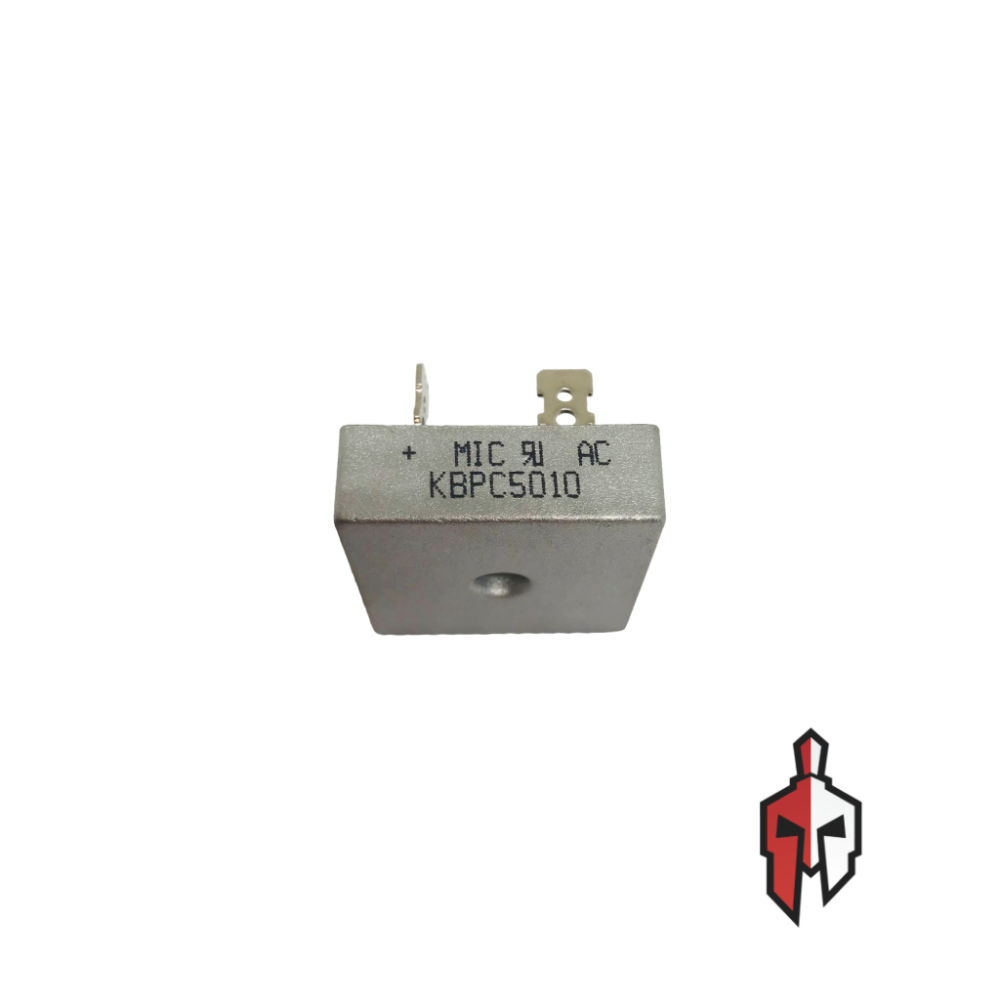

Bridge Rectifier KBPC5010

The KBPC5010 is a high-power, single-phase bridge rectifier designed for applications requiring high efficiency and reliability. Encased in a robust metal housing with a high surge current capability, it efficiently converts AC input into DC output.

Specification :

• Part Number : KBPC5010
• Package Type : Metal Case Bridge Rectifier
• Maximum Repetitive Peak Reverse Voltage (V_RRM) : 1000V
• Maximum RMS Voltage (V_RMS) : 700V
• Maximum Average Forward Current (I_O) : 50A
• Peak Forward Surge Current (I_FSM) : 400A (8.3ms, single half-sine wave)
• Operating Temperature Range : -55°C to +150°C
